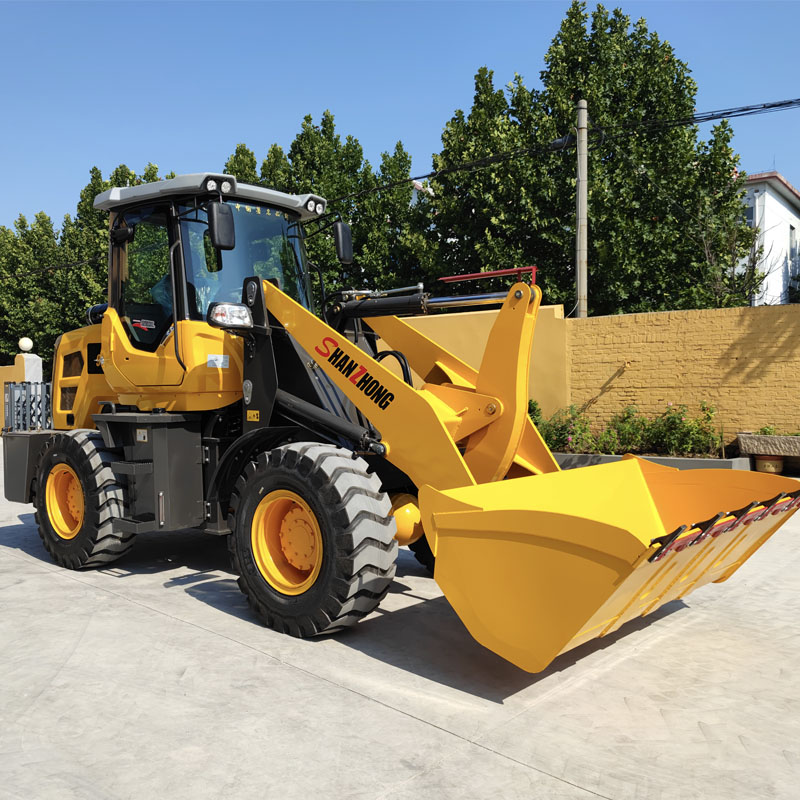

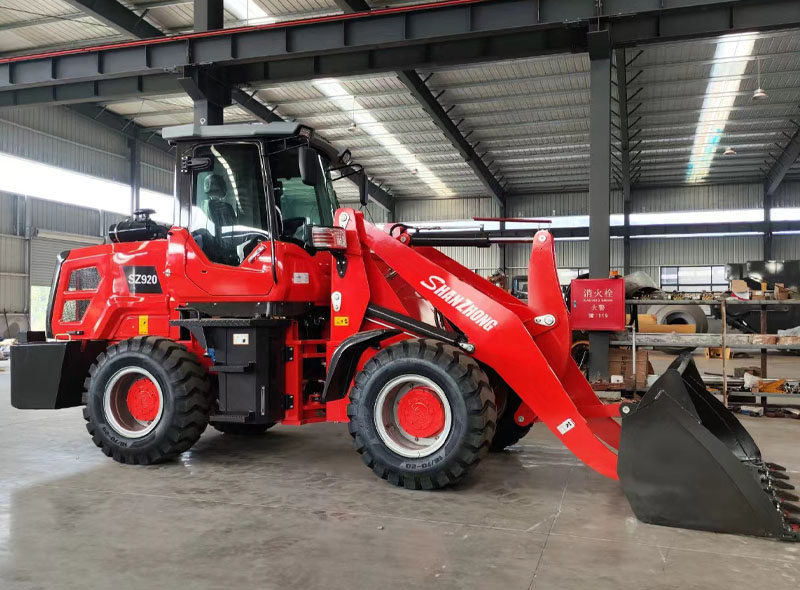

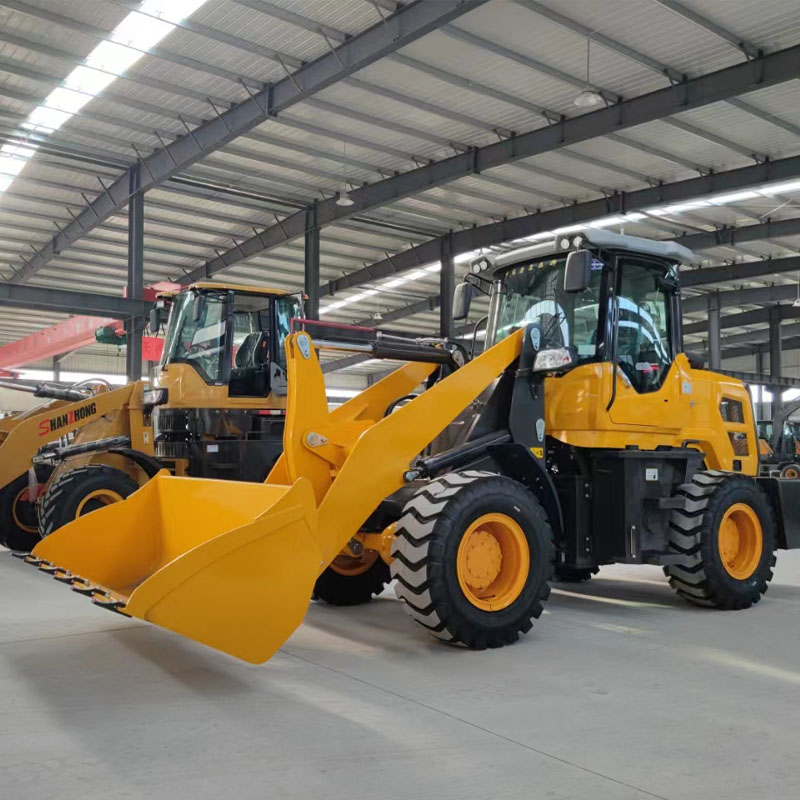

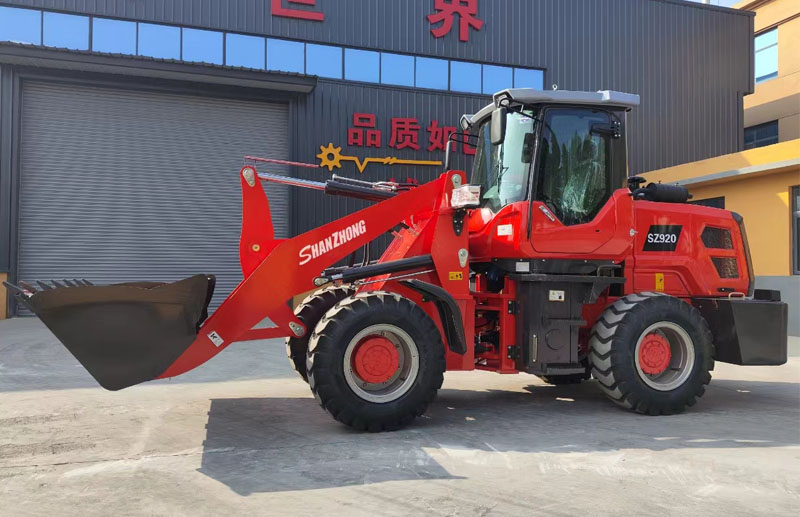

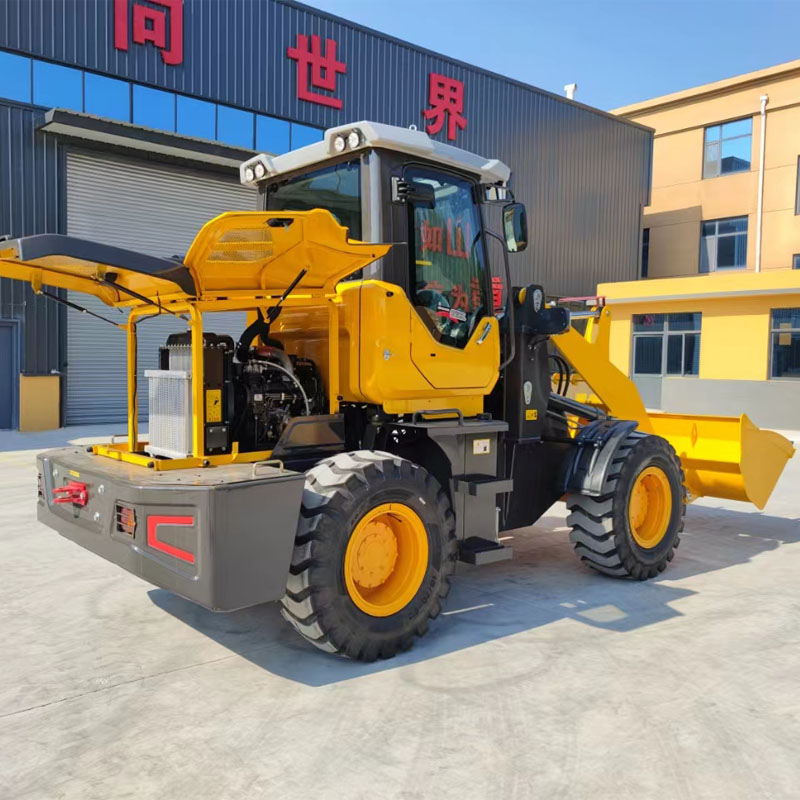

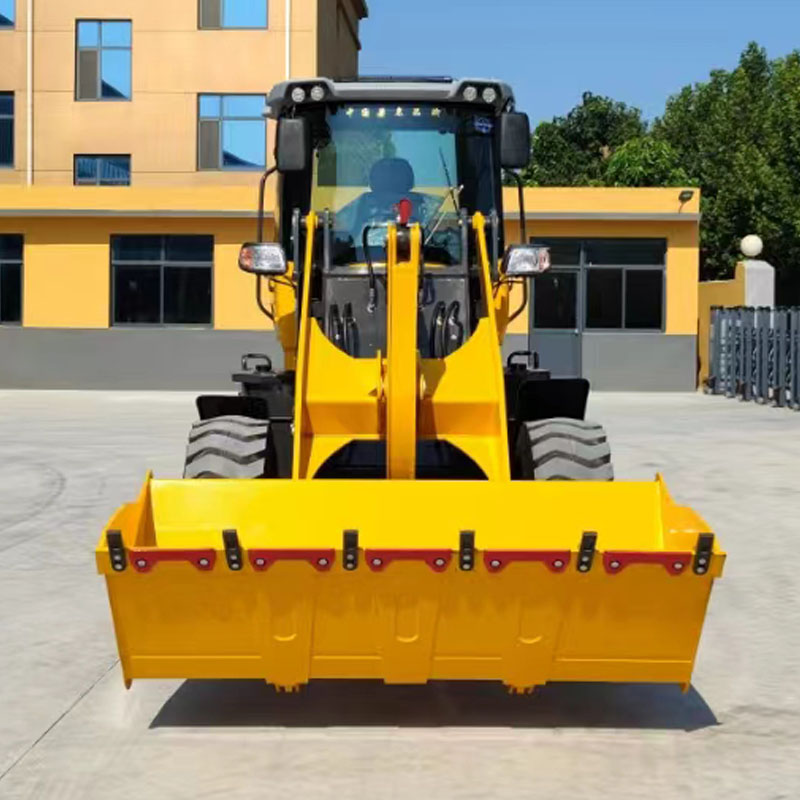

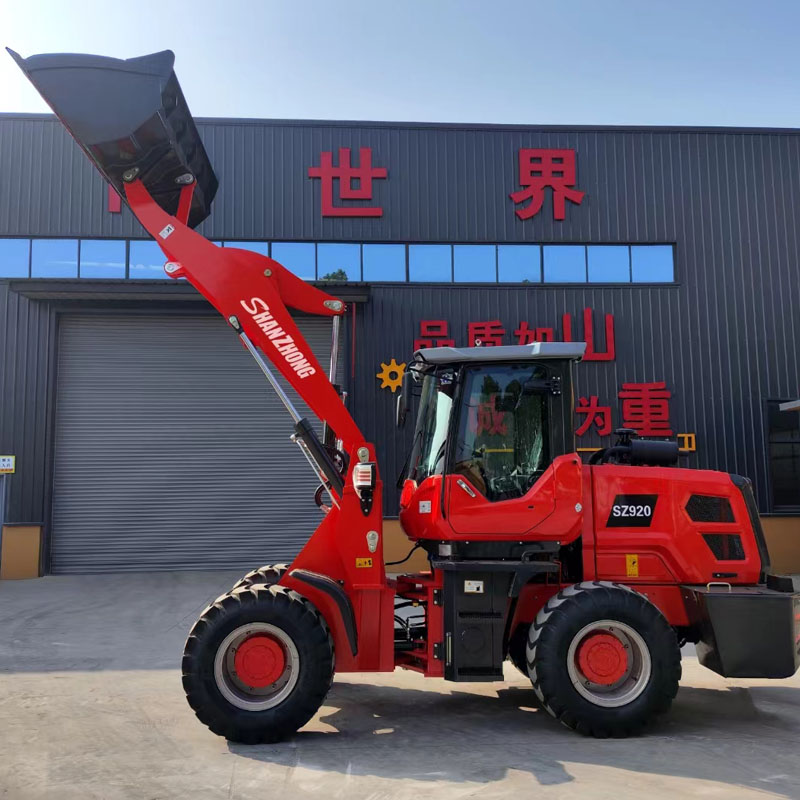

Wheel Loader SZ920
2-ton series wheel loader
Operating weight: 7600 kg
Rated load: 2000 kg
Rated power: 76 kW
Bucket capacity: 1.0-1.6 m³
Travel speed (forward/reverse): 30 km/h
These wheel loaders can be transported in containers.
We will drive loaders, excavators, forklifts, road rollers, etc., into containers and secure them with steel cables and wedges.
We will protect every part of the above equipment to prevent any collisions. Qingdao Port is 400 km away from our factory, and it is the best loading port choice for Shandong.
If you wish to load cargo at other ports, please inform the seller before delivery. If you wish to load by train, please inform the seller before delivery.
Wheel Loader SZ920
--Compact size, suitable for narrower workspaces.
--Comfortable driving, equipped with soft seats.

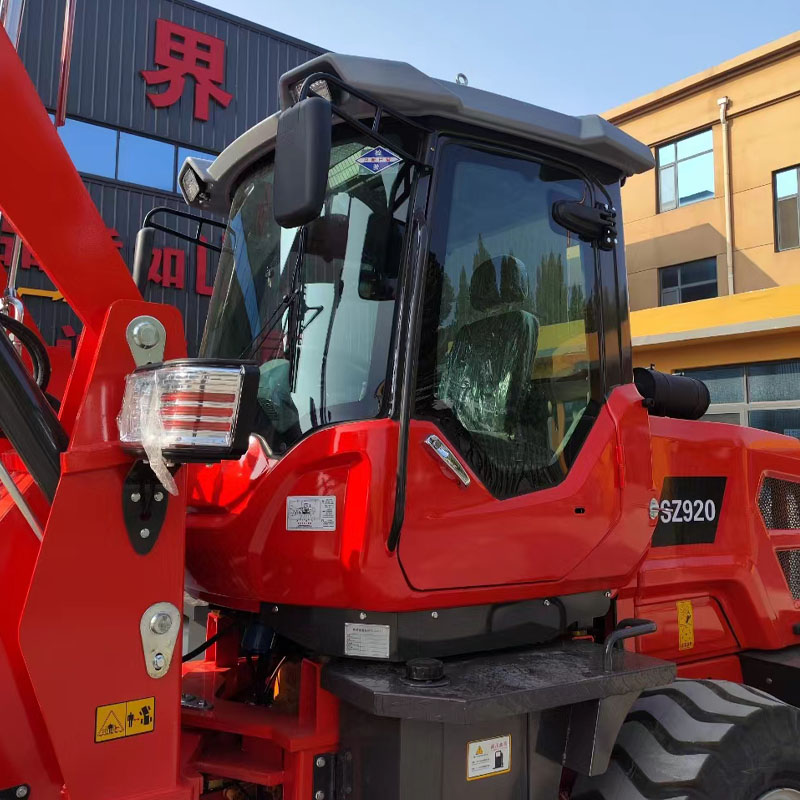

--European style, cabin with a wide view, streamlined rear hood combined with rear fenders.
--Attachments, quick coupler, and bucket are standard, and a wide range of other attachments are available to meet various working needs.
--CE certification, all products are approved by CE certification.
--OEM acceptable, color can be painted: red, green, blue, yellow, or customized. Logo can be designed.
Wheel Loader SZ920
These wheel loaders can be transported in containers.
We will drive loaders, excavators, forklifts, road rollers, etc., into containers and secure them with steel cables and wedges.
We will protect every part of the above equipment to prevent any collisions. Qingdao Port is 400 km away from our factory, and it is the best loading port choice for Shandong.
If you wish to load cargo at other ports, please inform the seller before delivery. If you wish to load by train, please inform the seller before delivery.
Performance |
1 |
nominal load |
2000 kg |
2 |
total weight |
5600 kg |
|
3 |
Mechanical operating weight |
7600 kg |
|
4 |
bucket capacity |
1.0-1.6m3 |
|
5 |
maximum traction force |
58KN |
|
6 |
maximum breakout force |
62KN |
|
7 |
maximum gradeability |
30° |
|
8 |

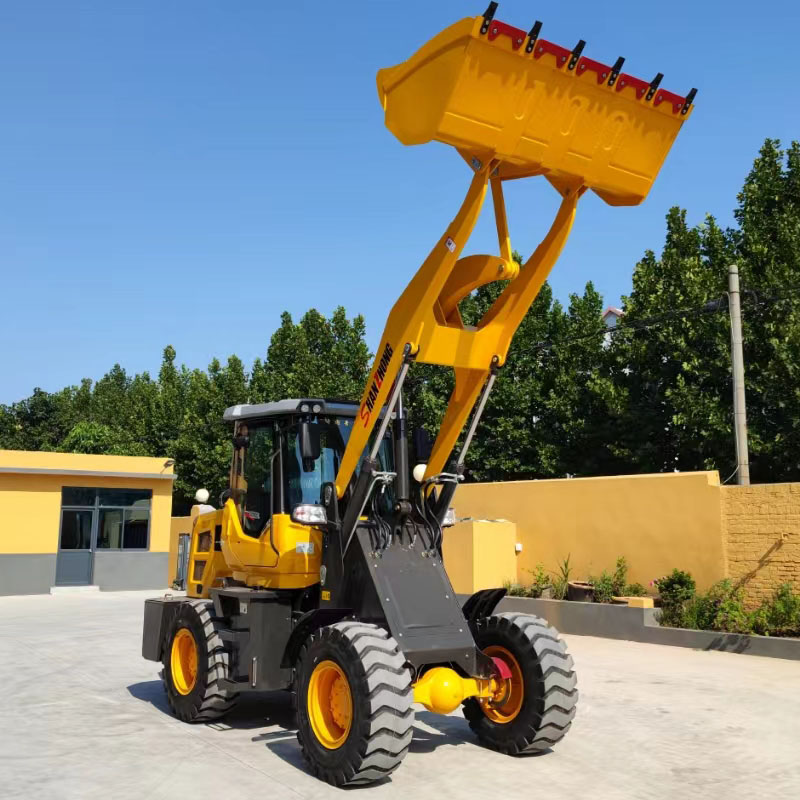

maximum dump height |
3800 mm |
|
9 |
maximum dump reach |
1006 mm |
|
10 |
Overall dimensions (L×W×H) |
6500*2200*2980mm |
|
11 |
Minimum turning radius |
5097 mm |
|
Engine |
12 |
Model |
YN38GBZ |
13 |
Type |
||
14 |
Rated power |
76 kW—2200 rpm |
|
Transmission system |
15 |
hydrotransformer |
YJ315-X |
16 |
gearbox mode |
Drive shaft, normally engaged, direct drive |
|
17 |
gears |
4 forward 2 reverse |
|
18 |
maximum speed |
30 km/h |
|
Drive axles |
19 |
main reducing spiral |
first-stage bevel gear, reducer |
20 |
deceleration mode |
single-stage planetary reducer |
|
21 |
wheelbase (mm) |
2350 mm |
|
22 |
wheel track |
1200 mm |
|
23 |
ground clearance |
400 mm |
|
steering system |
24 |
steering type |
articulated frame, hydraulic power steering |
hydraulic system |
25 |
system operating pressure |
16.0 MPa |
26 |
boom lift time |
4.6 s |
|
27 |
total time |
8.2±0.5 s |
|
Brake system |
28 |
Service brake |
Pneumatically assisted disc brake on 4 wheels |
29 |
Parking brake |
Manual disc brake |
|
Tire |
30 |
Type specification |
16/70R20 |
31 |
Front tire pressure |
0.4 MPa |
|
32 |
rear tire pressure |
0.35 MPa |
|
