Backhoe Loader with 4 Wheel Steering

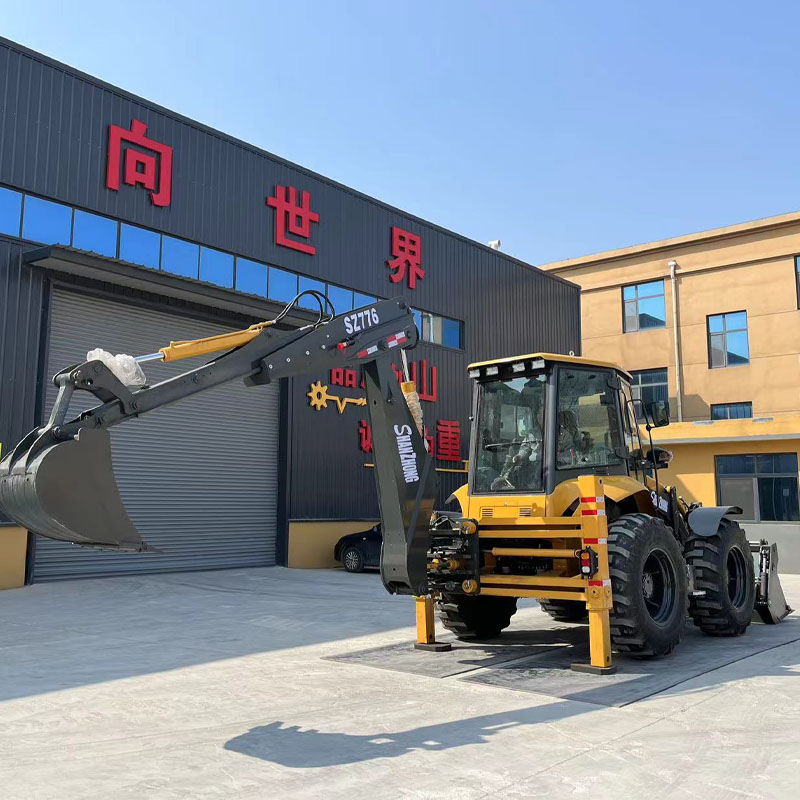

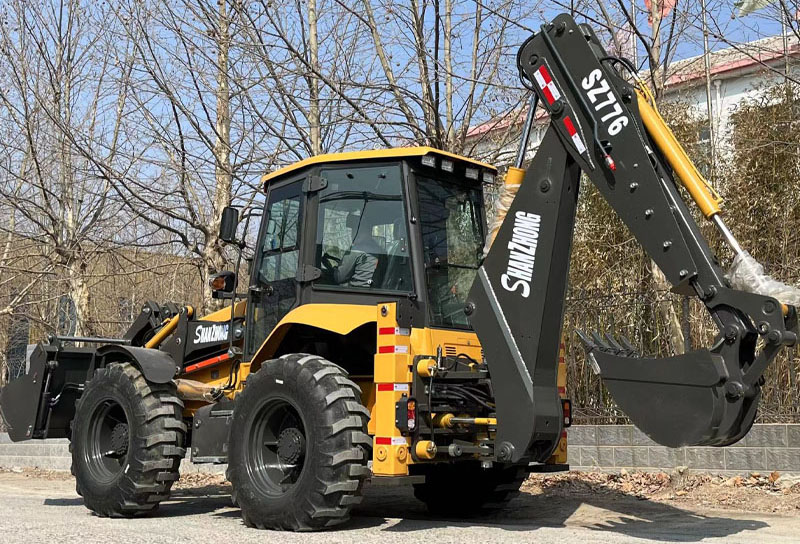

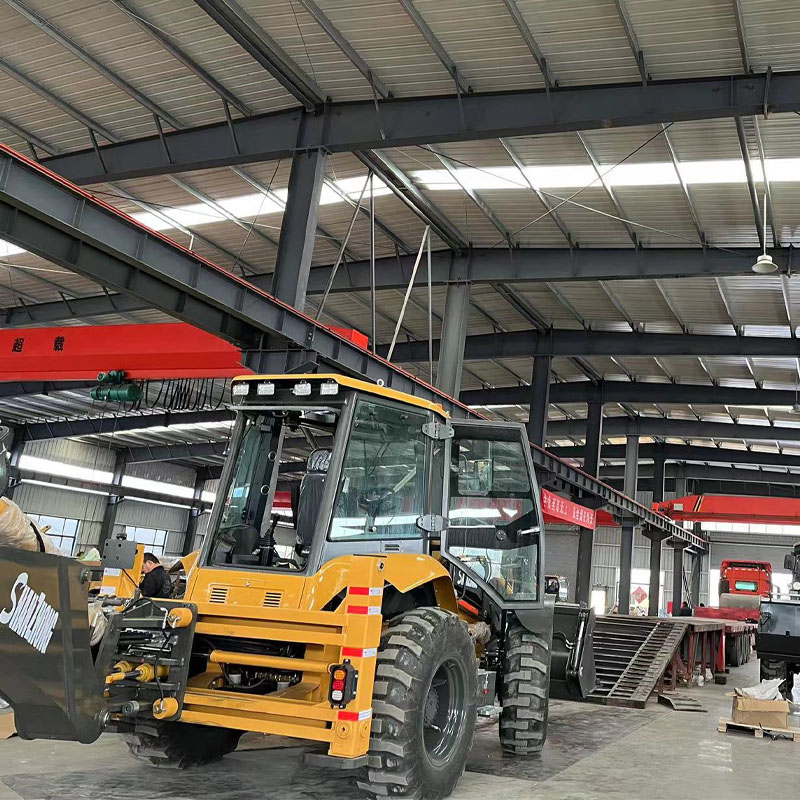

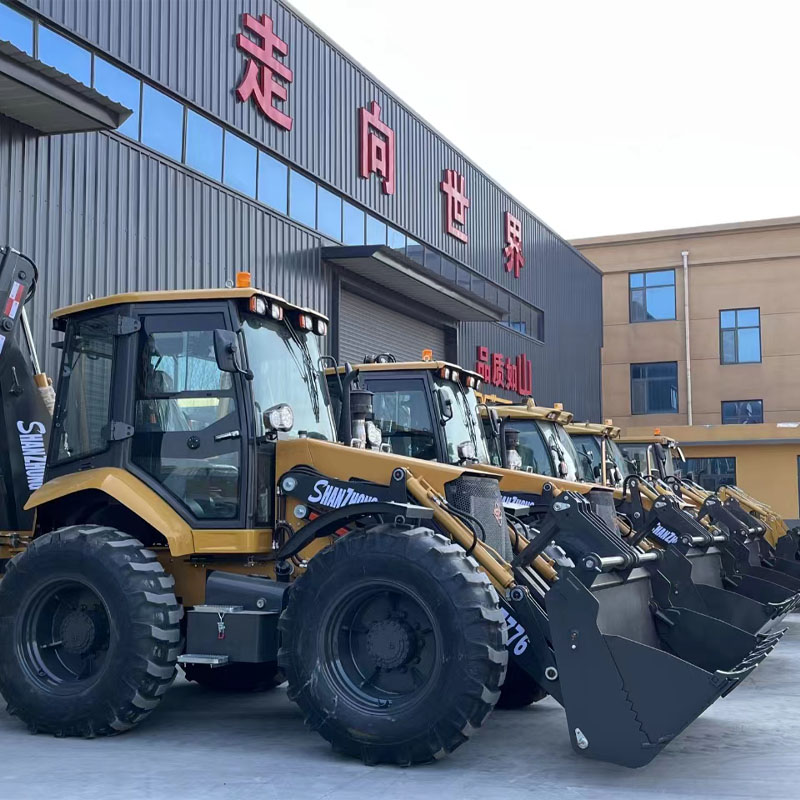

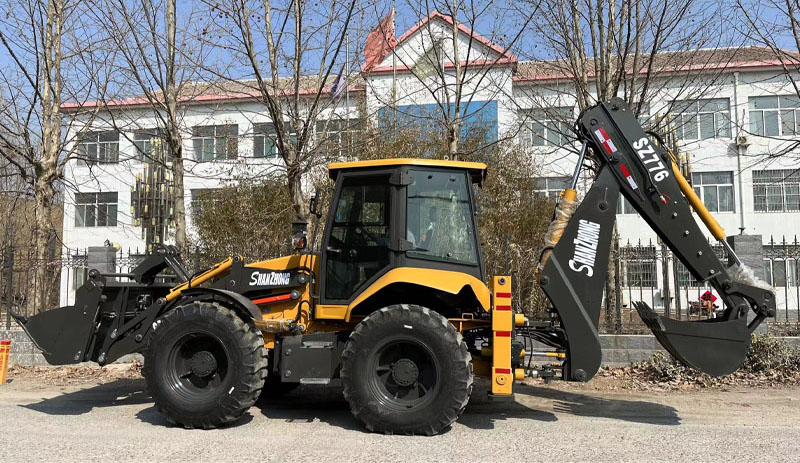

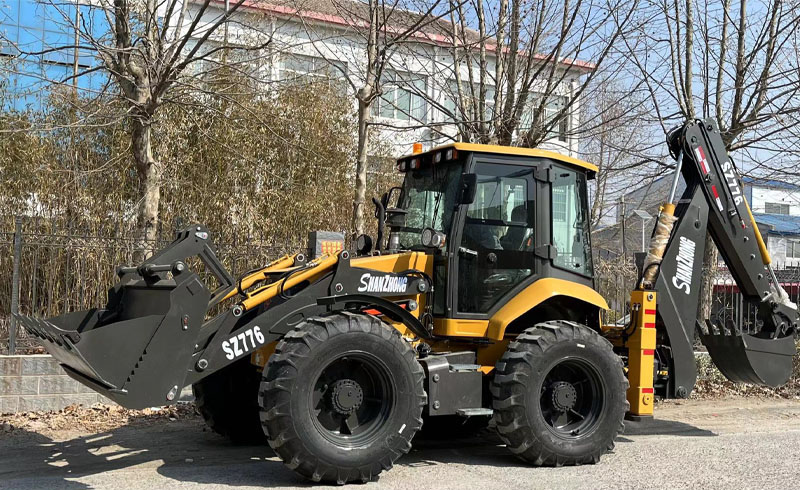

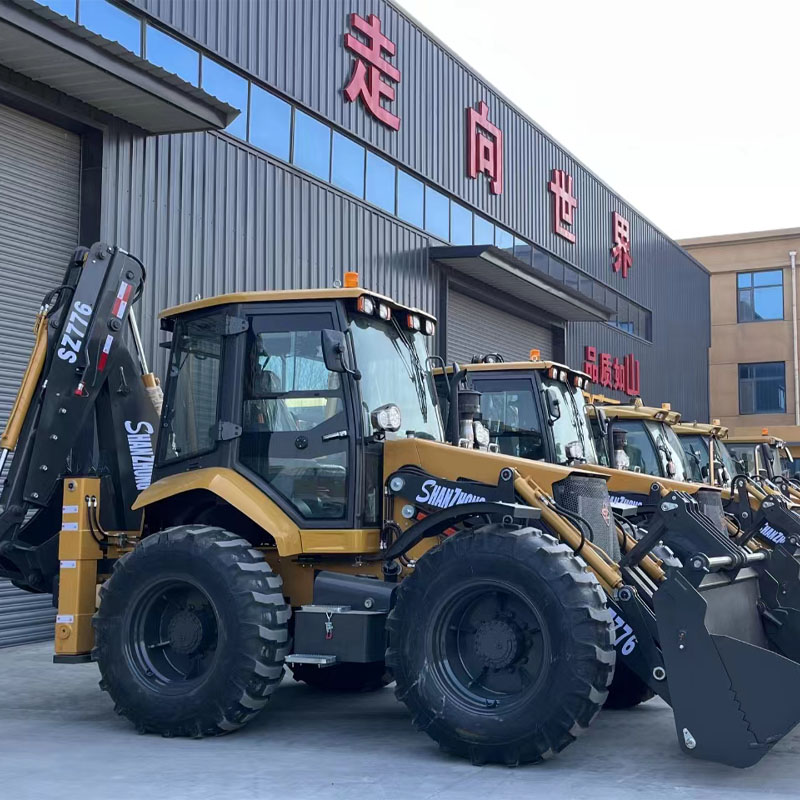

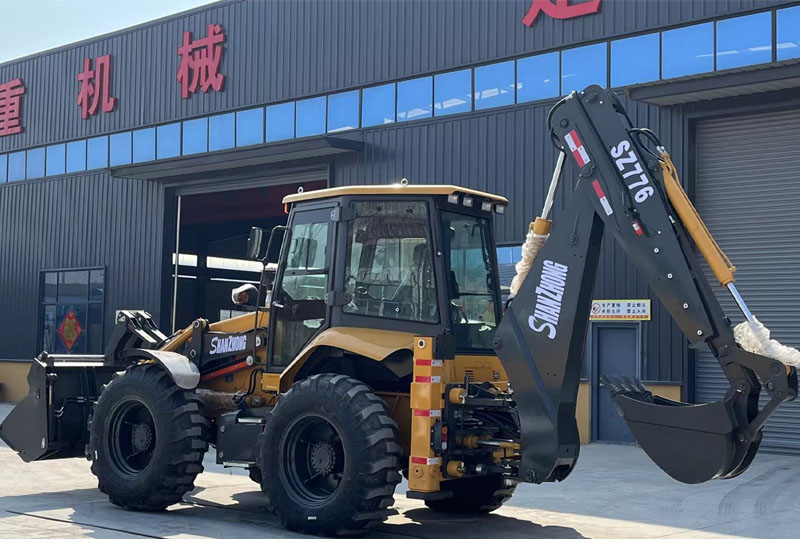

SZ776 Backhoe loader
Total operating weight:9600 kg
Load capacity:2500kg
Power:75kw

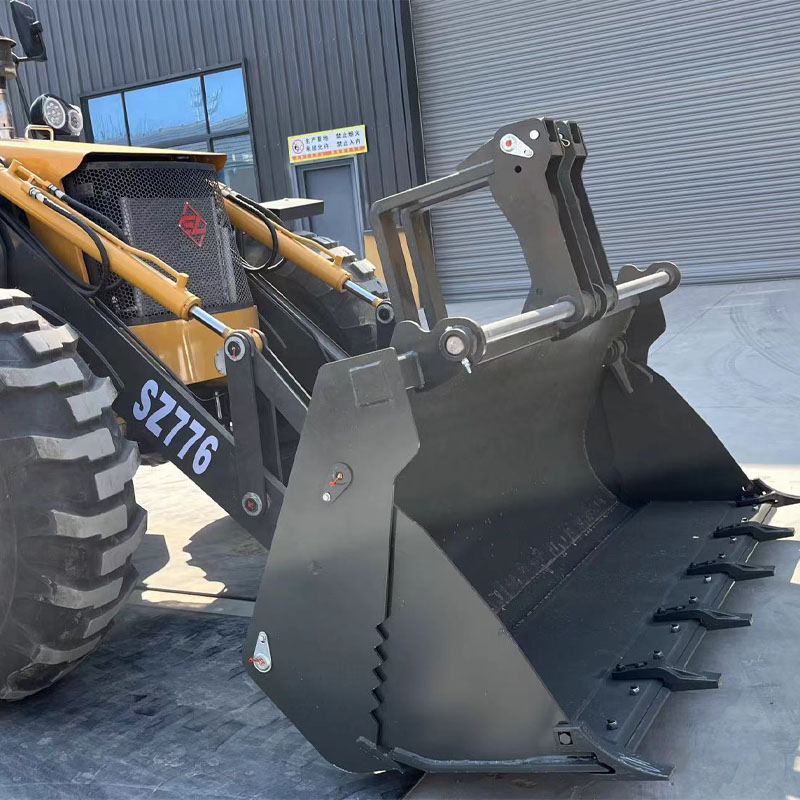

Bucket capacity: 1.2 m³
Excavator bucket capacity:0.3m³
Backhoe Loader with 4 Wheel Steering
Travel speed (forward/backward) 30 km/h
1) 4WD, 4 wheel steering, crab walk, one-button rear wheel release, small turning radius.
2) All-in-one frame, simple operation, high adaptability.
3) Strong power, excellent off-road performance, adapt to bad road conditions.
4) Cabin with panoramic view, built-in LCD display, standard air conditioning with cold and warm operation.
5) Hanging-type top racks, shock-absorbing seats, humanized design, more convenient operation.
6) Customized production can be provided to meet the needs of special construction and bidding.
Backhoe Loader S776 Product Description
1) 4WD, 4 wheel steering, crab walk, one-button rear wheel reset, small turning radius.
2) All-in-one frame, simple operation, high adaptability.
3) Strong power, excellent off-road performance, adapt to bad road conditions.
4) Cabin with panoramic view, built-in LCD display, standard air conditioning with cold and warm operation.
5) Hanging-type top racks, shock-absorbing seats, humanized design, more convenient operation.
6) Customized production can be provided to meet the needs of special construction and bidding.
Shanzhong's SZ776 backhoe loader is a versatile construction equipment that can be used for excavation, lifting, loading and transportation.
All-wheel drive, four wheels spin, crab walk, one-button rear wheel reset and tight turning radius.
This equipment is a combination of a loader and an excavator, meaning it can perform a variety of tasks. It is more suitable for working in small spaces, convenient, adaptable and provides an increase in productivity of more than 30%. It is fully equipped with all the functions of small excavators and loaders.
A range of attachments can be used for a variety of construction jobs to suit different work situations.
A backhoe loader is a versatile and powerful machine that will become an indispensable assistant for your business. This unit combines the functions of an excavator and a loader, which allows you to perform a wide range of tasks on the construction site, as well as during road and utility work.
Shanzhong SZ776 backhoe loader is the ideal choice for any task!
If you are looking for reliable and powerful equipment to handle a variety of construction or landscaping tasks, the Shanzhong SZ776 backhoe loader is an excellent choice.
One of the main advantages of the SZ776 is its power and performance. Thanks to its powerful engine, this backhoe loader can handle any task quickly and efficiently, be it digging, moving heavy loads or loading materials. This allows you to reduce the time it takes to complete work, which in turn reduces personnel costs and reduces project implementation time.
Main Performance Parameter of SZ776 Backhoe Loader |
|||
Total operating weight |
9600 kg |
Final reducer |
Single stage final reducer |
Transport dimension |
Rated loader axle |
4/18.5t |
|
mm L*W*H |
6700×2500×3240 |
Transmission system |
|
Wheelbase |
2250 mm |
Torque converter |
|
Wheel tread |
2050 mm |
Model |
YJ300 |
Bucket capacity |
1.2m3 |
Type |
Single stage Three elements |
Breakthrough Power |
38KN |
Max. Efficiency |
84.4% |
Load capacity |
2500 kg |
Inlet pressure |
0.4 MPa—0.55 MPa |
Bucket dump height |
2750 mm |
Output pressure |
1.2 MPa—1.5 MPa |
Bucket dump distance |
1025 mm |
Cooling method |
Oil pressure circulation in the cooling system |
Max. Digging depth |
4000/5300 mm |
Transmission |
|
Excavator capacity |
0.3 m3 |
Type |
Fixed shaft power transmission |
Digging depth |
4085 mm |
Clutch oil pressure |
1373 kPa—1569 kPa |
Maximum excavation height |
5500/6180 mm |
Maximum unloading height |
3880/4450 mm |
Excavation radius |
5400/6500 mm |
Minimum ground clearance |
270 mm |
Angle of rotation of the excavator-grab |
190o |
Gears |
FourGears forward, FourGears backward |
Max. Traction force |
45kN |
Maximum speed |
30 km/h |
Engine |
Tire |
||
Model |
YC4A105Z-T20 75kW |
Model |
16.9--28 |
Type |
Turbocharged four-stroke |
Front wheel pressure |
0.22 MPa |
Cylinder inner diameter*Stroke |
4-105 |
Rear wheel pressure |
0.22 MPa |
Rated power |
75KW YUCHAI |
Brake system |
|
Rated speed |
2400rpm |
Service brake |
Brake caliper with air over oil |
Min. Fuel consumption |
235g/kWh |
External type |
|
Max. torque |
310 miles |
Self-regulation |
|
Bias |
4.3 l |
Self-balance |
|
Steering system |
Emergency brake |
Operation Power Implementation of brake |
|
Steering device model |
BZZ5-250 |
Manual control of the power end brake |
|
Rotation angle |
±36° |
Hydraulic system |
|
Steering type |
Four-wheel turn, two turn for free transformation. |
Crab walk |
|
Min. turning radius |
5260 mm |
Digging power of excavator-grab |
46.5 kN |
System pressure |
20 MPa |
Dipper's digging power |
31KN |
Axis |
Bucket lifting time |
5.4C |
|
Manufacturer |
sdszzg |
Bucket lowering time |
3.1C |
Main gear type |
Double cut |
Bucket unloading time |
2.0C |
Settings are subject to change without prior notice. |
