Shanzhong self-loading concrete mixer: fully hydraulic drive for efficient on-site concrete production
2026/04/17 17:09

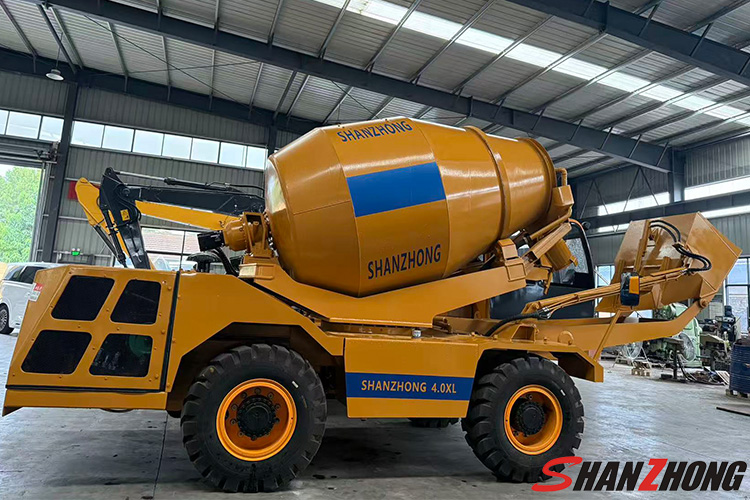

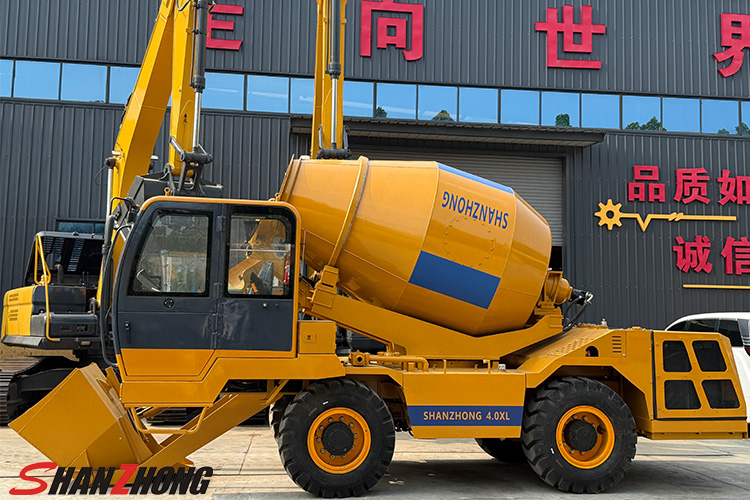

1. Overview of Shanzhong Self-Loading Concrete Mixer
The Shanzhong self-loading concrete mixer is a high-performance construction equipment with full hydraulic drive, designed for modern concrete construction projects. As a primary mobile concrete processing unit, this self-loading concrete mixer integrates multiple construction functions, eliminating the shortcomings of traditional concrete mixers such as limited functionality, low mobility, and narrow application range.
Unlike standard concrete equipment, the Shanzhong mobile self-loading concrete mixer features an integrated design that combines mechanical movement and concrete mixing. It enables autonomous intelligent concrete production without the need for stationary concrete plants.
2. Working Principle of Full Hydraulic Drive
The stable operation of the Shanzhong self-loading concrete mixer is ensured by a well-designed full hydraulic power transmission system. The equipment is equipped with a hydraulic system driven by the engine, including two independent hydraulic circuits to perform the functions of travel and mixing, respectively.
The travel system operates on the following principle: the engine drives the travel hydraulic pump, which transfers power to the travel hydraulic motor. The motor, in turn, drives the gearbox, ensuring smooth and stable movement of the equipment. For the mixing mode, the engine activates a special mixing hydraulic pump, which starts the mixing hydraulic motor and ensures uniform rotation of the mixing drum.
This fully hydraulic drive design gives the equipment high adaptability to loads. It operates stably and mixes concrete effectively on soft and complex terrain construction sites of any type.
3. Comprehensive functions and operational advantages
The Shanzhong self-loading concrete mixer fully replicates all key functions of a stationary concrete plant. The equipment performs automatic raw material loading, precise component weighing, mixture pumping, uniform mixing, mobile movement, targeted discharge of ready-mixed concrete, and automatic cleaning of working components.
As a multifunctional mobile construction equipment, the unit independently completes the full cycle of concrete production, significantly simplifying construction processes. It is ideal for work in remote areas, rural infrastructure construction, road repairs, and small scattered construction projects, effectively solving the problem of concrete mix shortage during on-site construction operations.
