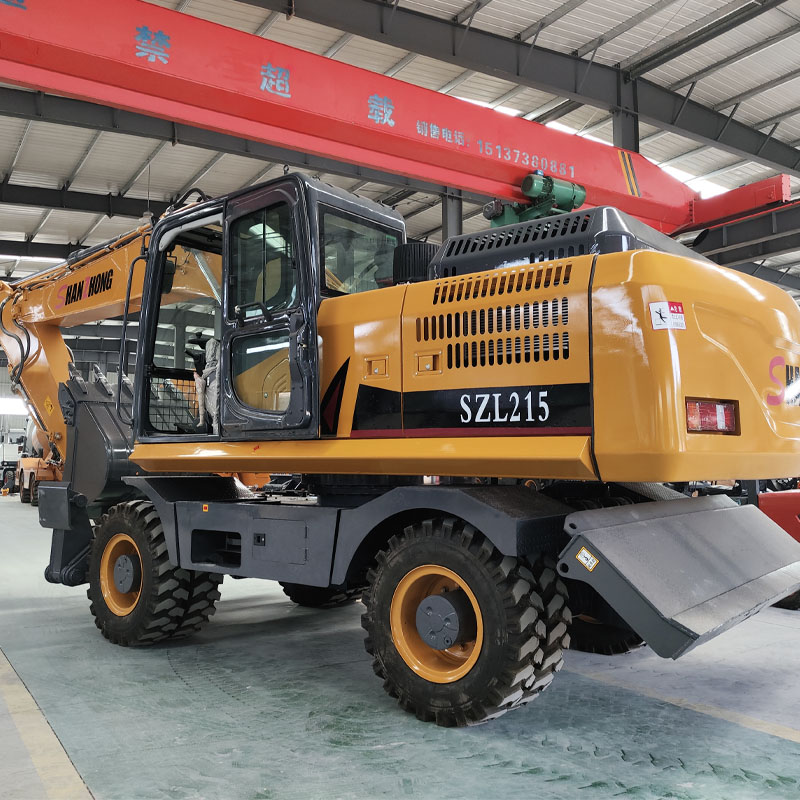

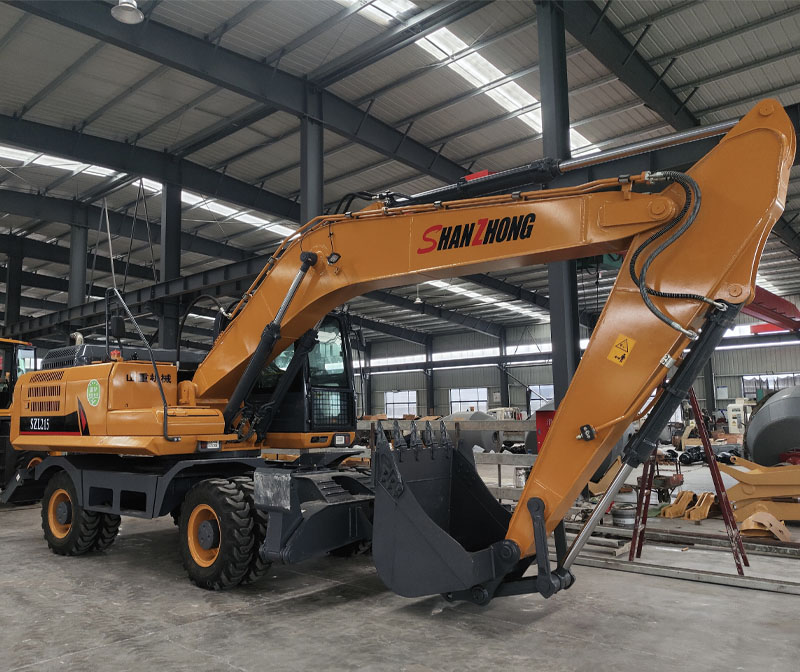

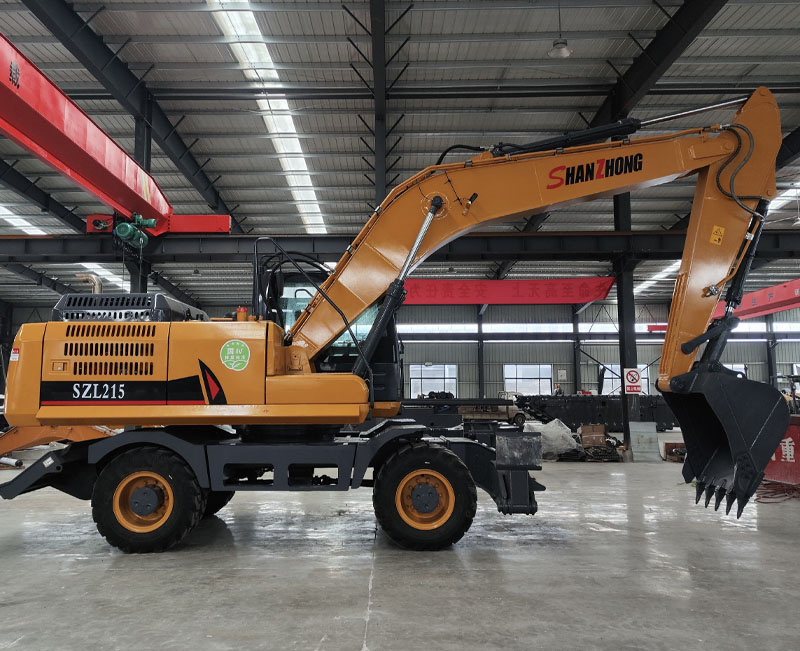

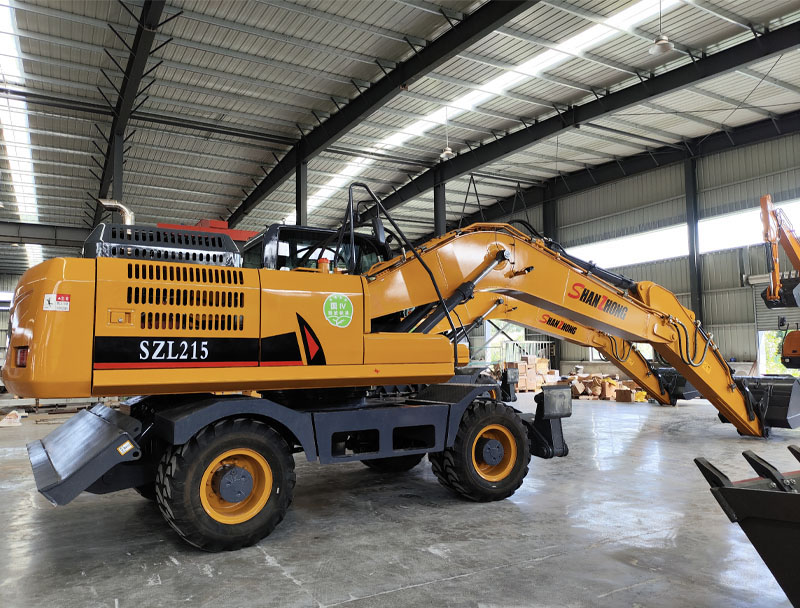

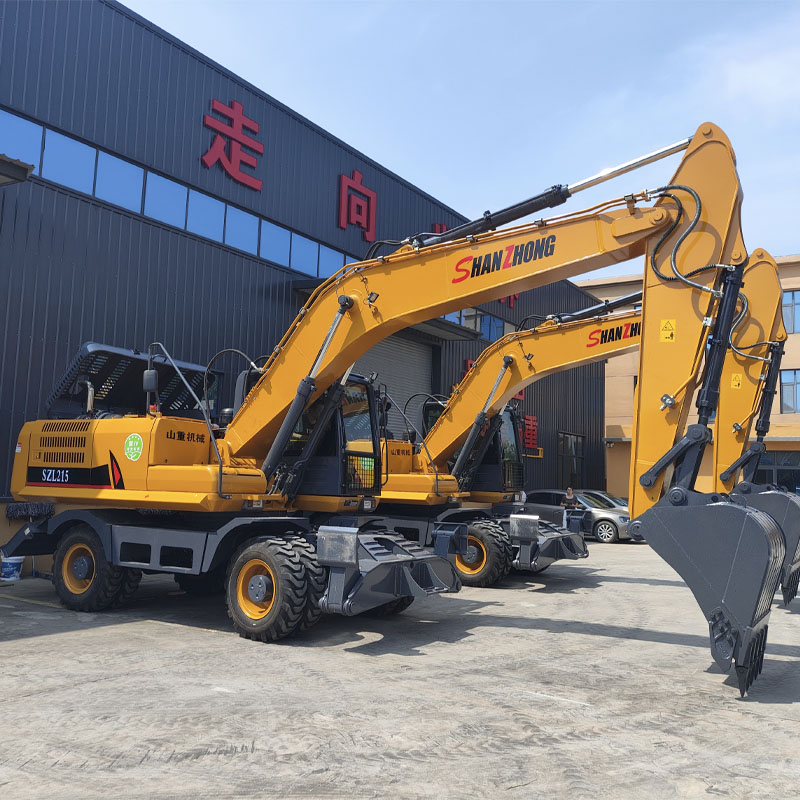

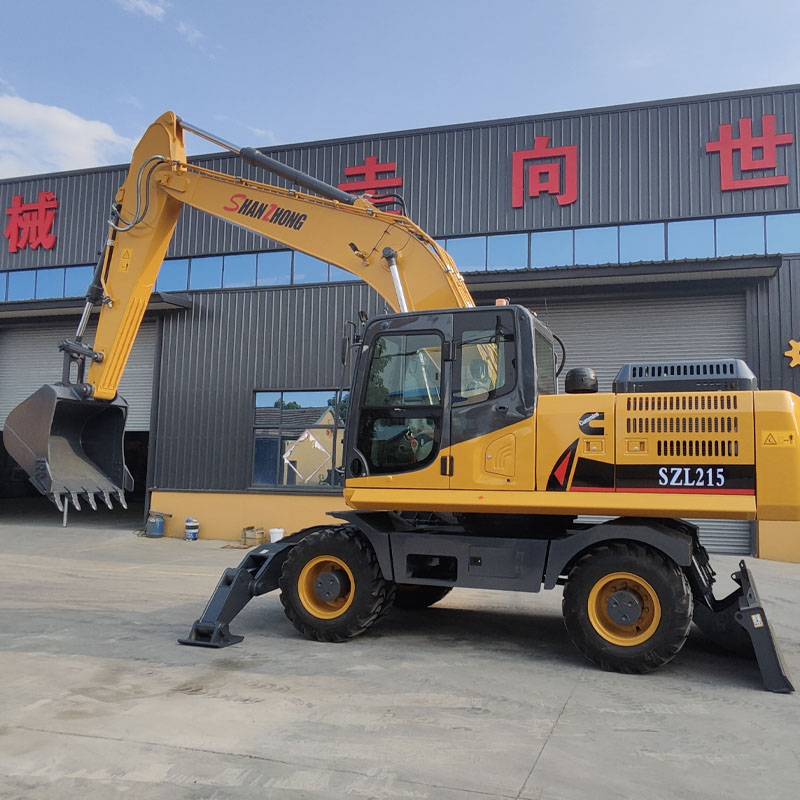

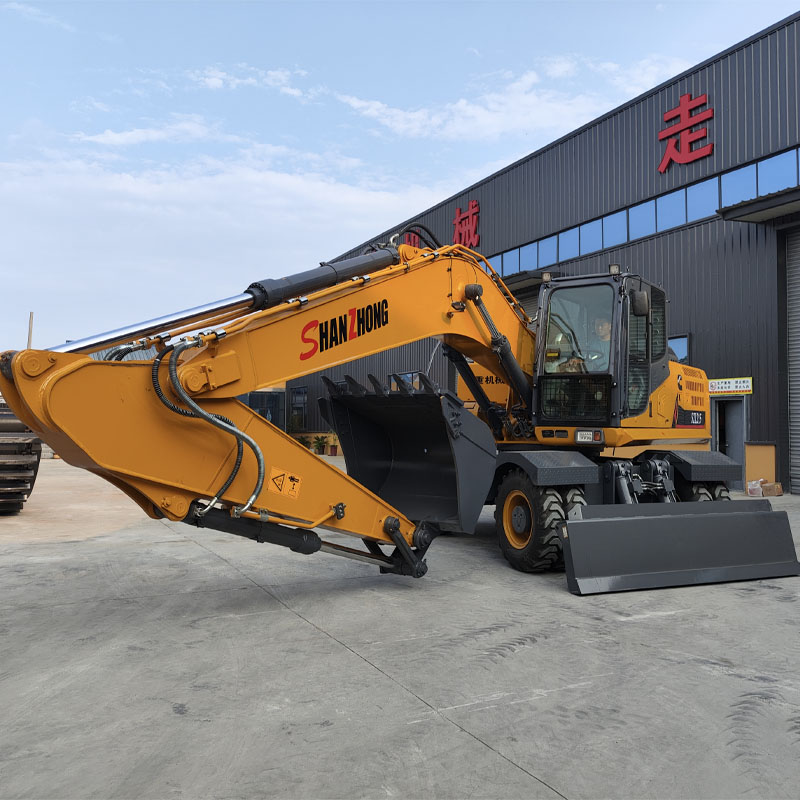

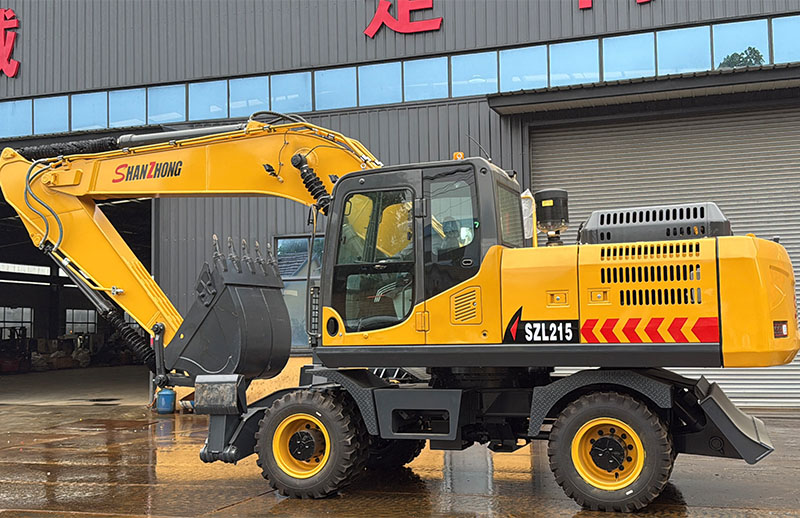

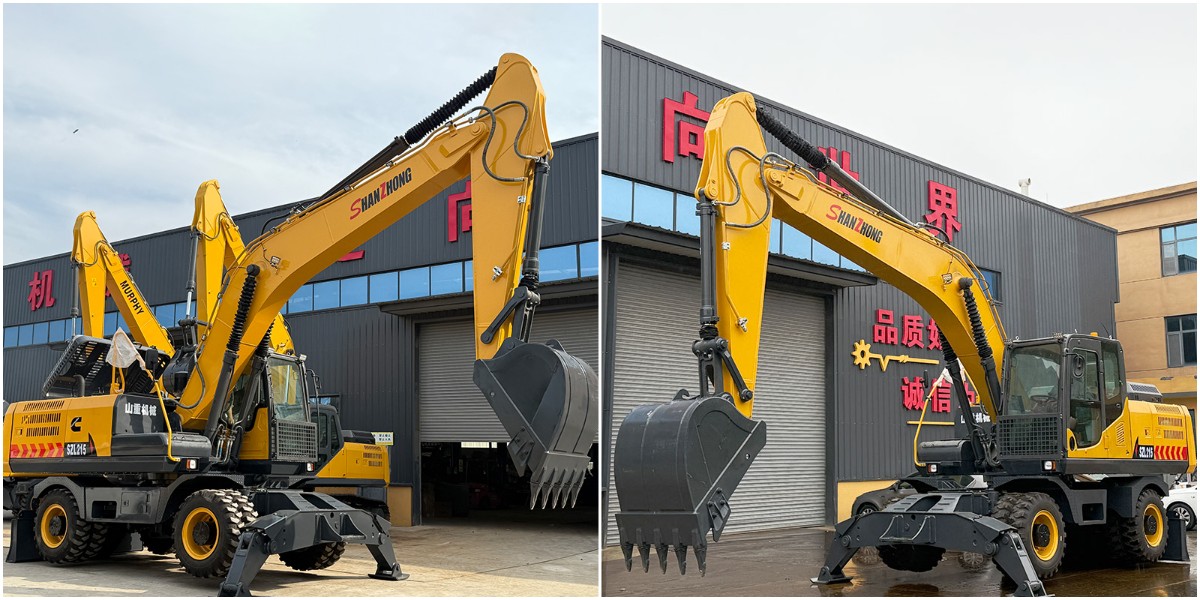

SZL215 Wheel Excavator
Wheeled excavator 21 ton
The overall performance of the hydraulic system is reasonably matched with the engine power output, which greatly reduces energy loss.
Intelligent control, all-wheel drive, all-wheel hydraulic oil brakes and stable driving control system.
Cummins engine with electronic injection, turbocharging and fuel cooling system, high fuel efficiency, low fuel consumption and durability.

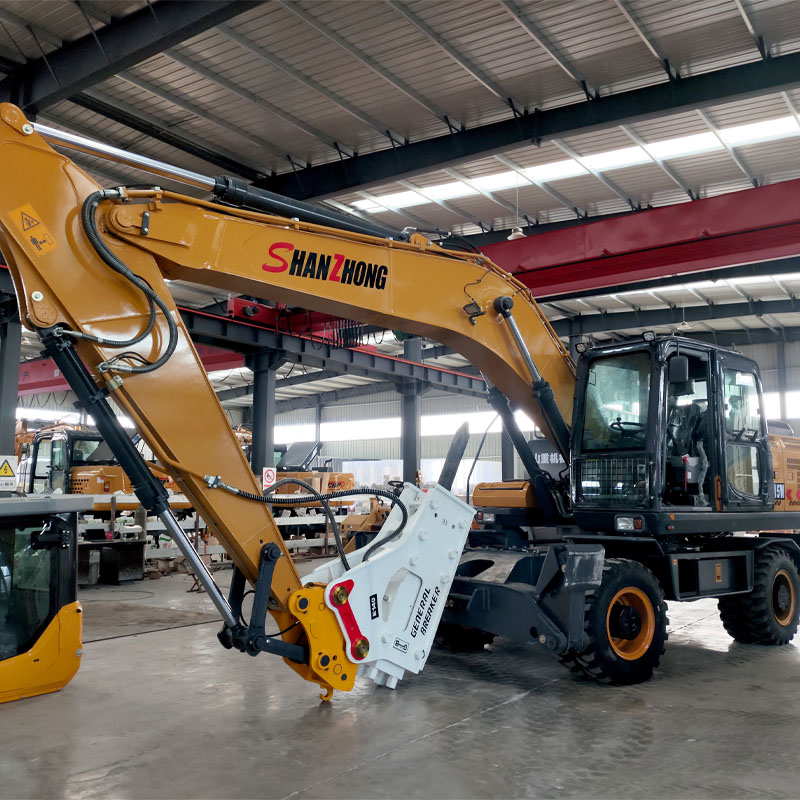

Model SZL215, designed and produced by Shanzhong, is specially designed for the cold climate of Russia, and is a suitable replacement for European earthmoving equipment. It has high indicators of reliability, quality, production parameters, convenience and application. Excavators have a large number of replaceable working equipment (excavator buckets of various powers and shapes, clamshell buckets, hydraulic hammers, rippers, etc.).
Main advantages and features of the SZL215 excavator and standard equipment:
l The hydraulic system is imported from Korea.
l Cummins liquid-cooled, direct-injection, turbocharged engine meets international environmental standards.
l Hydraulic drive system imported from South Korea allows unlimited combinations in the working cycle with high operating precision and minimal power loss. Swing priority traffic distribution ensures optimal performance.
l Standard equipment includes fenders that completely cover the front and rear wheels, protecting the excavator from dust, as well as a windshield. Mud flaps protect machines, other vehicles and people working around the excavator from rocks and debris kicked up by the wheels.
l A new design cabin, a modern interior, more compact and ergonomic control panels, a wide door with an integrated window, a large glass area providing full visibility of the working area, an improved system of air ducts for glass blowing and air ducts for heating/air conditioning the interior. The basic configuration includes a climate control system (heater-air conditioner), audio equipment, and an ergonomic operator's seat with a seat belt.
l Install additional work lights inside the cab hood and work lights on the work equipment to effectively illuminate the work area.

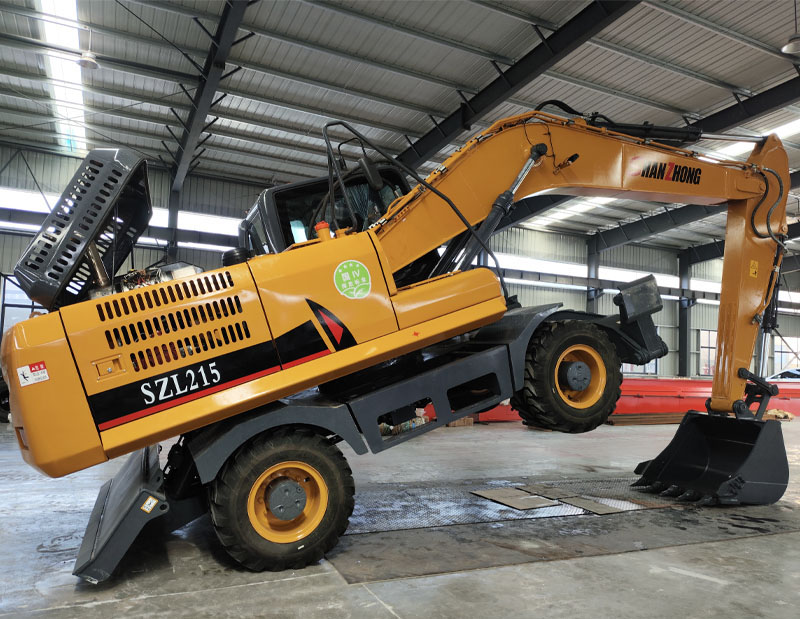

l Hood system providing full access to all components and assemblies, making maintenance convenient and fast. The excavator is characterized by high reliability, extended maintenance intervals, and fuel efficiency.
l Engine preheater.
SZL215 Wheeled Excavator |
|||
Parameters: |
|||
Brand: |
Shanzhong |
Model: |
SZL215 |
Engine: |
Klinders Cummins 6 6BTAA5.9-S178 |
Power: |
133 KW/2200 RPM |
Weight: |
21000kg |
Bucket capacity: |
1.0 m³ |
Size |
|||
Delivery length: |
9700 mm |
Boom length: |
5650 mm |
Delivery height: |
3340 mm |
Arm Length: |
2920 mm |
Overall Width: |
2730 mm |
Bulldozer plate height: |
560 mm |
Turntable width: |
2620 mm |
Bulldozer plate height: |
2600 mm |
Wheelbase: |
2840 mm |
Lifting height of bulldozer plate: |
420 mm |
Tread: |
1980 mm |
Bulldozer support height: |
110 mm |
Radius, center of rotation to rear: |
2750 mm |
Bulldozer support height: |
380 mm |
Counterweight ground clearance: |
1259 mm |
Minimum ground clearance: |
345 mm |
Hydraulic tank capacity: |
215l |
Fuel tank capacity: |
350l |
Working Parameter |
|||
Maximum digging radius: |
9700 mm |
Maximum digging height: |
10600 mm |
Maximum digging depth: |
6350 mm |
Maximum digging height: |
7800 mm |
Hydraulic system pressure: |
34.3 MPa |
Hydraulic flow: |
2*231.7 l/min |
Bucket digging force: |
134/126kn |
Hand digging force: |
99/93kn |
Rotation speed: |
0-12 rpm |
Travel speed: |
28-35km/h |
Climbability: |
≥60% |
