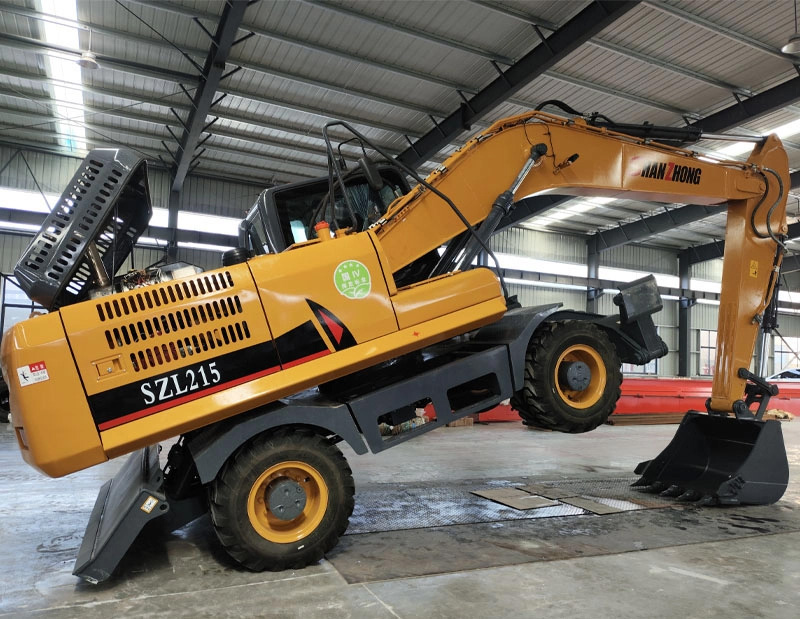

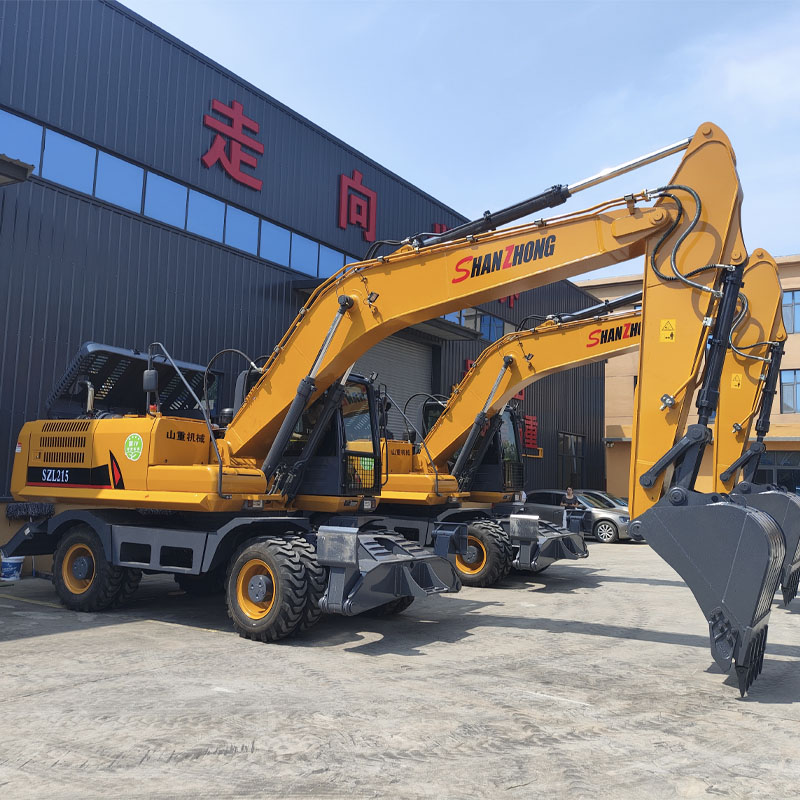

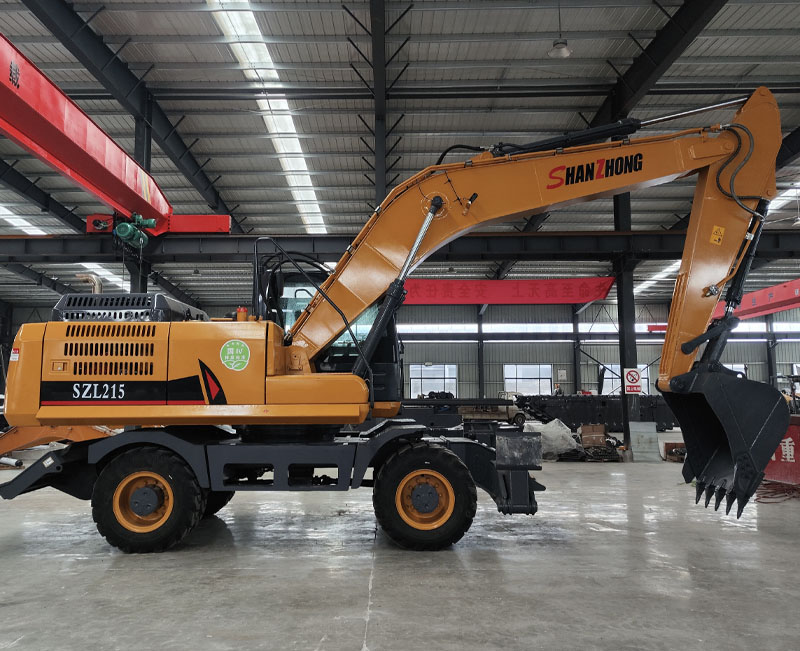

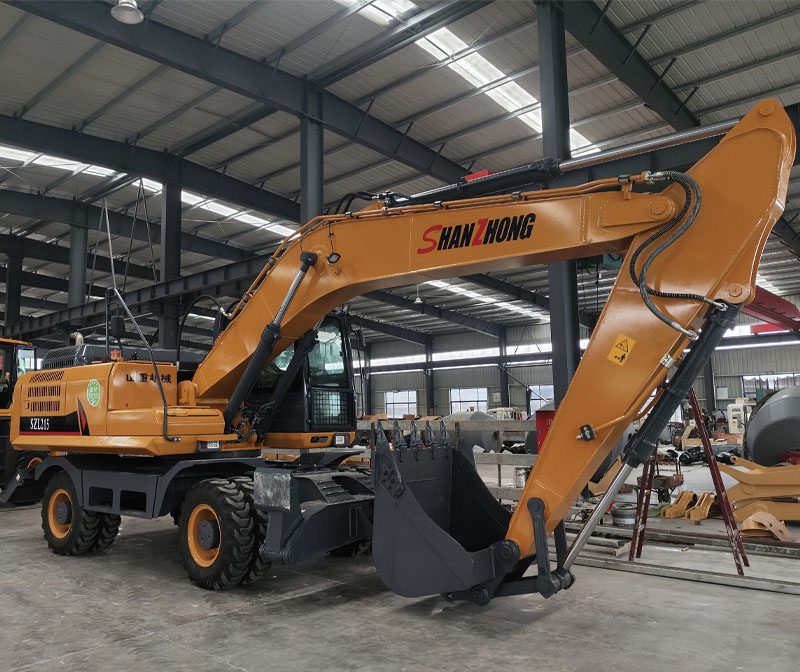

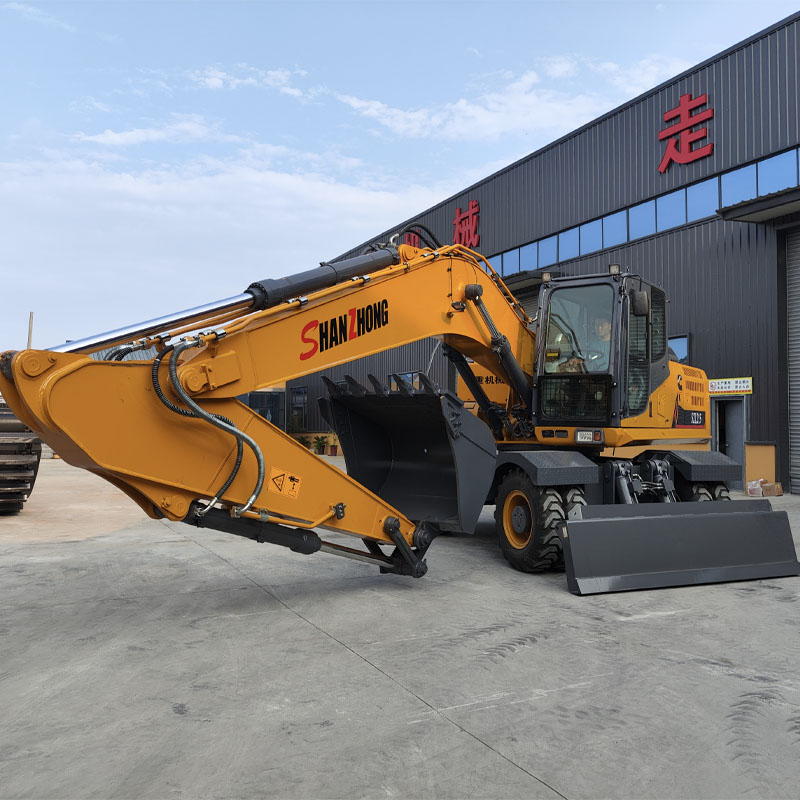

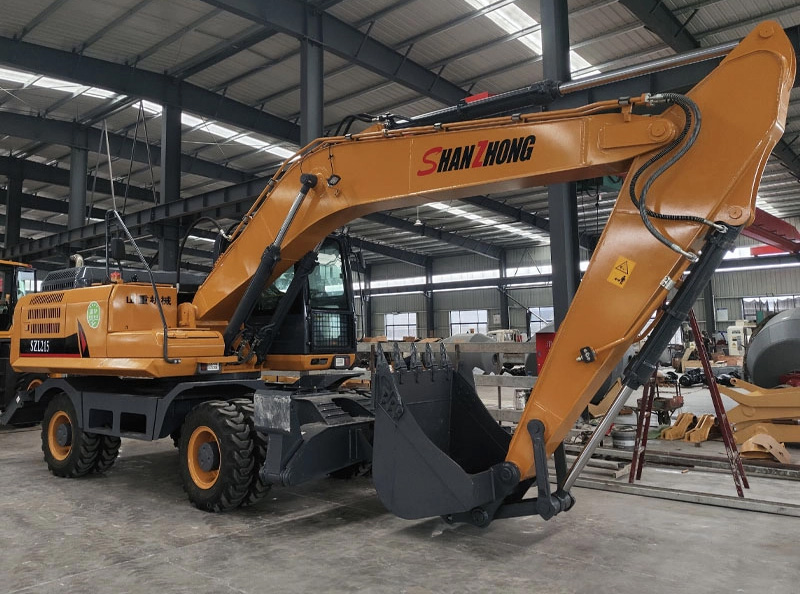

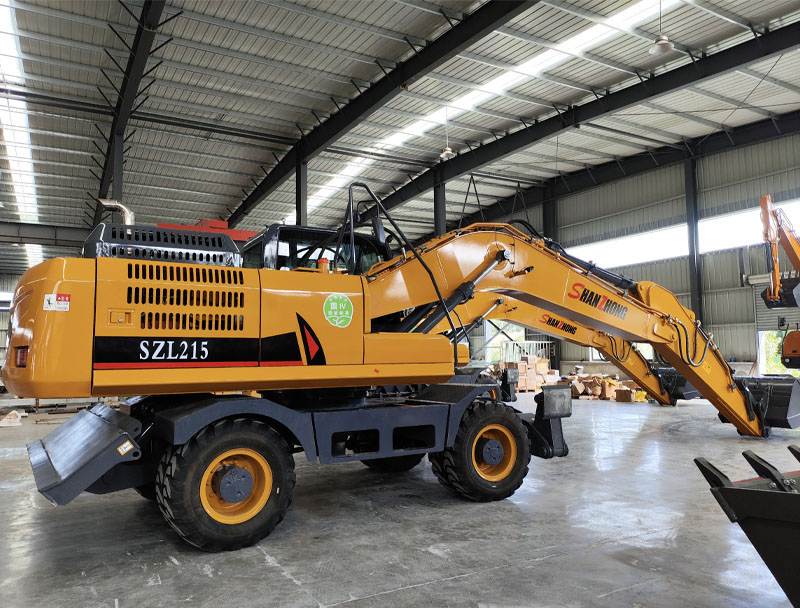

SZL215 Wheel Excavator
21 ton wheeled excavator
Benefit from superior mobility:Overcome the limitations of traditional equipment, enable seamless movement between multiple sites, significantly reduce project preparation time, and improve work planning efficiency.
Economic advantage:An optimized combination of powertrain and hydraulics reduces energy consumption, and low failure rates reduce maintenance costs, significantly reducing the total cost of ownership.
The advantage of stable operation:The reinforced chassis and rational distribution of counterweight ensure excellent stability under heavy loads and stable operation in difficult working conditions.
The advantage of versatility of application:One machine meets multiple construction needs, expands business reach, enhances market competitiveness and maximizes asset value.
The overall performance of the hydraulic system is reasonably matched with the engine output power, which greatly reduces energy loss.
Intelligent control, all-wheel drive, all-wheel hydraulic oil brakes and stable driving control system.
Cummins engine with electronic injection, turbocharging and fuel cooling system, high fuel efficiency, low fuel consumption and durability.

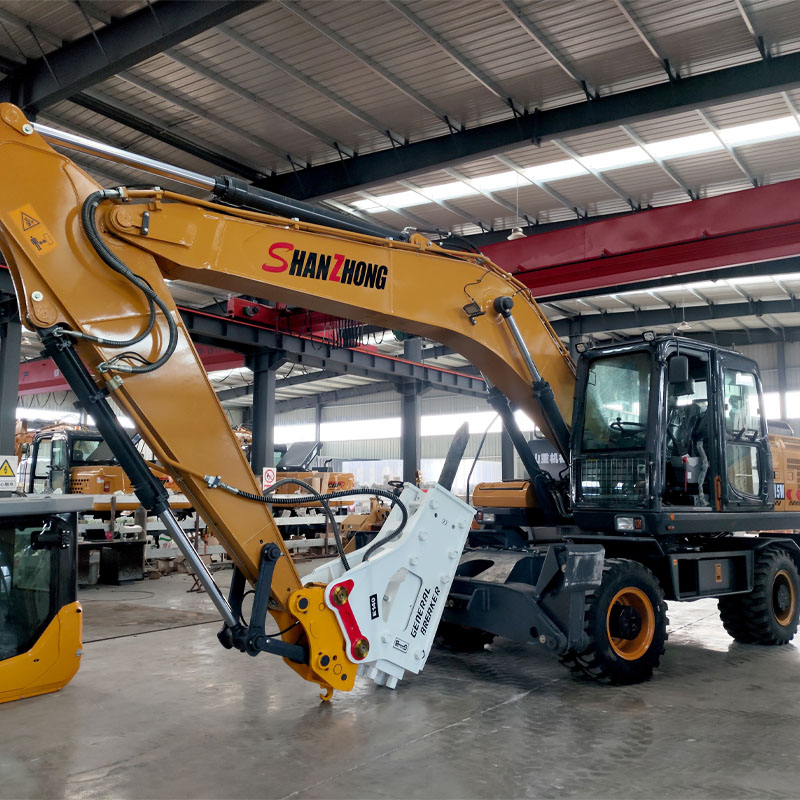

The SZL215, developed and manufactured by Shanzhong, is specifically designed for Russia's cold climate and is a suitable replacement for European earthmoving equipment. It boasts high reliability, quality, performance parameters, ease of use, and usability. The excavators feature a wide range of interchangeable attachments (excavator buckets of varying capacities and shapes, clamshell buckets, hydraulic hammers, rippers, etc.).
Key advantages and features of the SZL215 excavator and standard equipment:
l The hydraulic system is imported from Korea.
l Cummins engine, equipped with liquid cooling, direct injection and turbocharging, meets international environmental protection standards.
The hydraulic drive system, imported from South Korea, provides an unlimited number of cycle combinations with high operating precision and minimal power loss. Swing-priority traffic distribution ensures optimal performance.
l Standard equipment includes fenders that completely cover the front and rear wheels, protecting the excavator from dust, as well as a windshield. Mudguards protect machines, other vehicles, and people working around the excavator from rocks and debris kicked up by the wheels.

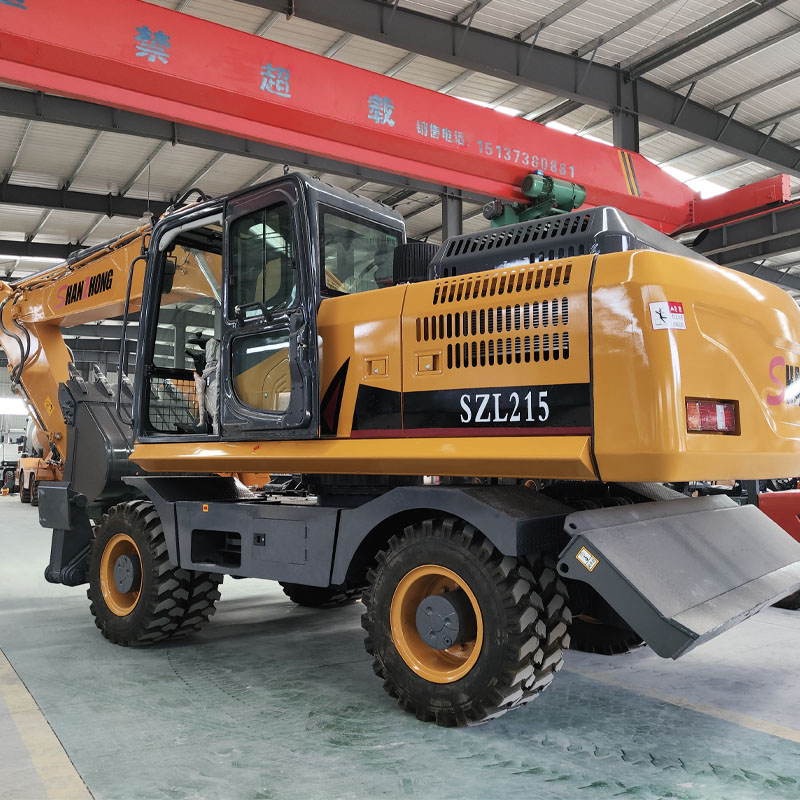

The newly designed cab features a modern interior, more compact and ergonomic control panels, a wide door with an integrated window, large glass areas providing full visibility of the work area, an improved system of window defrosters and interior heating/air conditioning ducts. The standard configuration includes a climate control system (heater/air conditioner), audio preparation, and an ergonomic operator seat with a seat belt.
l Install additional work lights inside the cab shield and work lights on the work equipment to effectively illuminate the work area.
The hooded system provides full access to all components and assemblies, making maintenance quick and easy. The excavator boasts high reliability, extended service intervals, and fuel efficiency.
l Pre-heater for the engine.
SZL215 Wheeled Excavator |
|||
Parameters: |
|||
Brand: |
Shanzhong |
Model: |
SZL215 |
Engine: |
Cummins 6 Clinders 6BTAA5.9-C178 |
Power: |
153 kW/2200 rpm |
Weight: |
21,000 kg |
Bucket capacity: |
1.0 m³ |
Size |
|||
Delivery length: |
9700 mm |
Boom length: |
5650 mm |
Delivery height: |
3340 mm |
Arm Length: |
2920 mm |
Overall Width: |
2900 mm |
Height of bulldozer plate: |
770 mm |
Rotary table width: |
2800 mm |
Height of bulldozer plate: |
2450 mm |
Wheelbase: |
2880 mm |
Dozer plate lifting height: |
580 mm |
Tread: |
1920 mm |
Height of bulldozer support: |
110 mm |
Radius, turning center to rear: |
2800 mm |
Height of bulldozer support: |
380 mm |
Counterweight ground clearance: |
1220 mm |
Minimum ground clearance: |
325 mm |
Hydraulic tank capacity: |
215l |
Fuel tank capacity: |
350l |
Working Parameter |
|||
Maximum digging radius: |
9700 mm |
Maximum digging height: |
10,000 mm |
Maximum digging depth: |
6350 mm |
Maximum digging height: |
7200 mm |
Hydraulic system pressure: |
34.3 MPa |
Hydraulic system flow: |
2*231.7 l/min |
Bucket digging force: |
134/126kN |
Hand digging force: |
99/93kn |
Rotation speed: |
0-12 rpm |
Travel speed: |
28-35 km/h |
Gradeability: |
≥35% |
