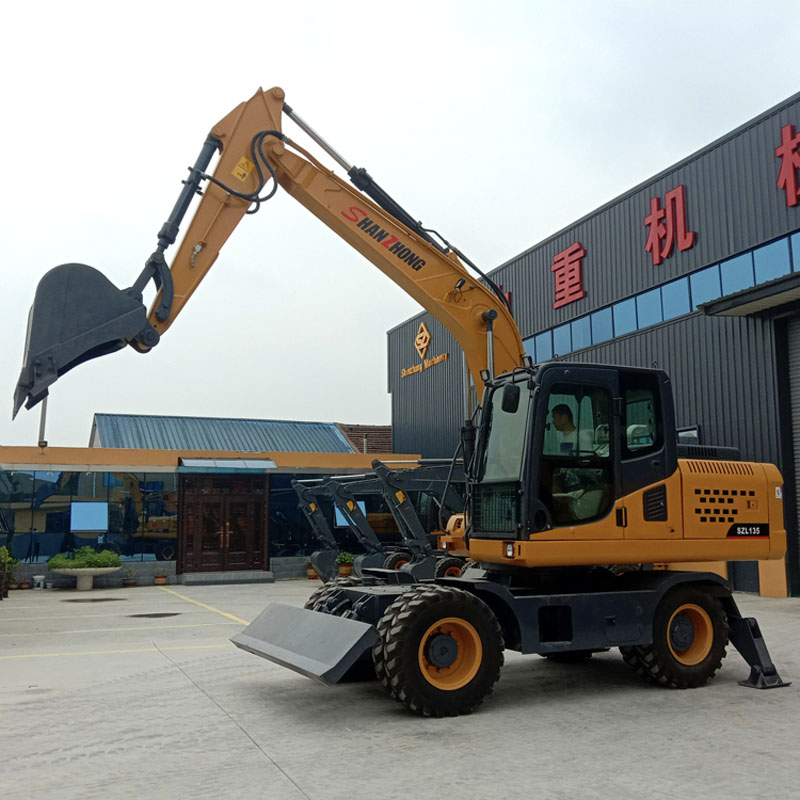

Wheel Excavator SZL135

Wheeled excavator 13.5 tons

The overall performance of the hydraulic system is reasonably matched with the engine power output, which greatly reduces energy loss.

Intelligent control, all-wheel drive, all-wheel hydraulic oil brakes and stable driving control system.

Cummins engine with electronic injection, turbocharging and fuel cooling system, high fuel efficiency, low consumption

fuel and durability.

Shanzhong's SZL135 excavator is a reliable and cost-effective earthmoving machine suitable for a wide range of applications. Due to its small size, the excavator has become an auxiliary excavator in the construction of electric highways, pipe laying and construction. The price of the SZL135 excavator is quite reasonable for this type of equipment and will not hit your budget.

Brief description and operational characteristics of the SZL135 excavator

The SZL135 is a wheeled excavator and therefore has sufficient maneuverability and excellent maneuverability, which is provided by a pair of wheels. The main advantage of this excavator compared to crawler excavators is its maneuverability and speed, which can reach 28-40 km/h, which is a fairly high indicator for this type of equipment.

All main components of the SZL135 excavator are imported, which determines its reliability and ease of maintenance, as well as economical consumption of fuels and lubricants.

· The hydraulic system is imported from South Korea.

Cummins engine

· operating weight of SZL135 - 13.0–13.5 tons;

· dimensions - 7350x2550x3150 mm (depending on the configuration);

· working handle length - 2,200 mm;

· working capacity of the bucket - 0.55 m3;

· maximum digging depth - 4.505 m;

· maximum digging radius - 7.505 m.

The SZL135 excavator has all the necessary conditions for comfortable work. The cabin is spacious and comfortable, with excellent working visibility and is equipped with air conditioning. A comfortable and ergonomic seat with a seat belt not only allows the operator to work comfortably for long periods of time, but also ensures his safety in case of an emergency.

From us you can not only buy a new excavator (backhoe loader), but also get initial consultation with operators and repairmen. You can contact us using the contact information provided on our website.
