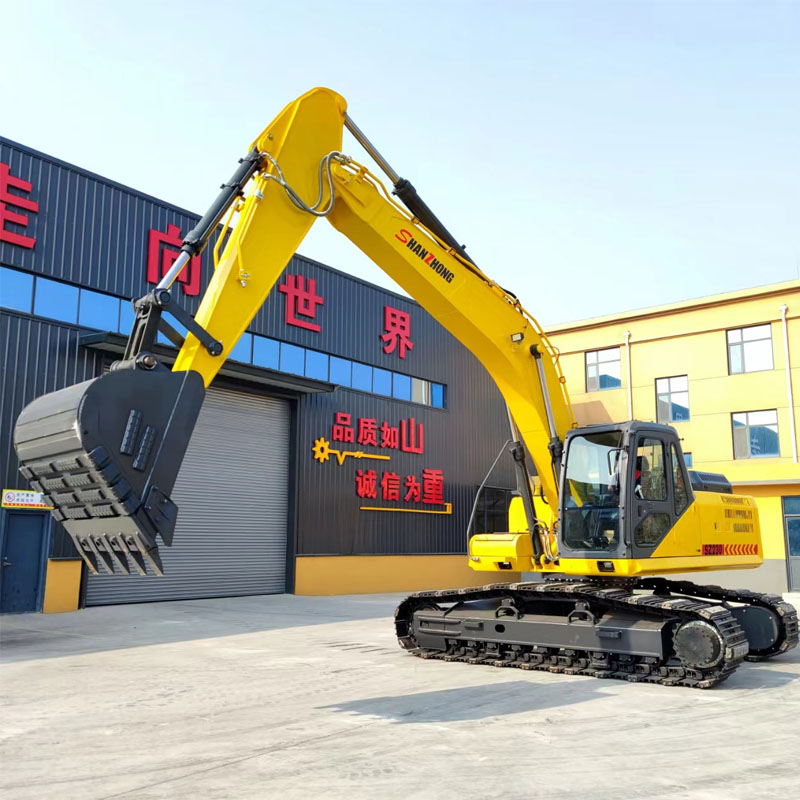

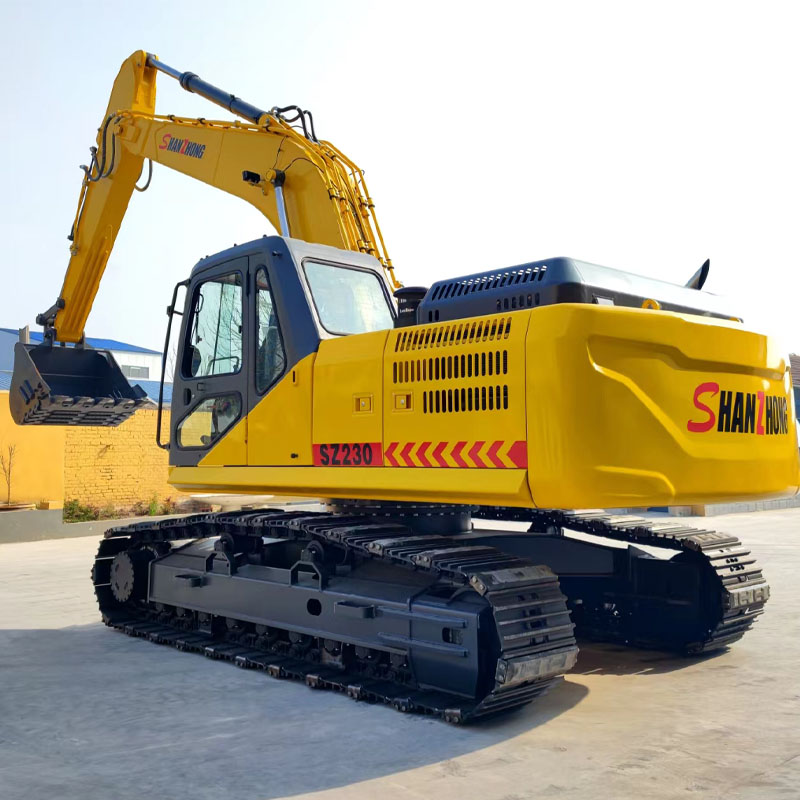

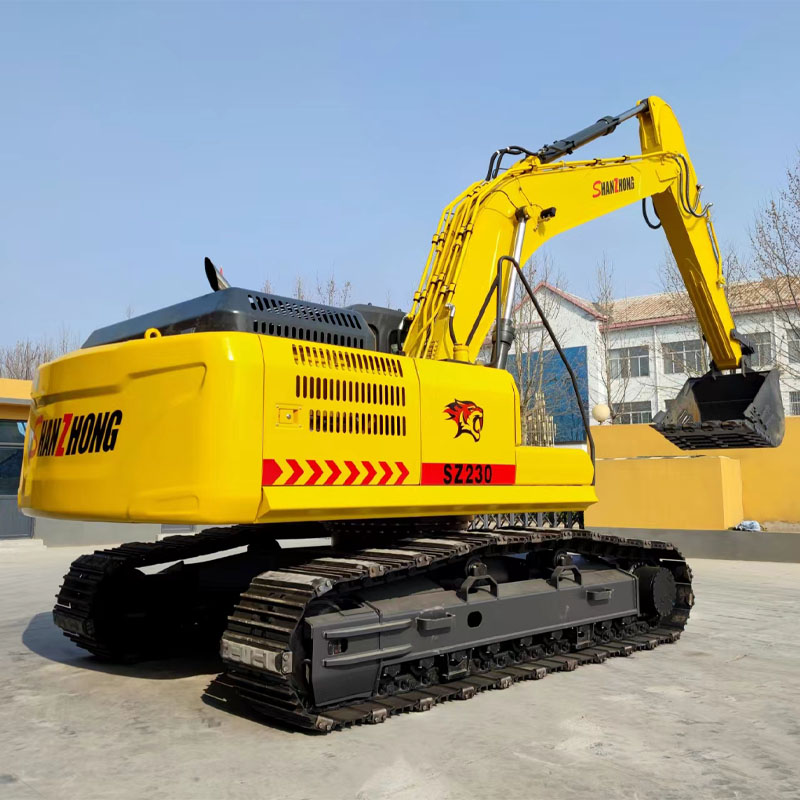

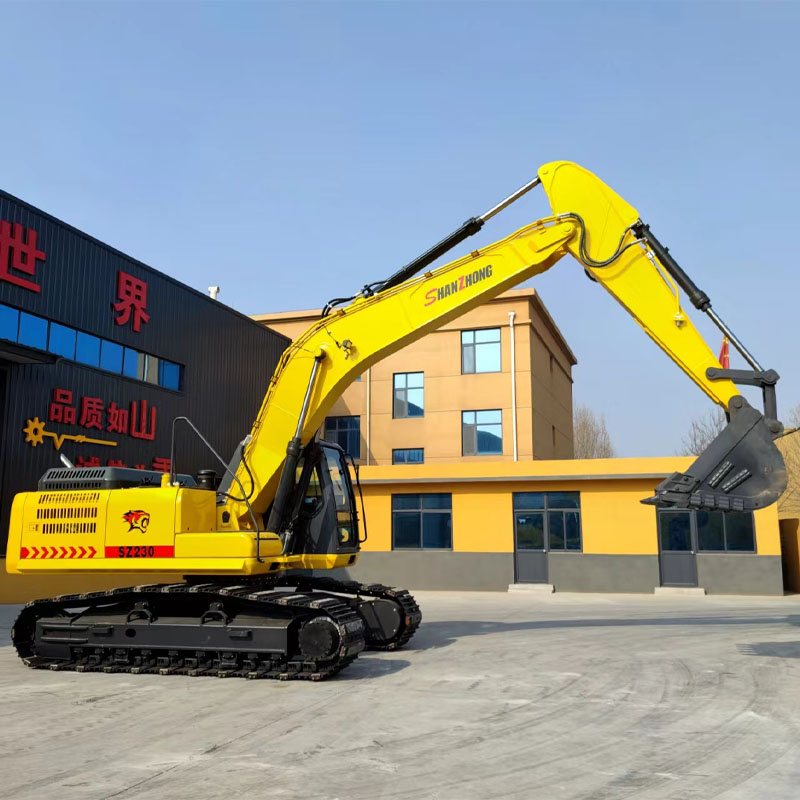

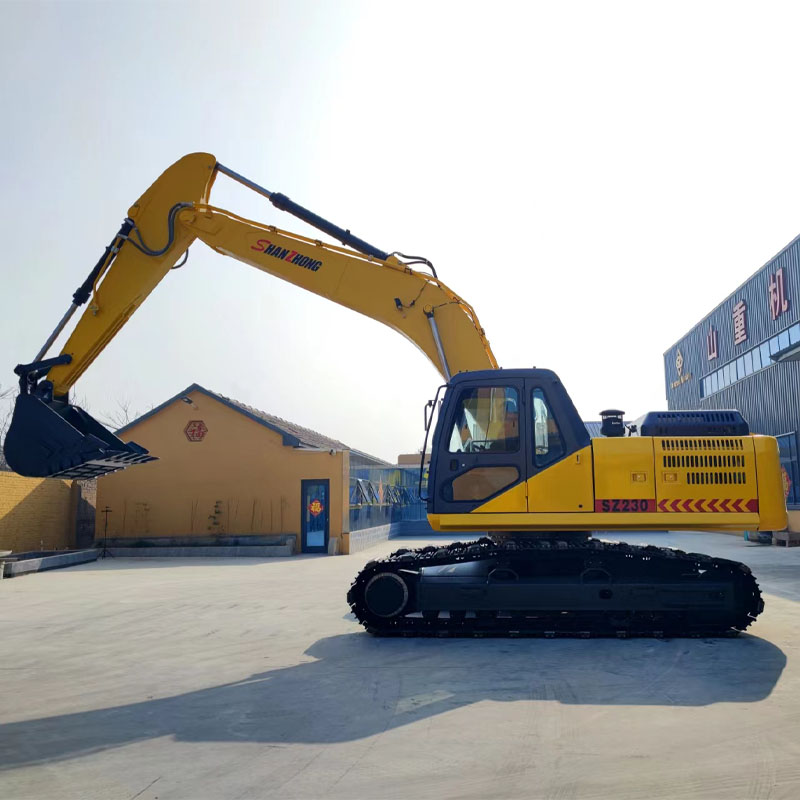

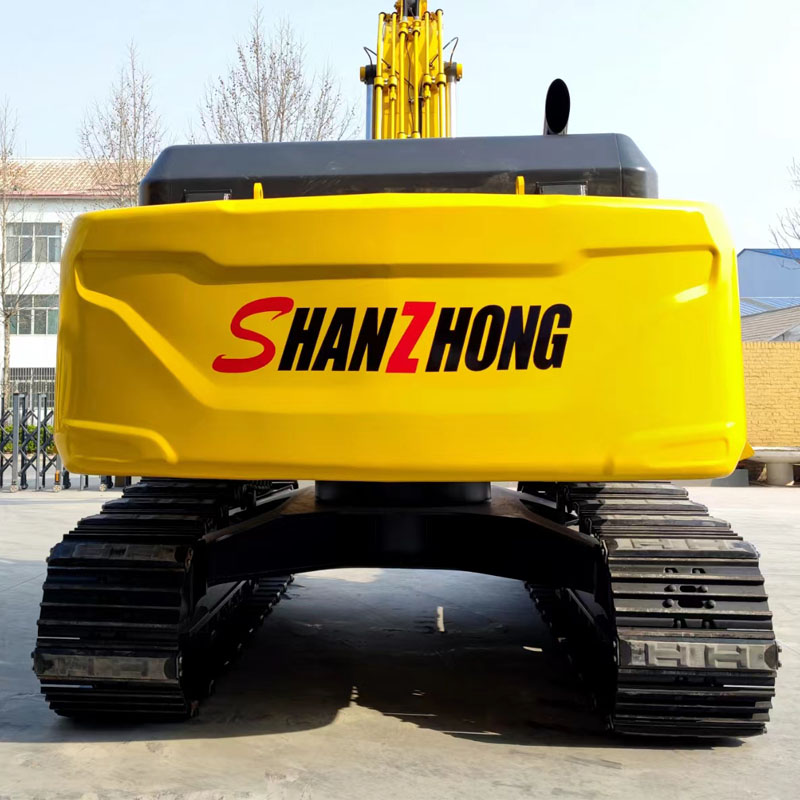

23 ton crawler excavator
SZ230 Crawler Excavator
Country of origin: China
Model – SZ230
Weight, kg - 22500
Length, mm – 9600
Width, mm – 2710
Height, mm – 3005
Engine model – 6BTAA5.9-C205
1)Original imported hydraulic system, smooth movement, stable and durable.
2) The robust cab structure and four-sided panoramic glass windows provide excellent safety and all-round visibility, greatly improving work efficiency.
3) Famous brand power system, strong power, energy saving and environmental protection, adapt to the requirements of different working conditions.
SZ230 Crawler Excavator Product Description
1)Original imported hydraulic system, smooth movement, stable and durable.
2) The robust cab structure and four-sided panoramic glass windows provide excellent safety and all-round visibility, greatly improving work efficiency.
3) Famous brand power system, strong power, energy saving and environmental protection, adapt to the requirements of different working conditions.
The SZ230 crawler excavator is a new generation of all-hydraulic crawler excavator independently developed by Shanzhong. To ensure the full power and reserve of the entire machine, it adopts a powerful and economical engine; A perfectly matched, highly efficient hydraulic system and axlebox ensure the job.
Among its many claims to fame are “high reliability, product authenticity, safety and environmental protection, comfort and convenience,” and the hydraulic system of this entire machine is equipped with well-known hydraulic components. In addition, it can provide various attachment options and customized configurations that can be customized based on the requirements of different customers and regions.
Additional attachments available. large, spacious cabin with stunning views in all directions. Increased operator comfort with ergonomic seat options.
Parameter |
|||
Brand: |
Shanzhong |
Model: |
SZ230 |
Engineering model: |
6BTAA5.9-C205 |
Engine power: |
153 kW/2200 rpm |
Weight: |
22500kg |
Bucket capacity: |
1.0-1.2m³ |
Dimensions |
|||
Delivery length: |
9600 mm |
Boom length: |
5700 mm |
Delivery height: |
3005 mm |
Arm Length: |
2900 mm |
Overall Width: |
2990 mm |
Track length: |
4440 mm |
Turntable width: |
2710 mm |
Measure: |
2400 mm |
Track width: |
600 mm |
Chassis height: |
2980 mm |
Radius, center of rotation to rear: |
2794 mm |
Minimum rotation width: |
3560 mm |
Counterweight ground clearance: |
1096 mm |
Minimum ground clearance: |
470 mm |
Hydraulic tank volume: |
210l |
Fuel tank capacity: |
360l |
OPERATING RANGE |
|||
Max. Digging radius: |
9873 mm |
Max. Digging height: |
9616 mm |
Max. Digging depth: |
6592 mm |
Max. Unloading height: |
6830 mm |
Hydraulic system Working pressure: |
32.34/34.3 MPa |
Hydraulic system Flow: |
2*212l/min |
Bucket digging force: |
146.4 kn |
Hand digging force: |
108 kn |
Rotation speed: |
0-10.7 rpm |
Travel speed: |
5.9-3.2 km/h |
Climbability: |
≥70% |
