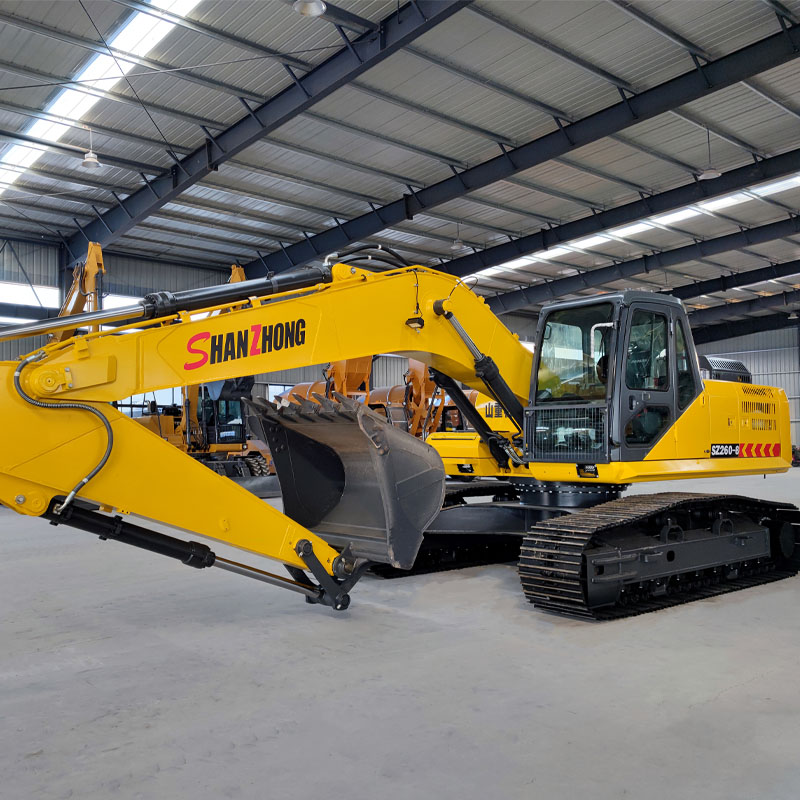

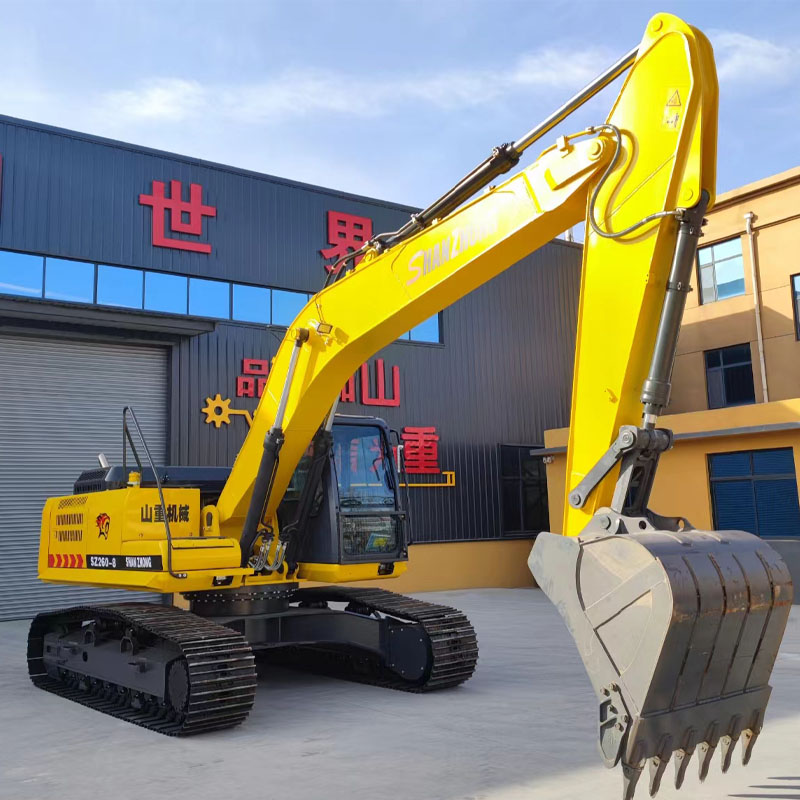

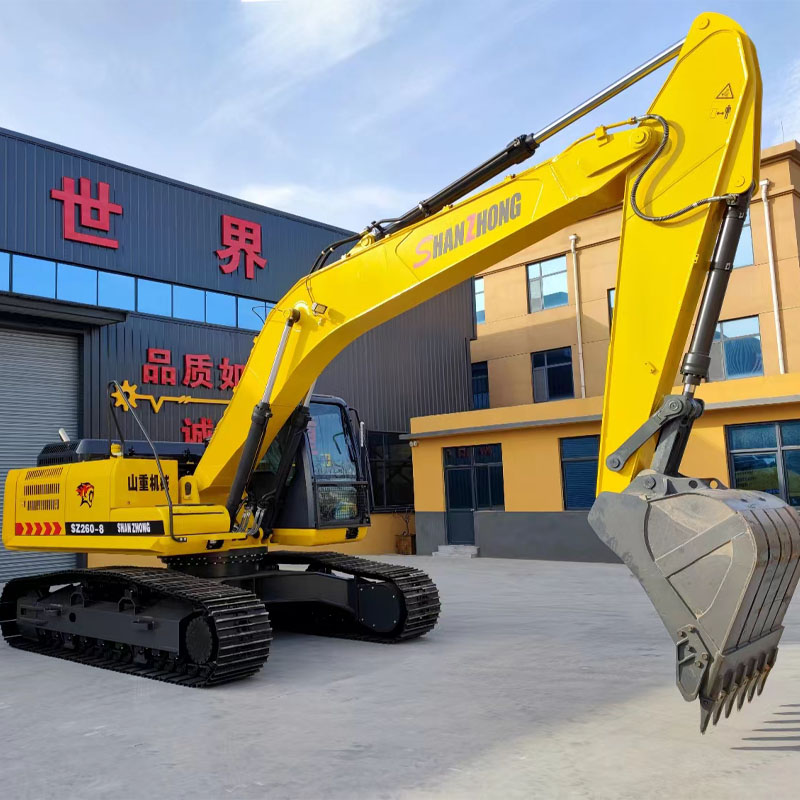

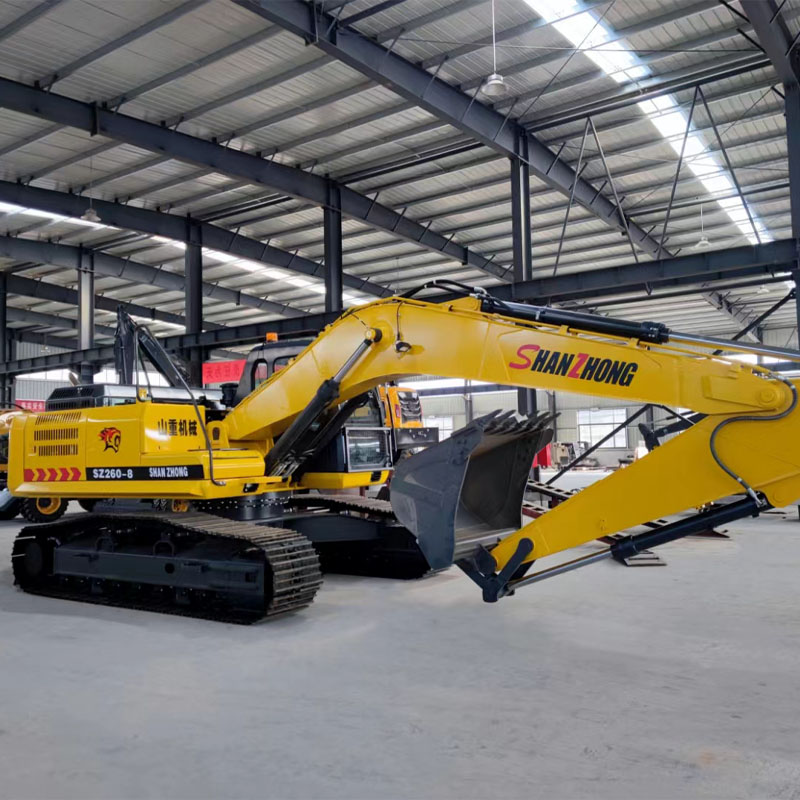

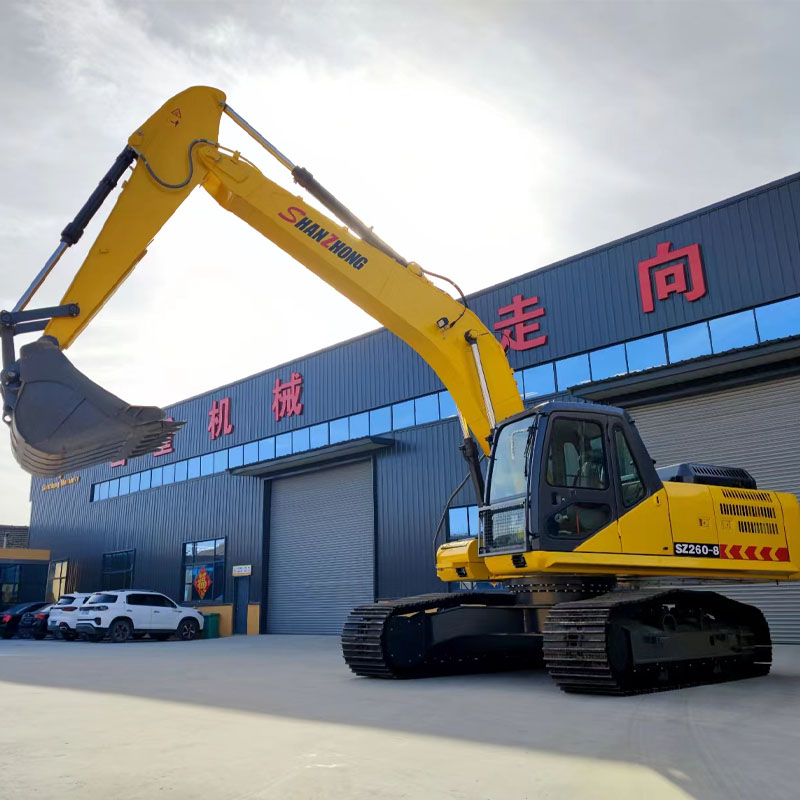

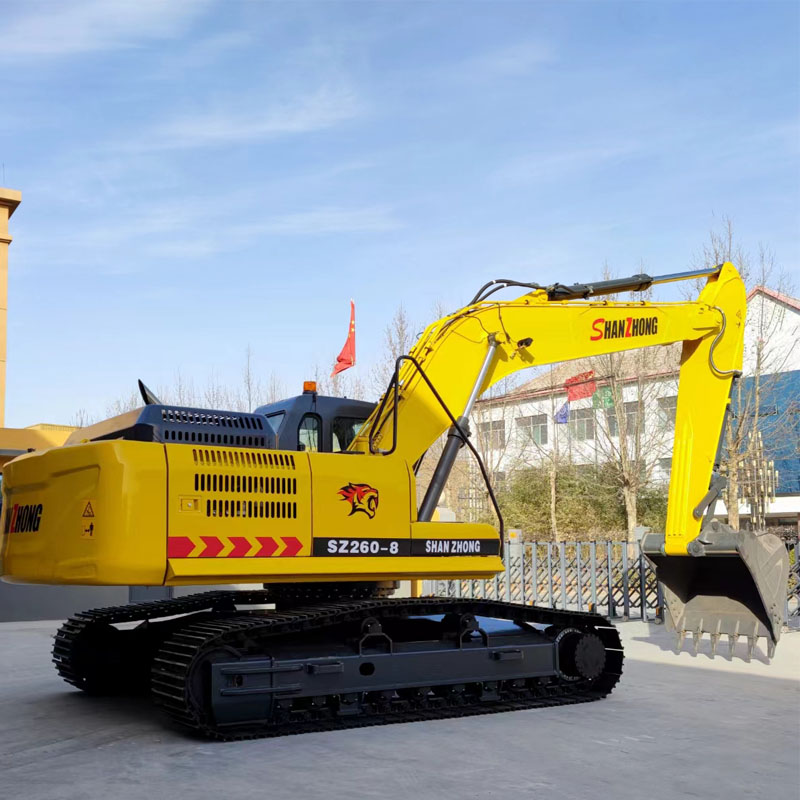

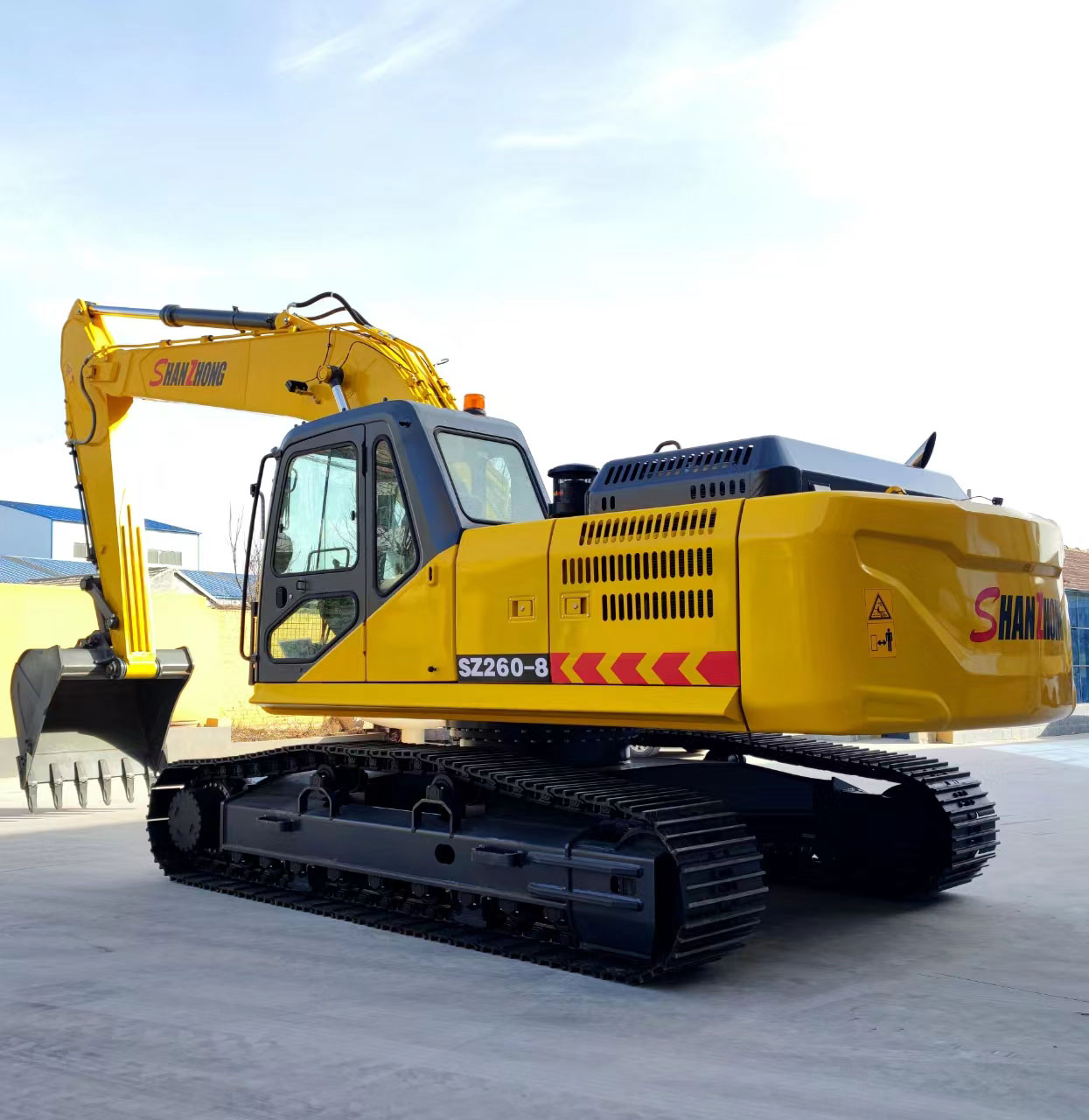

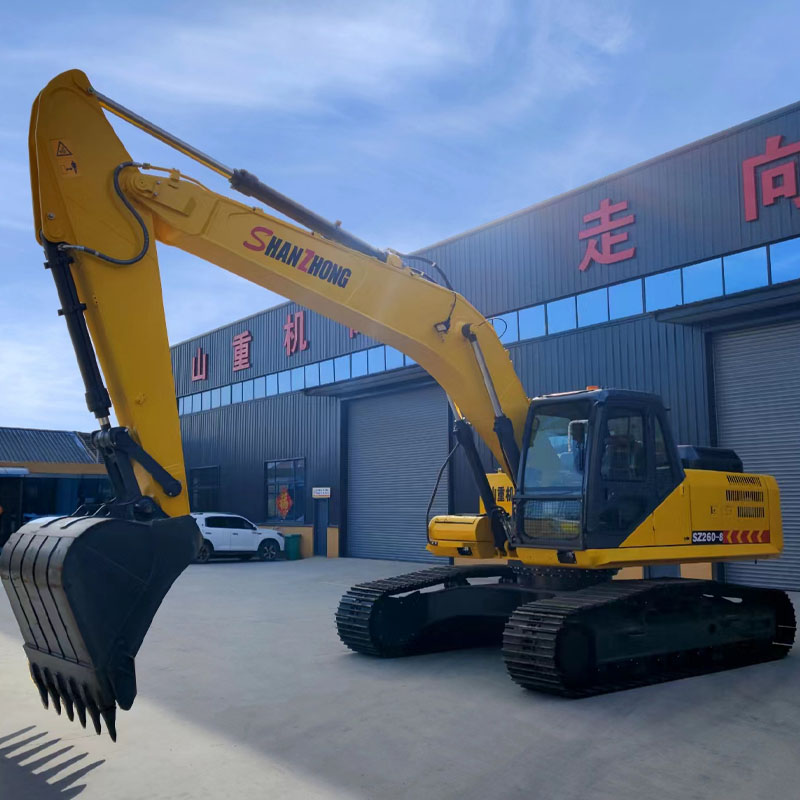

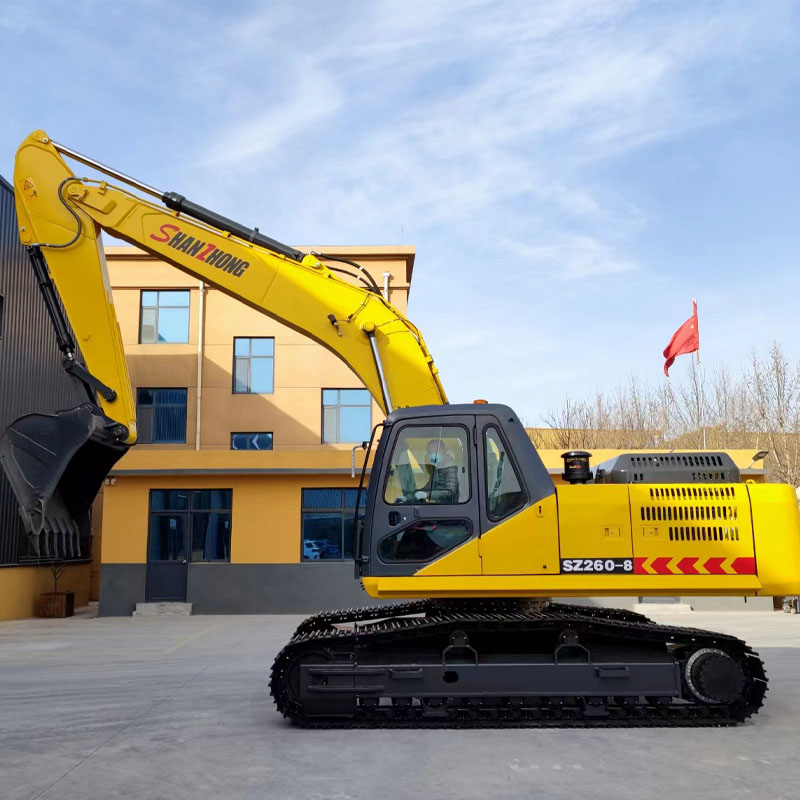

SZ260 Crawler Excavator

SZ260 Crawler Excavator

Country of origin: China

Model – SZ260

Weight, kg - 25500

Length, mm – 10300

Width, mm – 3195

Height, mm – 3045

Engine model – 6BTAA5.9-K205

1) To design enhanced working conditions, the excavation power is large and the adaptability is high.

2) Load sensing system and famous brand motor combination, more energy saving and efficient.

3) Original imported hydraulic system. It's quick in line with the movement and the brakes are stable.

4) Standard anti-collision beams improve the design of large and large arms, greatly increase the service life.

5)Powerful vehicle performance, excellent operating stability and high operating efficiency.

6) Customized production can be provided to meet the needs of special construction and bidding.


Product Details

SZ260 Crawler Excavator Product Description

1) To design enhanced working conditions, the excavation power is large and the adaptability is high.

2) Load sensing system and famous brand motor combination, more energy saving and efficient.

3) Original imported hydraulic system. It's quick in line with the movement and the brakes are stable.

4) Standard anti-collision beams improve the design of large and large arms, greatly increase the service life.

5)Powerful vehicle performance, excellent operating stability and high operating efficiency.

6) Customized production can be provided to meet the needs of special construction and bidding.



The SZ260 crawler excavator is a new generation of fully hydraulic crawler excavator independently developed by Shanzhong.

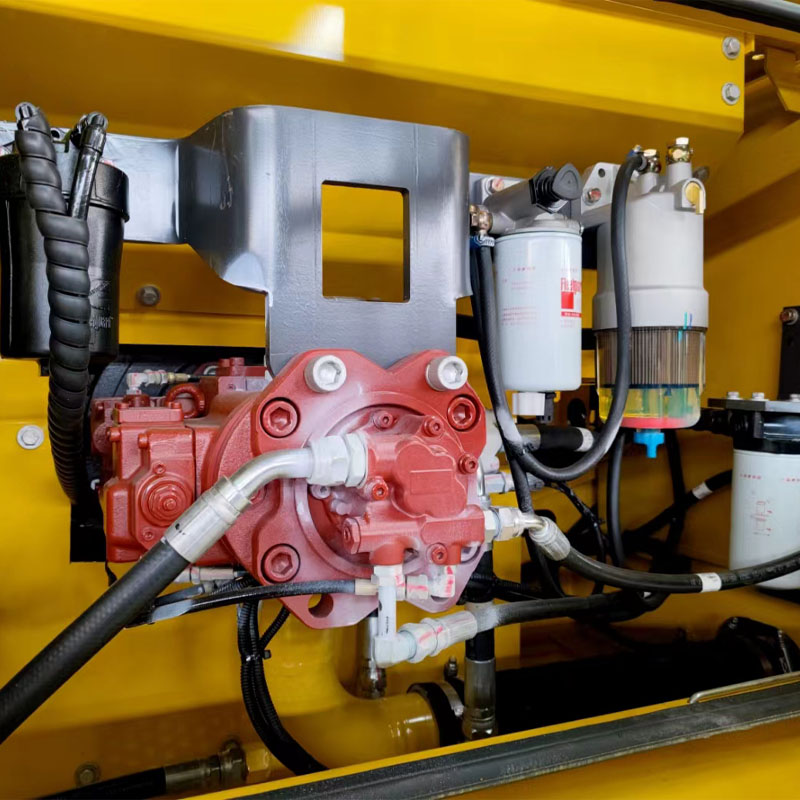

Along with the advantages of "exceptional reliability, real parts, safety and environmental protection, comfort and convenience", the hydraulic system of the entire machine is equipped with well-known hydraulic sources.

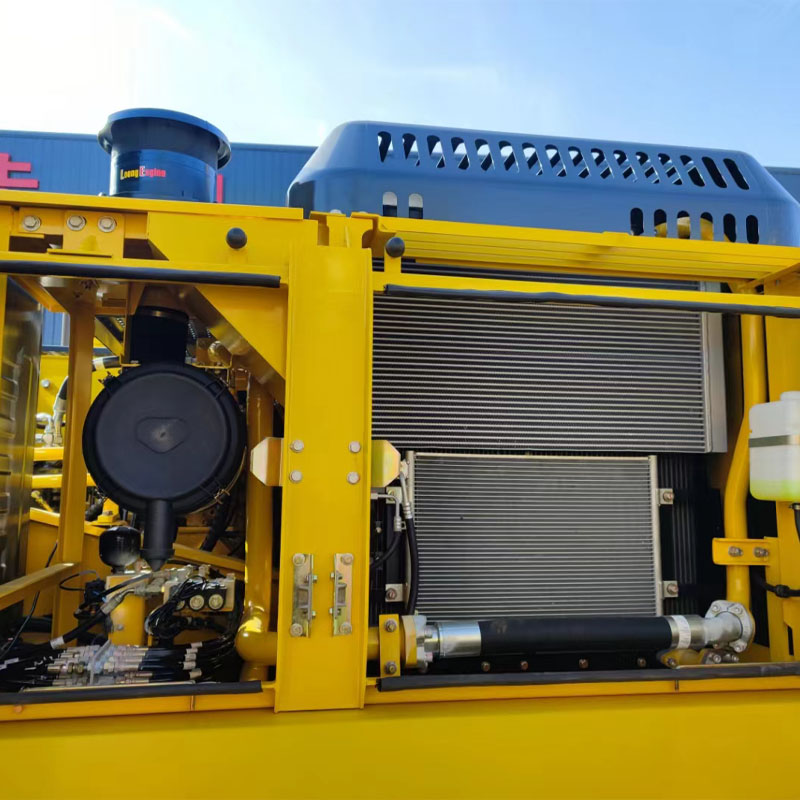

This machine uses a powerful, low-fuel engine to ensure overall durability, power and range of the equipment. To ensure operation, the axlebox and the highly efficient hydraulic system were perfectly matched to each other.
At the same time, it can include a variety of customizable configuration and connectivity decision-making features that can be customized to suit the needs of different geographies and customers.

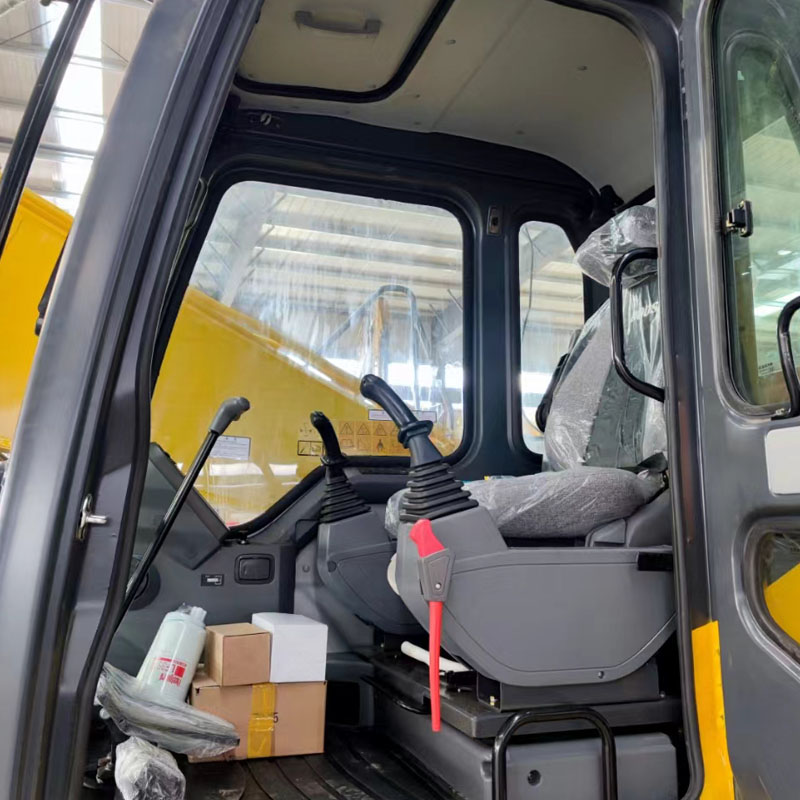

There are actually several government supplies available. The cabin is cozy and spacious, with excellent visibility in all directions. Improving the ergonomic seat will improve operator comfort.


Parameter




Brand:

Shanzhong

Model:

SZ260

Engineering model:

6BTAA5.9-K205

Engine power:

153 kW/2200 rpm

Weight:

25500kg

Bucket capacity:

1.35 m³

SIZE




Delivery length:

10300 mm

Boom length

5900 mm

Delivery height:

3250 mm

Arm length

3000 mm

Overall Width

3195 mm

Track length:

4450 mm

Player width

3045 mm

Measure

2590 mm

Track width

600 mm

Chassis height:

2980 mm

Radius, center of rotation to rear

3105 mm

Minimum rotation width

3880 mm

Counterweight ground clearance

1096 mm

Minimum ground clearance

470 mm

Hydraulic tank volume

250l

Fuel tank volume

380l

OPERATING RANGE




Max. Digging radius

10225 mm

Max. Digging height

9756 mm

Max. Digging depth

6720 mm

Max. Unloading height

6830 mm

Hydraulic system Working pressure

32.34/34.3 MPa

Hydraulic system Flow

2*230 l/min

Bucket digging force

176.4 kn

Hand digging force

126 kn

Rotation speed

0-10.7 rpm

Travel speed

5.4-3.4 km/h

Climbability

≥70%
