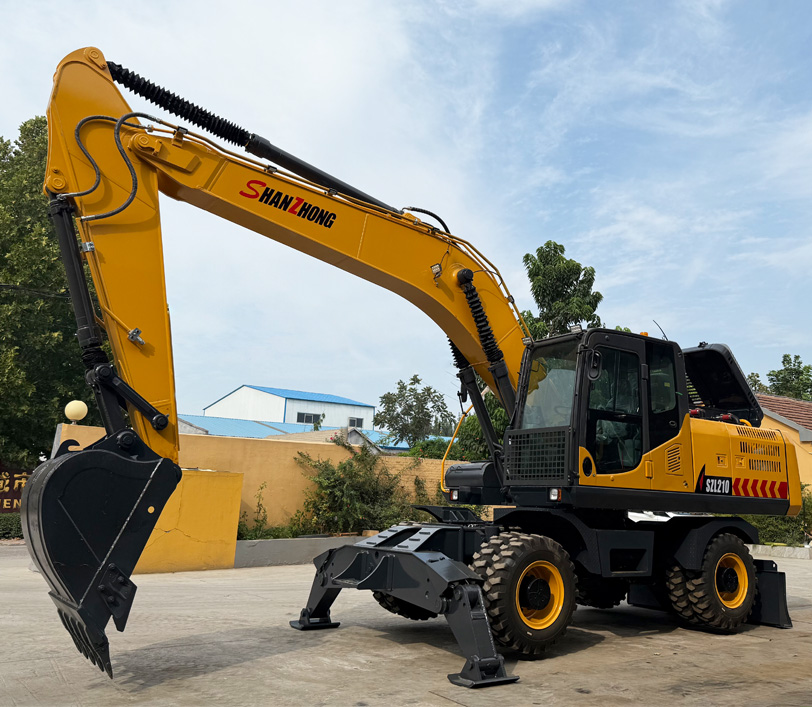

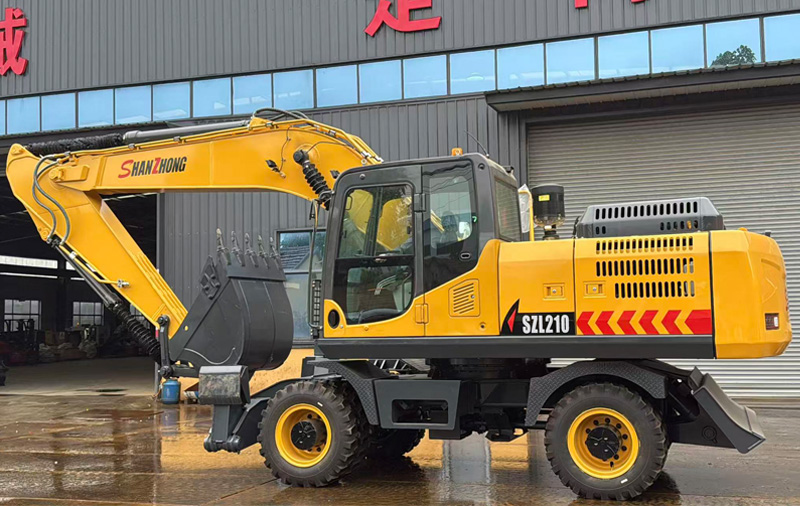

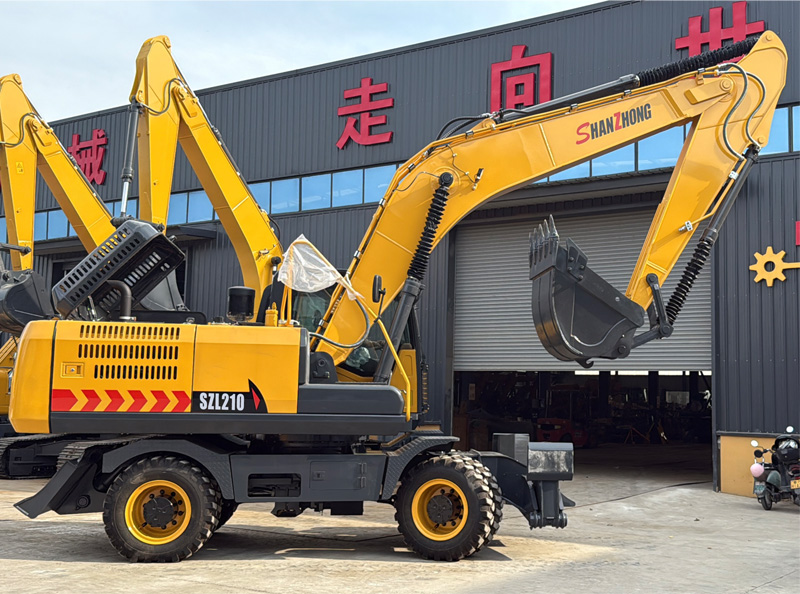

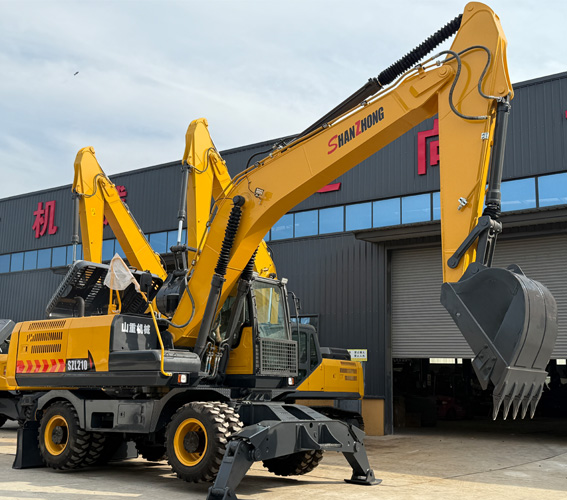

Wheeled excavator SZL210
SZL210 Wheel Excavator
1. Powerful electronically controlled engine and imported hydraulic system ensure precise power distribution, high performance, excellent control accuracy, and are suitable for heavy-duty work and precision construction operations.
2. Full drive, high speed, small turning radius, capable of traveling on public roads, efficient transportation between sites, saving time and costs.
3. Compatibility with various attachments, capable of performing multiple operations, wide range of applications, one machine for various tasks, high utilization efficiency.
4. Customized solutions are provided based on regional needs (e.g., low-temperature modification for cold regions, enhanced dust protection for arid areas), meeting the individual requirements of customers in different regions.
The SZL210 wheeled excavator is a new generation of fully hydraulic wheeled excavators independently developed by Shanzhong. The machine is equipped with a high-power, low-fuel-consumption engine, ensuring excellent traction power and overall power reserve. The precise coordination of the high-efficiency hydraulic system and the axle reducer ensures stable operation. The hydraulic system is equipped with well-known hydraulic components, offering high reliability, original parts, safety, environmental friendliness, comfort, and ease of operation. A wide selection of special configurations and attachments is available to meet the requirements of customers from different countries. Multiple types of attachments are available. The spacious and comfortable cab provides excellent all-around visibility. The new ergonomic seat enhances operator comfort.
Basic parameters |
|||
Brand: |
shanzhong(Shan Zhong) |
Model: |
SZL210 |
Engine: |
Weichai Euro II |
Engine power: |
129 kW / 2200 rpm |
Operating weight: |
20000 kg |
Bucket capacity: |
0.9 m³ |
Dimensions |
|||
Overall machine length: |
9700mm |
Boom length: |
5200mm |
Transport height: |
3400mm |
Handle length: |
2600mm |
Overall machine width: |
2500mm |
Bulldozer blade lift height: |
430mm |
Wheelbase: |
2850mm |
Wheel track: |
1980mm |
Rear platform turning radius: |
2750mm |
Ground clearance under counterweight: |
1249mm |
Hydraulic tank volume: |
215L |
Fuel tank volume: |
350l |
Minimum ground clearance: |
300mm |
||
Working area and digging force |
|||
Maximum digging radius: |
9100mm |
Maximum digging height: |
9800mm |
Maximum digging depth: |
5720mm |
Maximum discharge height: |
6700mm |
Bucket digging force: |
122kN |
Hydraulic system flow rate: |
2*220L/min |
Platform rotation speed: |
11 rpm |
Arm digging force: |
81 kN |
Maximum gradeability: |
≤37.5° |
Maximum travel speed: |
35 km/h |
