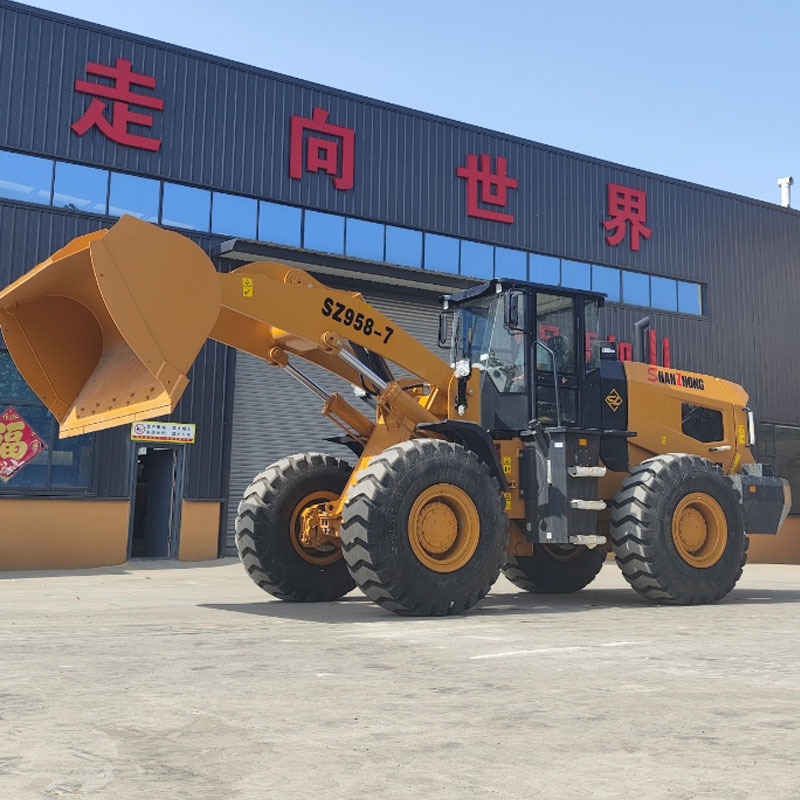

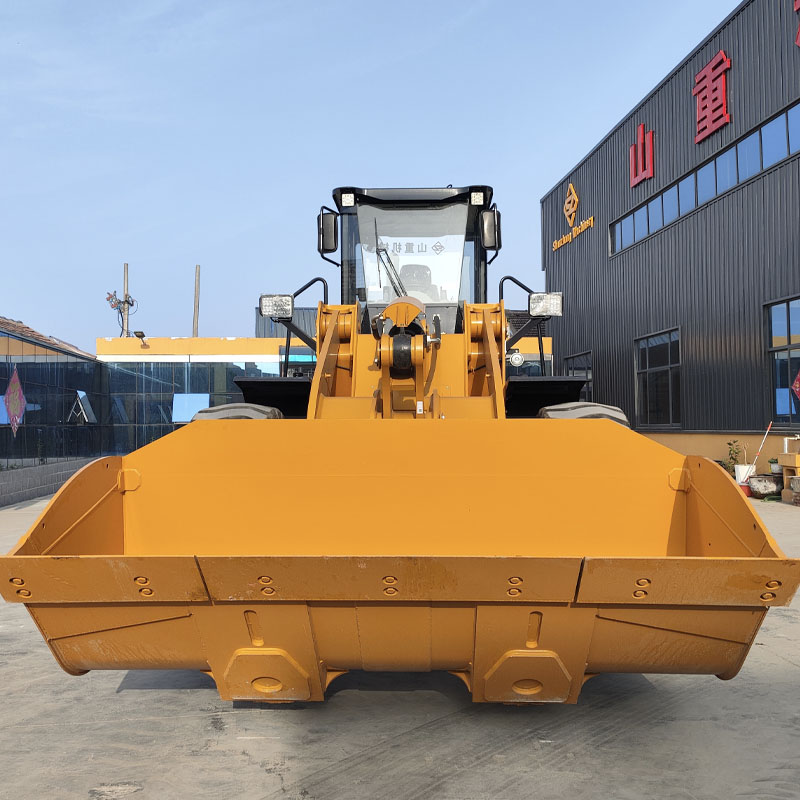

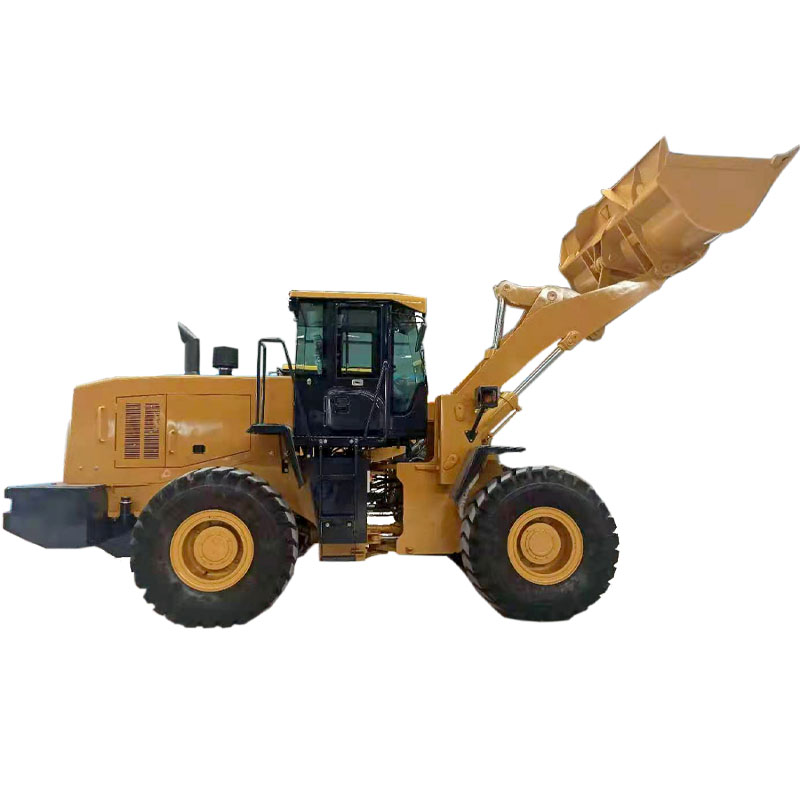

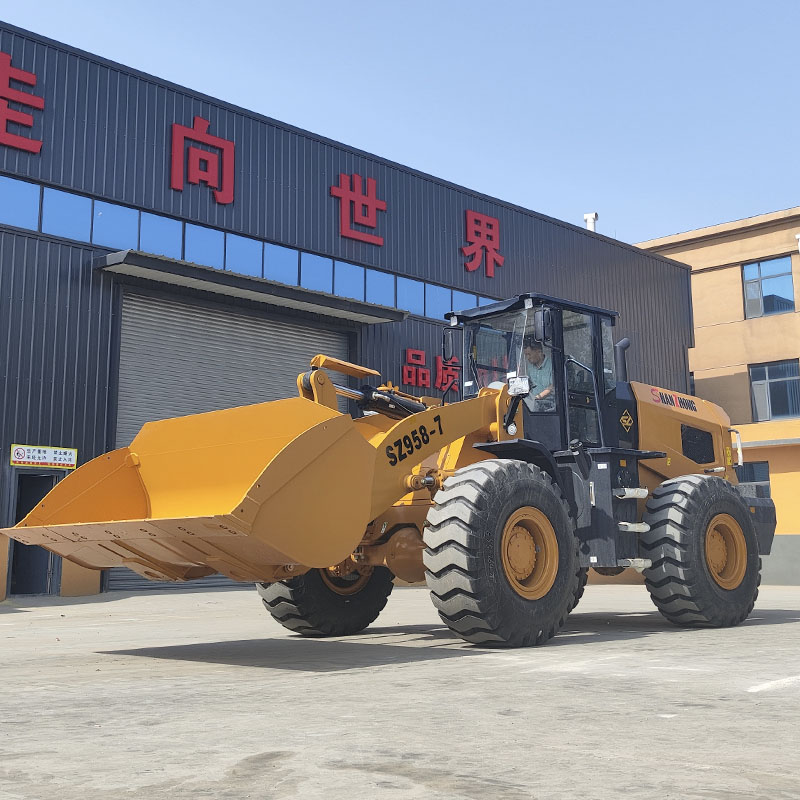

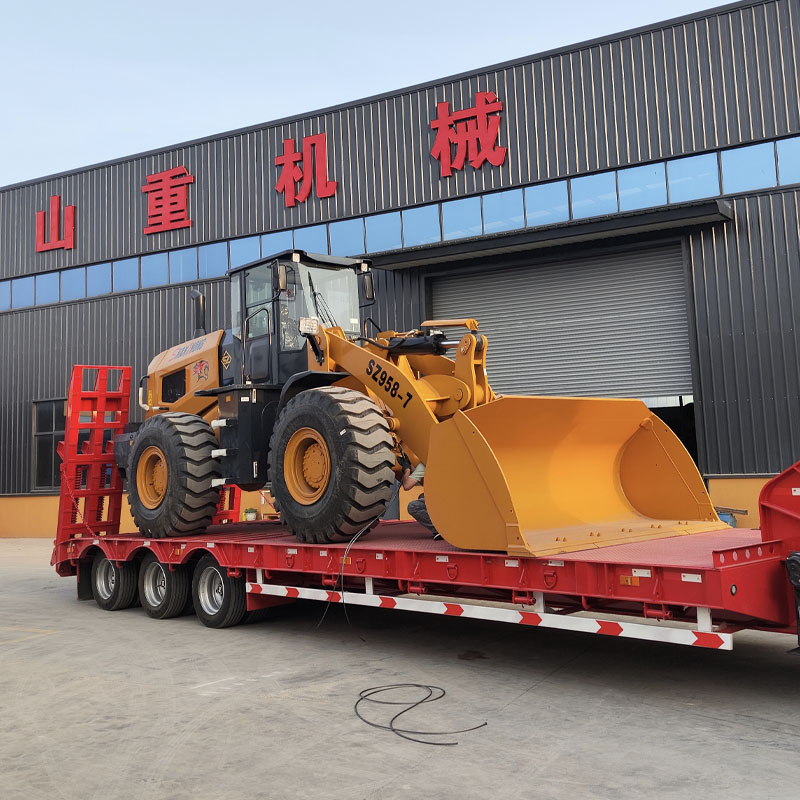

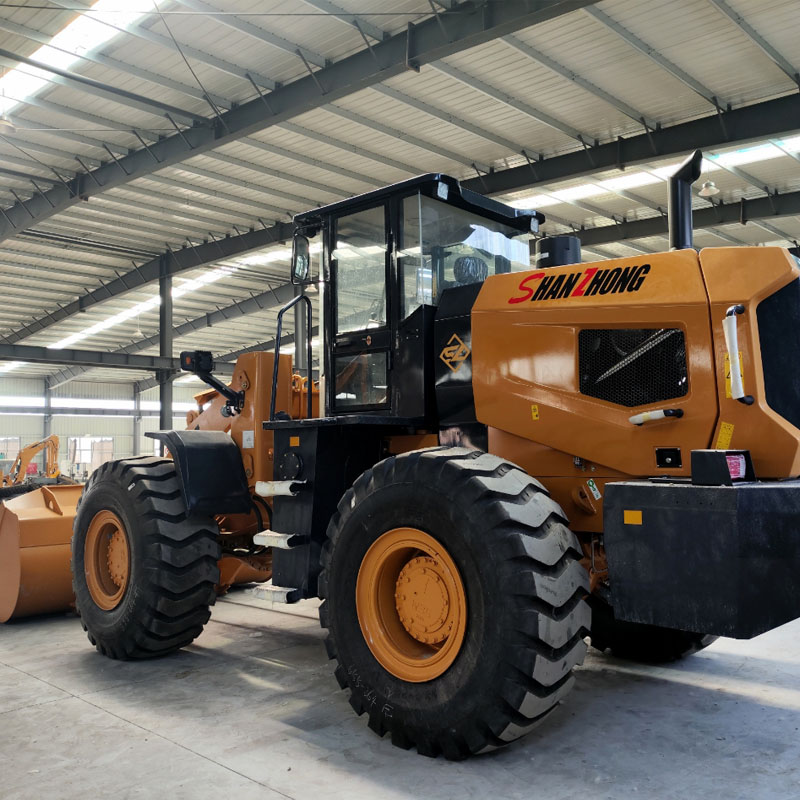

5 Ton Series Wheel Loader
Wheel Loader SZ950
total weight:16700 kg
rated load：5000kg
rated power：162 kW
Bucket capacity：3.0m3
Travel speed (forward/backward) 38 km/h
1) The central articulated frame has a small turning radius and good lateral stability, making it easy to work in narrow areas.

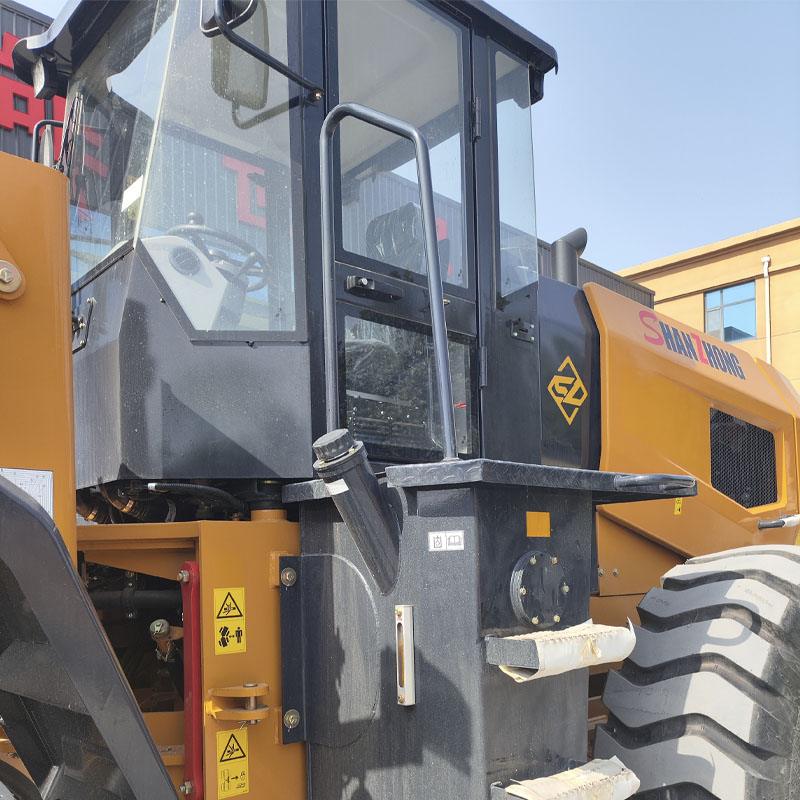

2) Humanized design, wide view and comfortable driving experience.
3) Four-wheel oil caliper brake system with gas cap is adopted to ensure driving safety; For parking, caliper disc brakes are used.
4) It uses Weichai Steyr diesel engine, which has high power, large torque reserve, low fuel consumption, low noise and reliable operation; A two-stage air filter is included as standard, which is suitable for dusty workplaces.
Wheel Loader SZ950
1) The central articulated frame has a small turning radius and good lateral stability, making it easy to work in narrow areas.
2) Humanized design, wide view and comfortable driving experience.
3) Four-wheel oil caliper brake system with gas cap is adopted to ensure driving safety; For parking, caliper disc brakes are used.
4) It uses Weichai Steyr diesel engine, which has high power, large torque reserve, low fuel consumption, low noise and reliable operation; A two-stage air filter is included as standard, which is suitable for dusty workplaces.
5) It has full hydraulic steering, gear shift speed and hydraulic control of working devices. The whole machine operates easily and flexibly, and its operation is smooth and reliable.
6) Dual pump fusion system and coaxial flow amplification system improve operating efficiency and economy.
7) Pilot control makes the operation more flexible and comfortable.

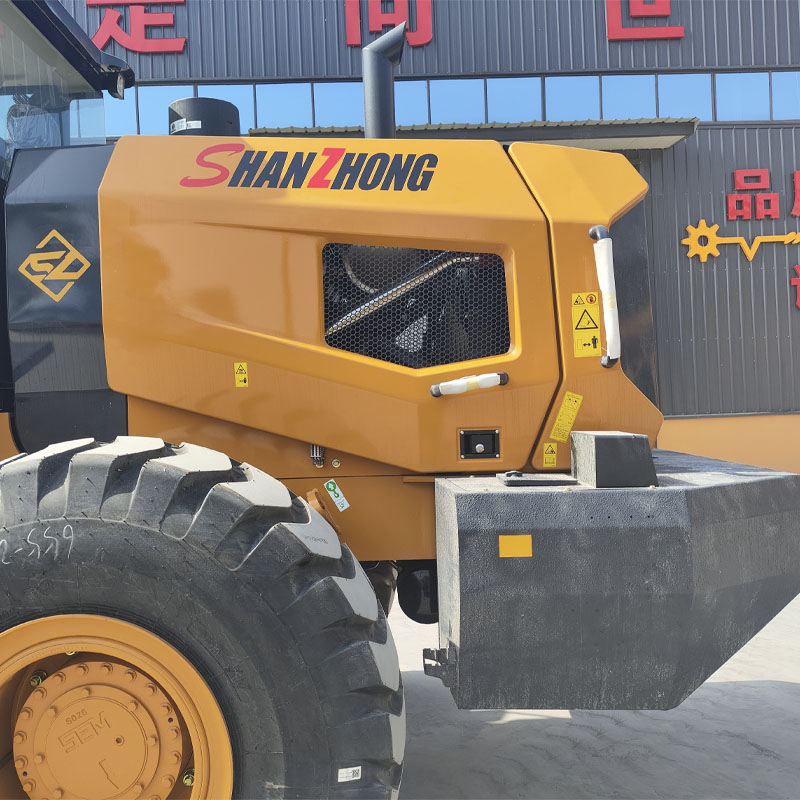

8) Folding engine hood with large side door steel structure, beautiful and elegant, easy to maintain.
9) Customized production can be provided to meet special construction and tendering needs.
Performance |
1 |
rated load |
5000 kg |
2 |
total weight |
16700kg |
|
3 |
Mechanical operating weight |
21700kg |
|
4 |
bucket capacity |
3.0m3 |
|
5 |
maximum traction force |
150kN |
|
6 |
maximum breakout force |
≥160 kN |
|
7 |
maximum ability score |
30° |
|
8 |
maximum unloading height |
3200 mm |
|
9 |
maximum unloading reach |
1200 mm |
|
10 |
overall dimensions (L×W×H) |
7763×3020×3450 mm |
|
11 |
minimum turning radius |
6201 mm |
|
Engine |
12 |
model |
Weichai WP10G220E22 |
13 |
type |
Euro II, inline 6-cylinder, 4-stroke engine with direct injection. |
|
14 |
NO. cylinder diameter*stroke |
6－126×130mm |
|
15 |
rated power |
162kW--2200r/min |
|
16 |
maximum torque |
920 Nm |
|
17 |
min. fuel consumption coefficient |
≦215 kWh |
|
Transmission system |
18 |
torque converter |
YJ375 |
19 |
gearbox mode |
Powershift, normally engaged direct transmission |
|
20 |
gears |
2 forward 1 back |
|
21 |
maximum speed |
38 km/h |
|
Drive axles |
22 |
main reducing spiral |
1st class bevel gear, gearbox |
23 |
deceleration mode |
Planetary gearbox 1st stage |
|
24 |
Wheelbase (mm) |
2920 mm |
|
25 |
wheel tread |
1400 mm |
|
26 |
Ground clearance |
480 mm |
|
Hydraulic system |
27 |
system operating pressure |
18MPa |
28 |
boom lifting time |
5.95±0.2 s |
|
29 |
total time |
10.95±0.5 s |
|
30 |
fuel tank capacity |
265l |
|
31 |
auto leveling function |
Yes |
|
Brake system |
32 |
service brake |
disc brake with pneumatic booster on 4 wheels |
33 |
Parking brake |
Manual disc brake |
|
Tire |
34 |
type specification |
23.5-25 |
35 |
front tire pressure |
0.4 MPa |
|
36 |
rear tire pressure |
0.35 MPa |
