excavator 18 tons

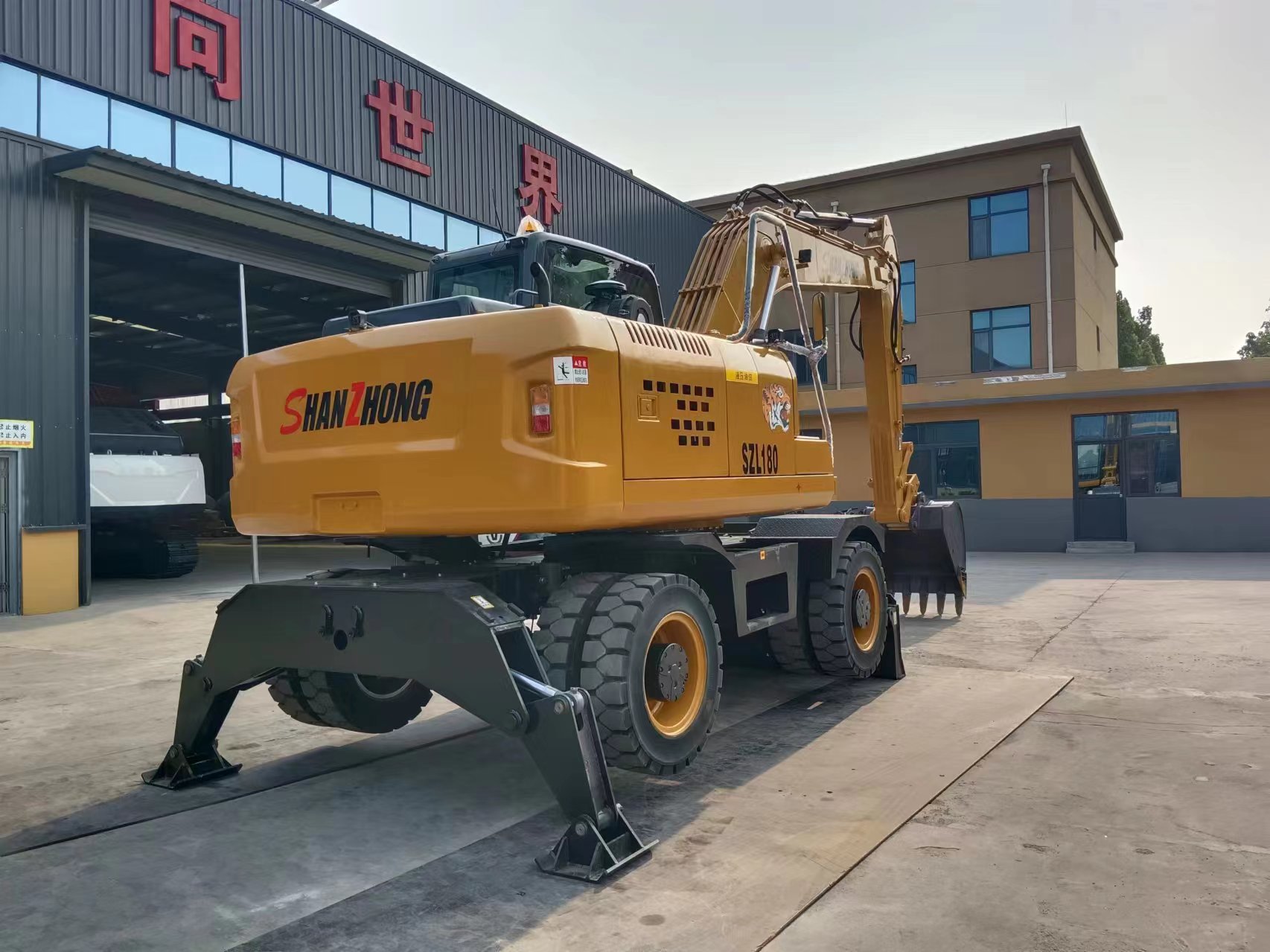

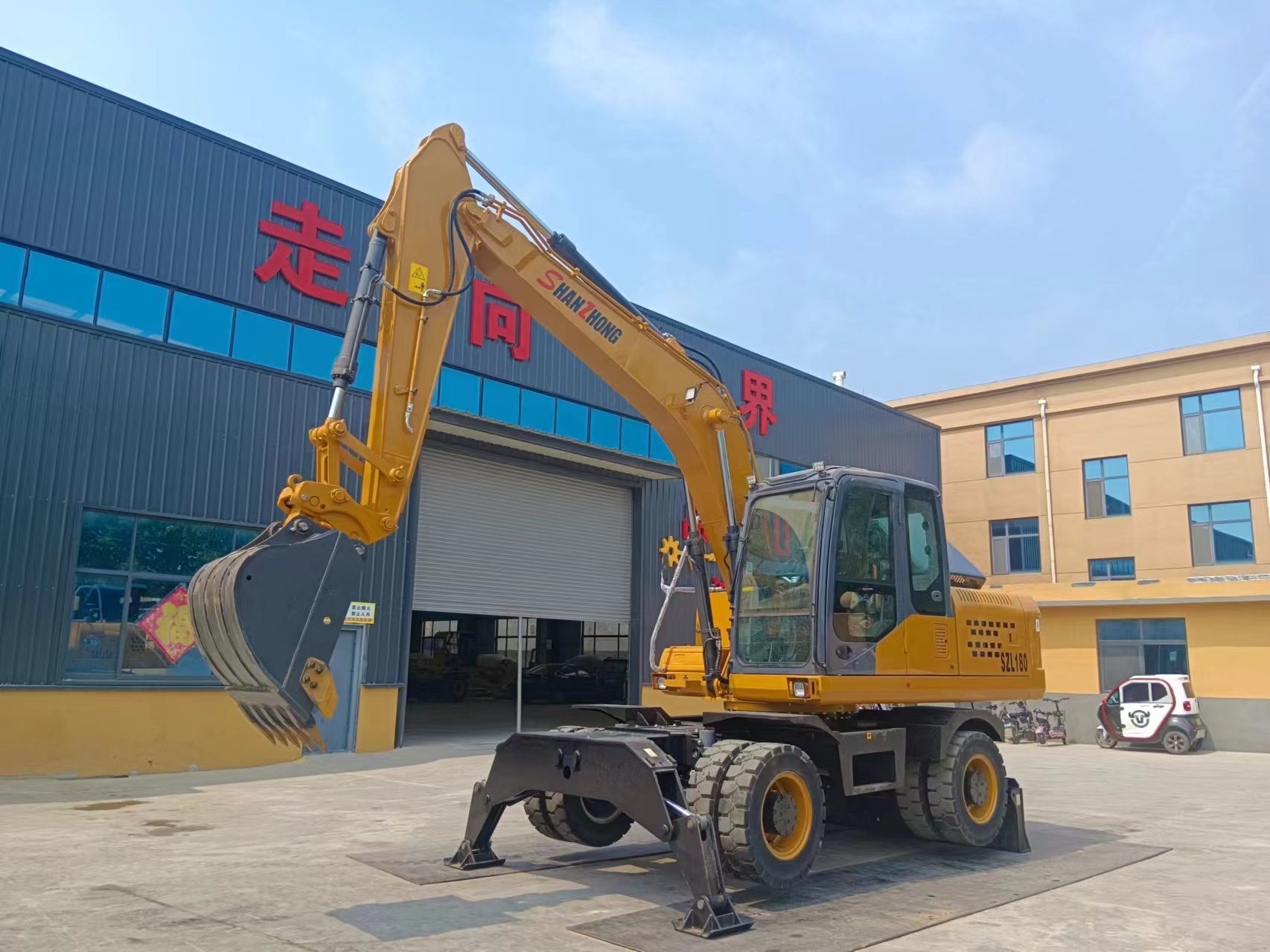

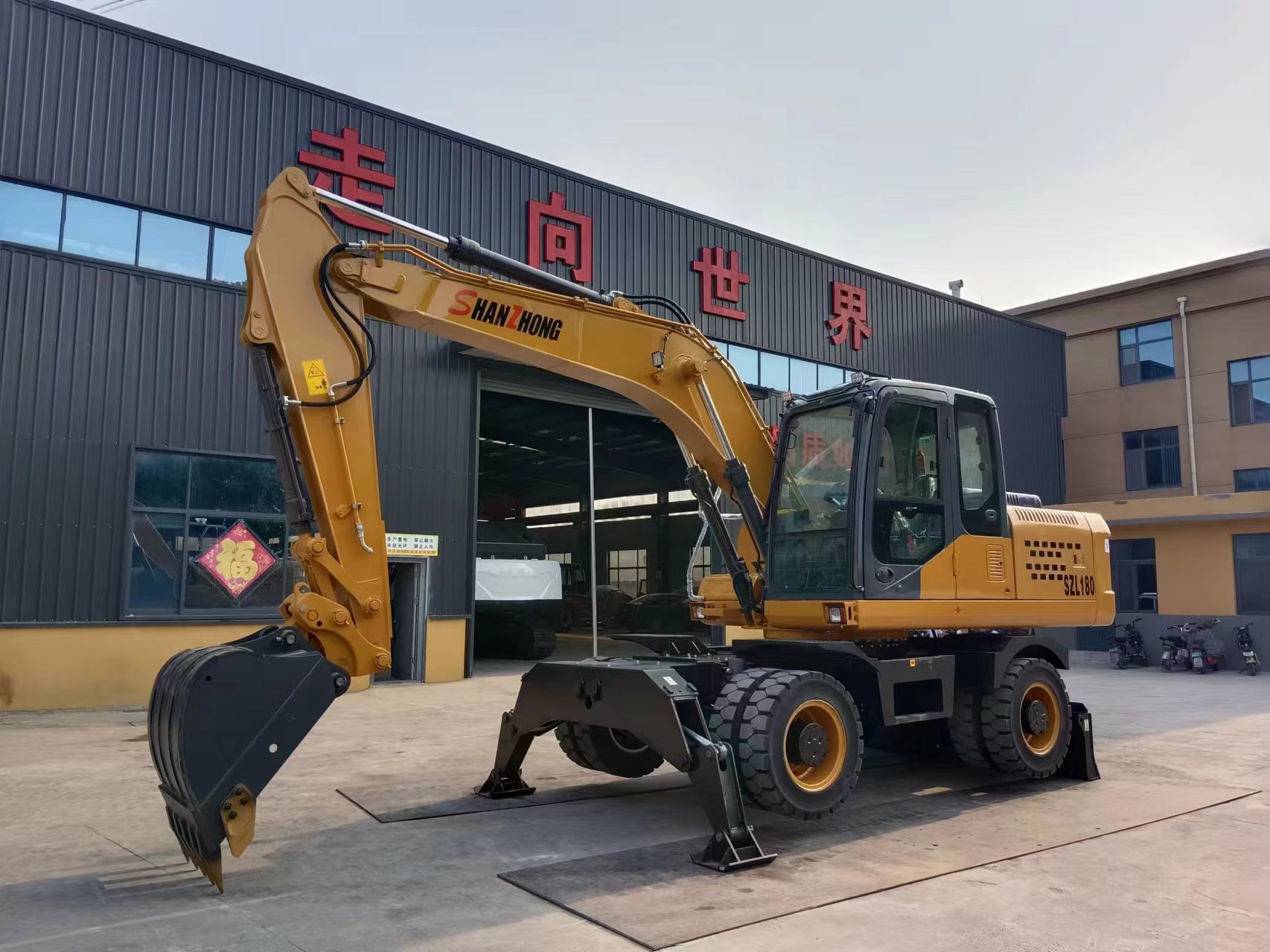

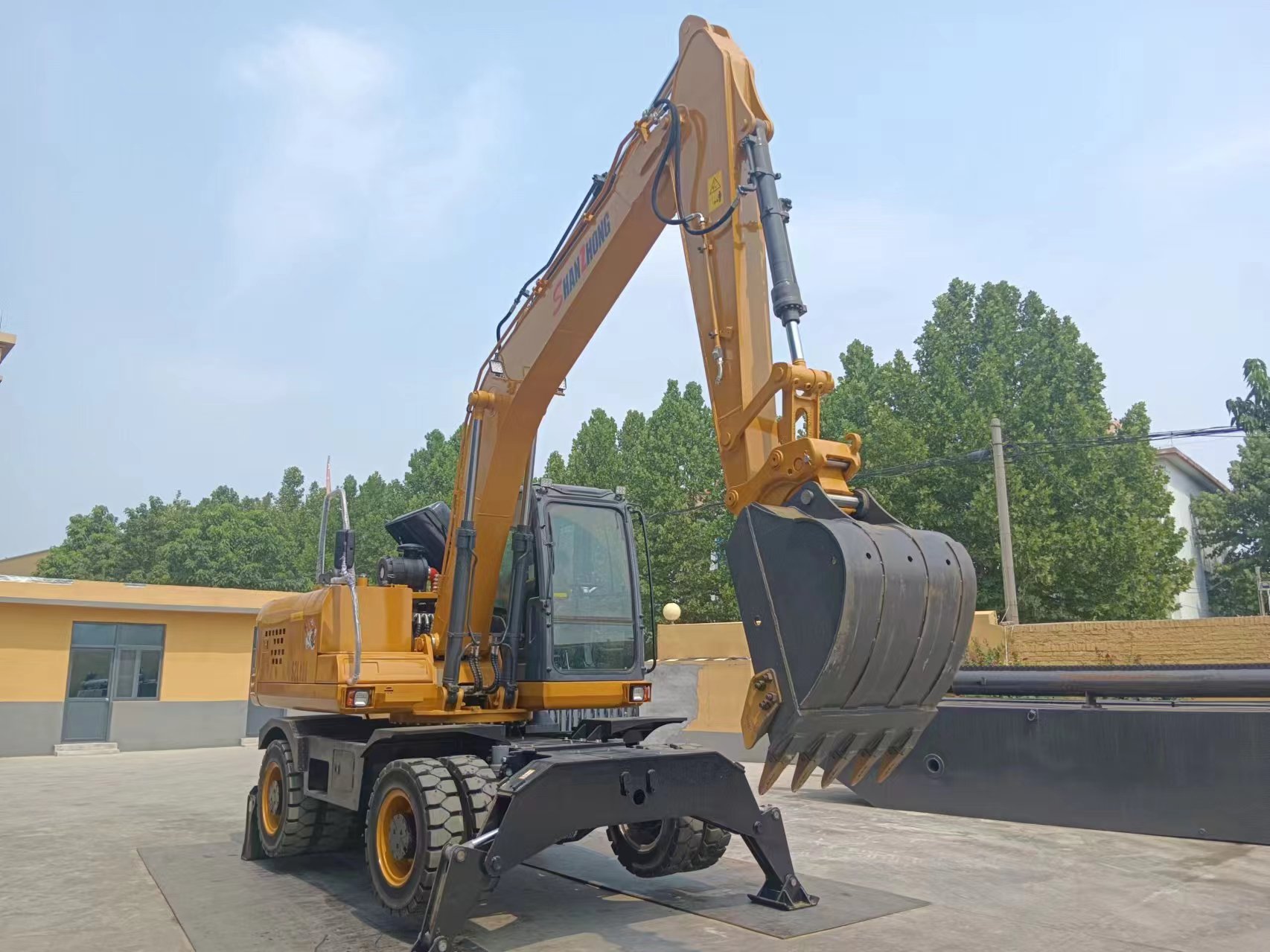

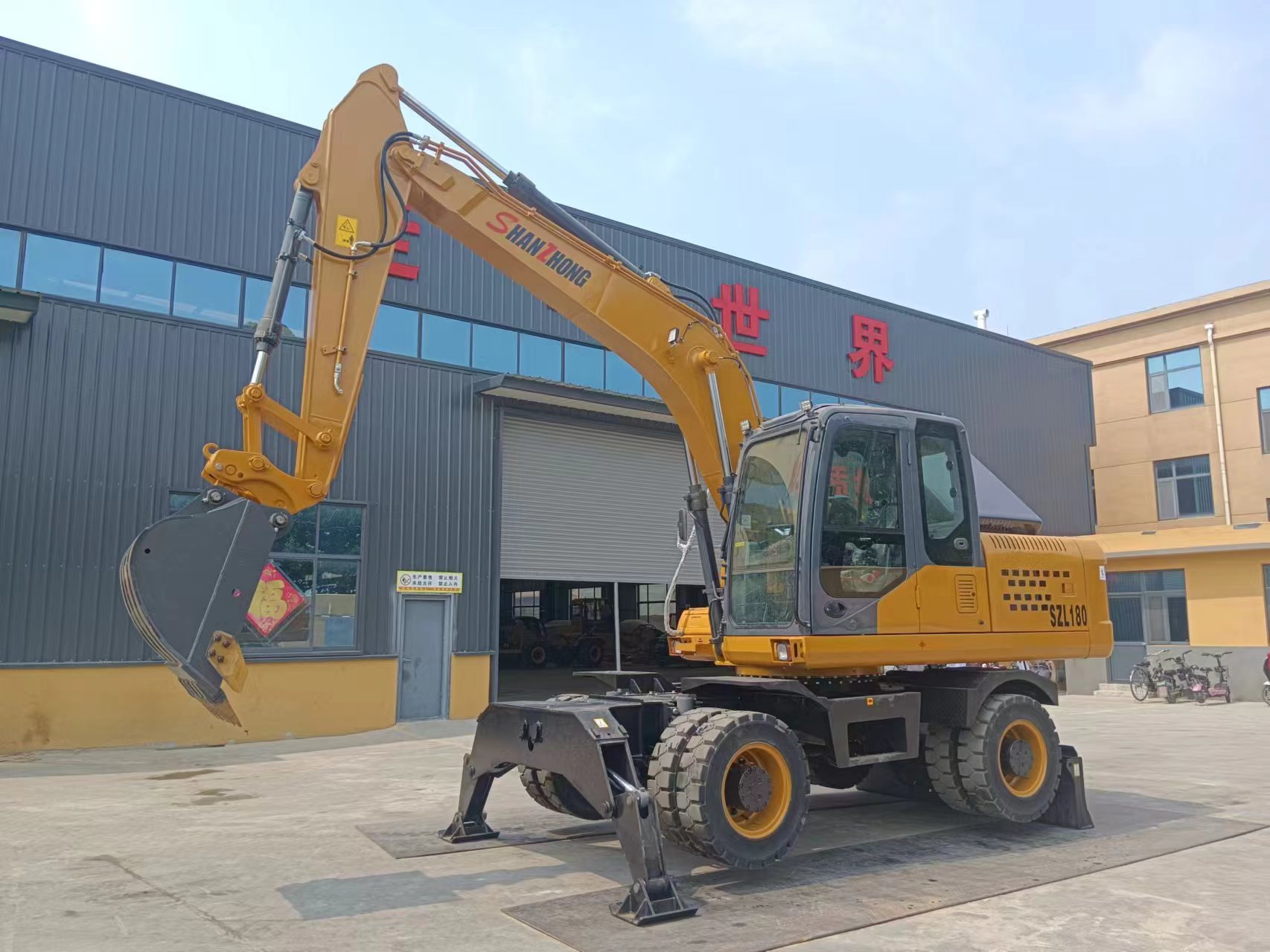

Wheeled excavator 18 tons
Country of origin: China
Model – SZL180
Length, mm – 8650
Width, mm – 2500
Height, mm – 3740
Bucket capacity, m³-0.7
Designed and manufactured by Shanzhong, SZL180 is specially designed for the cold climate of Russia and is a suitable replacement for European earthmoving equipment. It has high indicators of reliability, quality, production parameters, convenience and application. Excavators have a large number of replaceable working equipment (excavator buckets of various powers and shapes, clamshell buckets, hydraulic hammers, rippers, etc.).
Fully imported hydraulic system using negative flow control system.
Intelligent control, comfortable driving, simple operation, all-wheel drive, hydraulic oil brake on all four wheels.
Rugged design and durable materials, more suitable for harsh working environment.
Designed and manufactured by Shanzhong, SZL180 is specially designed for the cold climate of Russia and is a suitable replacement for European earthmoving equipment. It has high indicators of reliability, quality, production parameters, convenience and application. Excavators have a large number of replaceable working equipment (excavator buckets of various powers and shapes, clamshell buckets, hydraulic hammers, rippers, etc.).
Main advantages and features of the SZL180 excavator and standard equipment:
l The hydraulic system is imported from Korea.
l Cummins liquid-cooled, direct-injection, turbocharged engine meets international environmental standards.
l Hydraulic drive system imported from South Korea allows unlimited combinations in the operating cycle with high operating precision and minimal power loss. Swing priority traffic distribution ensures optimal performance.
l Standard equipment includes fenders that completely cover the front and rear wheels, protecting the excavator from dust, as well as a windshield. Mud flaps protect machines, other vehicles and people working around the excavator from rocks and debris kicked up by the wheels.
l A new design cabin, a modern interior, more compact and ergonomic control panels, a wide door with an integrated window, a large glass area providing full visibility of the working area, an improved system of air ducts for glass blowing and air ducts for heating/air conditioning the interior. The basic configuration includes an air conditioner (heater-air conditioner), audio equipment, and an ergonomic operator's seat with a seat belt.
l Install additional work lights inside the cab hood and work lights on the work equipment to effectively illuminate the work area.
l Hood system providing full access to all components and assemblies, making maintenance convenient and fast. The excavator is characterized by high reliability, extended maintenance intervals, and fuel efficiency.
l Engine preheater.
SZL180 Wheeled Excavator |
|||
Parameters: |
|||
Brand: |
Shanzhong |
Model: |
SZL180 |
Engine: |
Clinders Cummins 6 |
Power: |
133 KW/2200 RPM |
Weight: |
17500kg |
Bucket capacity: |
0.7 m³ |
Size |
|||
Delivery length: |
8650 mm |
Boom length: |
4600 mm |
Delivery height: |
3740 mm |
Arm Length: |
2500 mm |
Overall Width: |
2500 mm |
Bulldozer plate height: |
590 mm |
Turntable width: |
2450 mm |
Bulldozer plate height: |
2700 mm |
Wheelbase: |
2670 mm |
Lifting height of bulldozer plate: |
450 mm |
Tread: |
1980 mm |
Bulldozer support height: |
110 mm |
Radius, center of rotation to rear: |
2400 mm |
Bulldozer support height: |
380 mm |
Counterweight ground clearance: |
1350 mm |
Minimum ground clearance: |
270 mm |
Hydraulic tank capacity: |
180l |
Fuel tank capacity: |
220l |
Working Parameter |
|||
Maximum digging radius: |
8750 mm |
Maximum digging height: |
9422 mm |
Maximum digging depth: |
5525 mm |
Maximum digging height: |
7200 mm |
Hydraulic system pressure: |
32 MPa |
Hydraulic flow: |
2*160 l/min |
Bucket digging force: |
92.5kn |
Hand digging force: |
60kn |
Rotation speed: |
13-14 rpm |
Travel speed: |
28-35km/h |
Climbability: |
≥60% |
