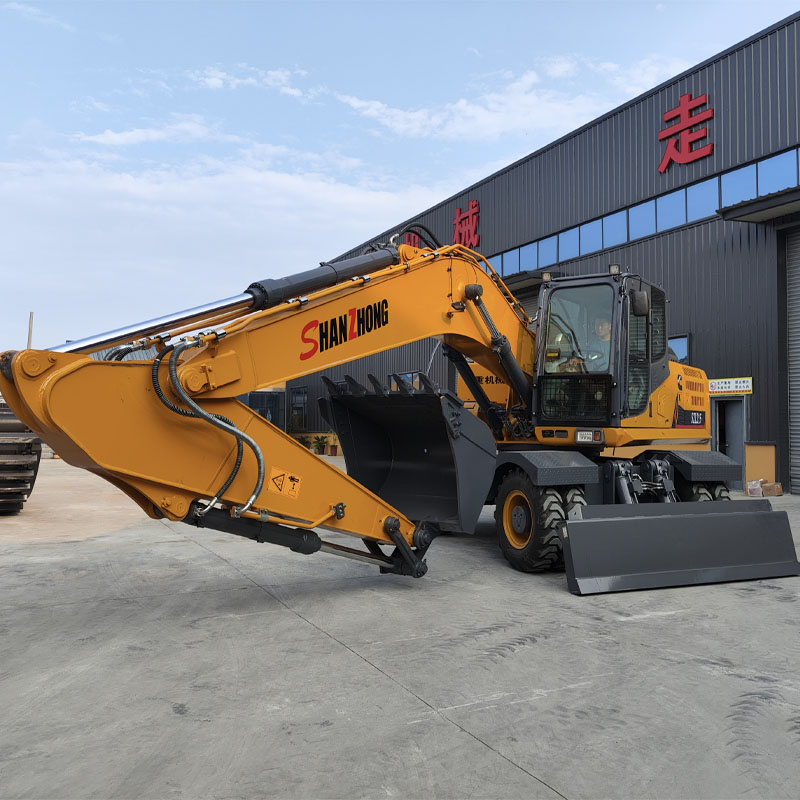

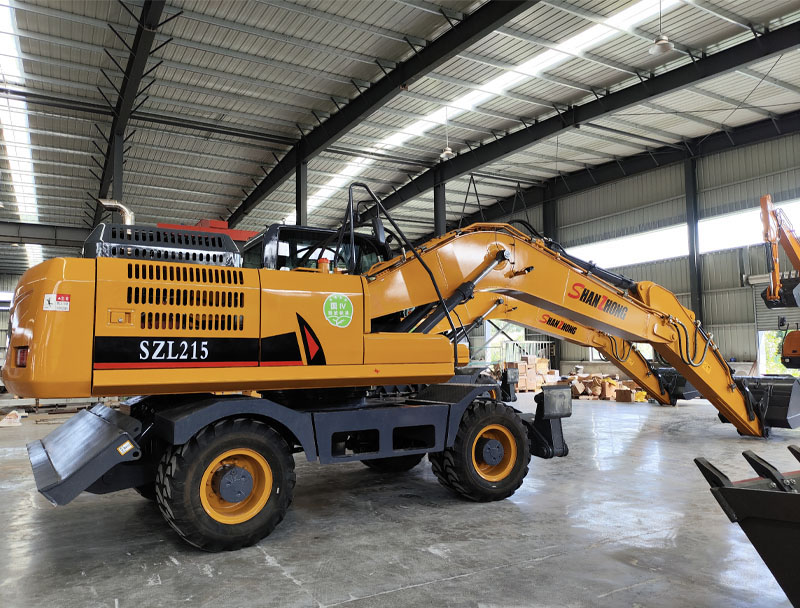

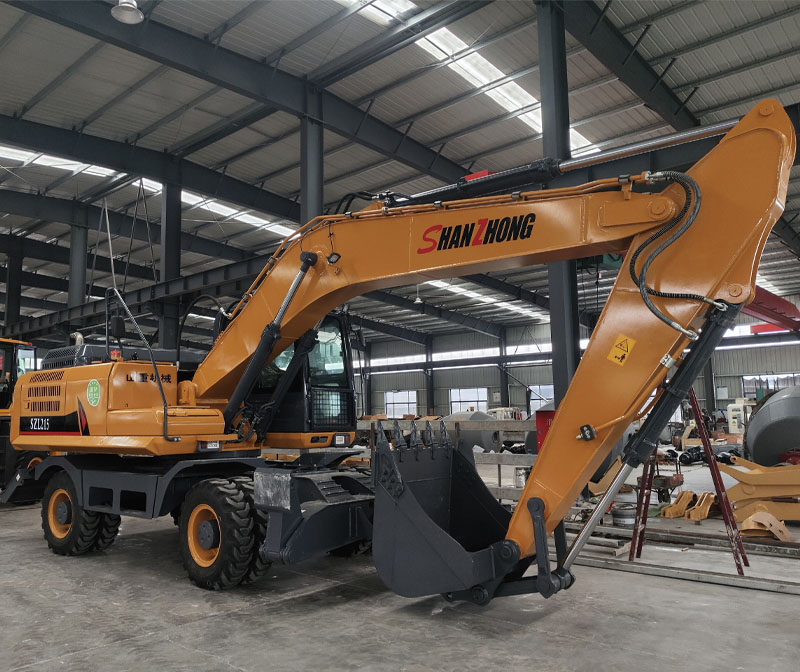

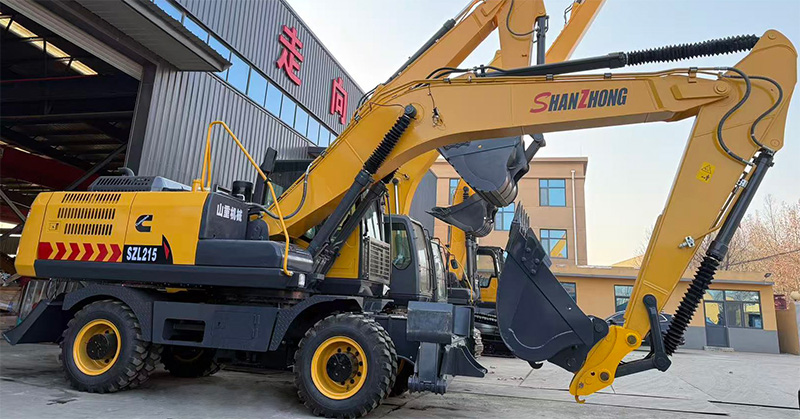

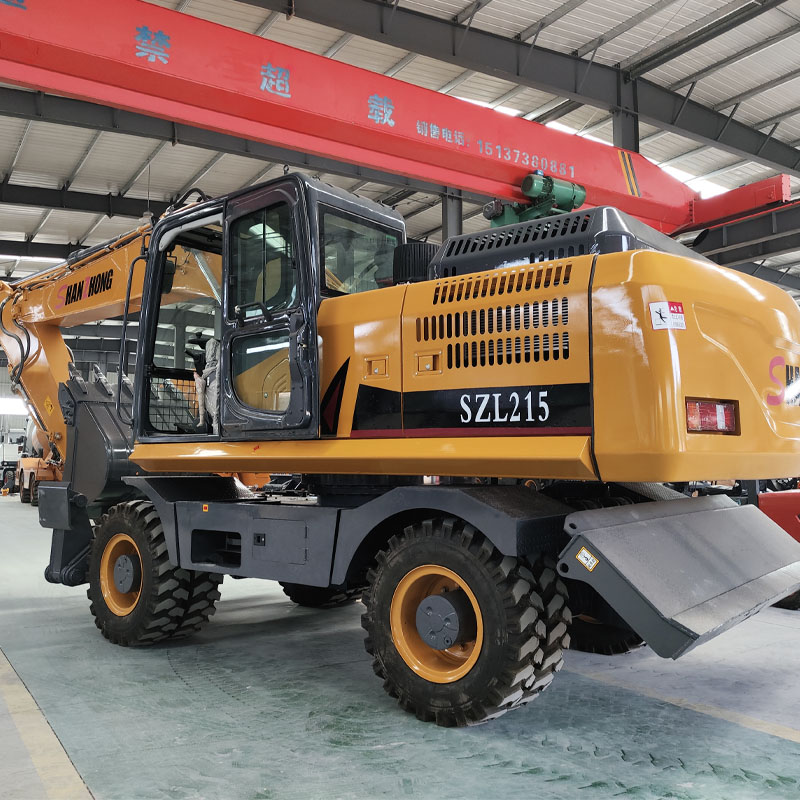

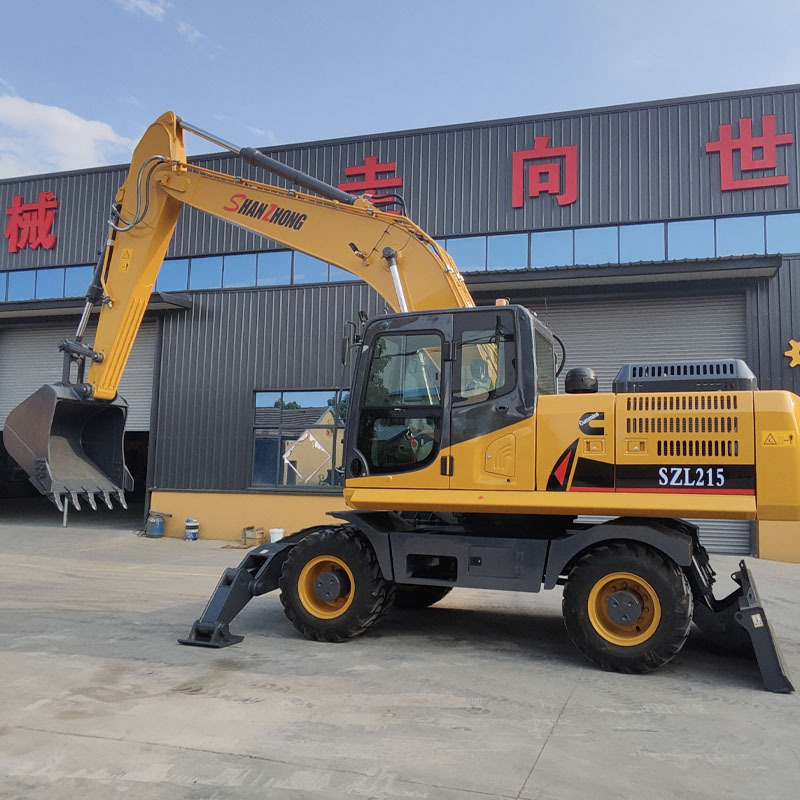

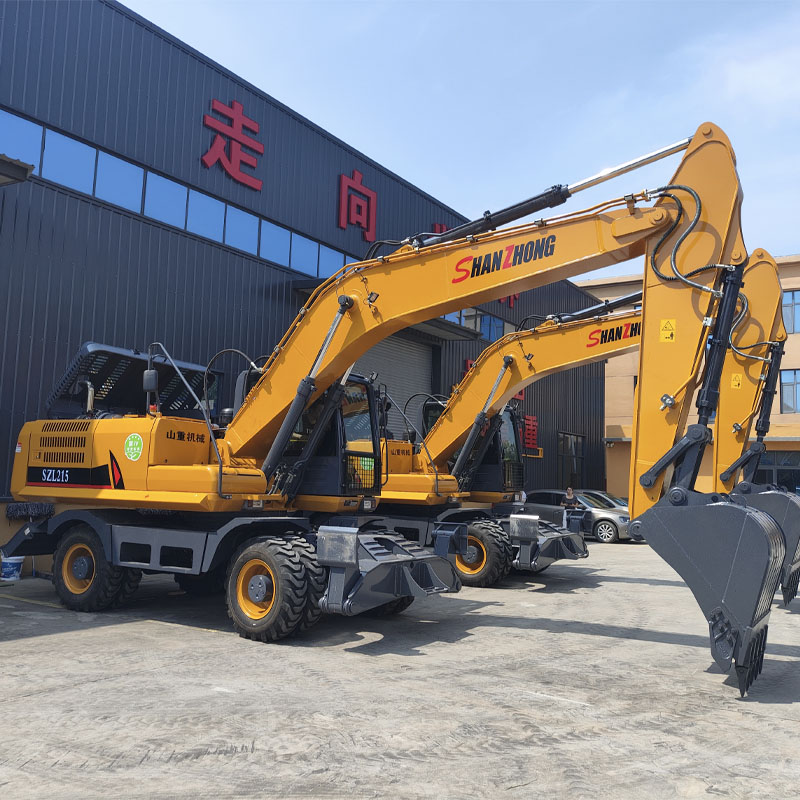

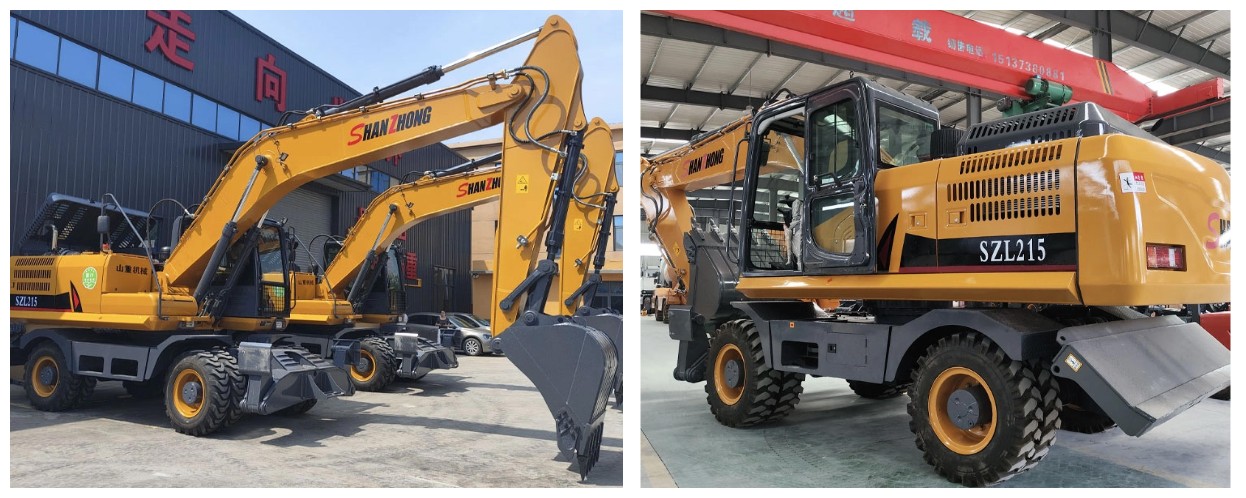

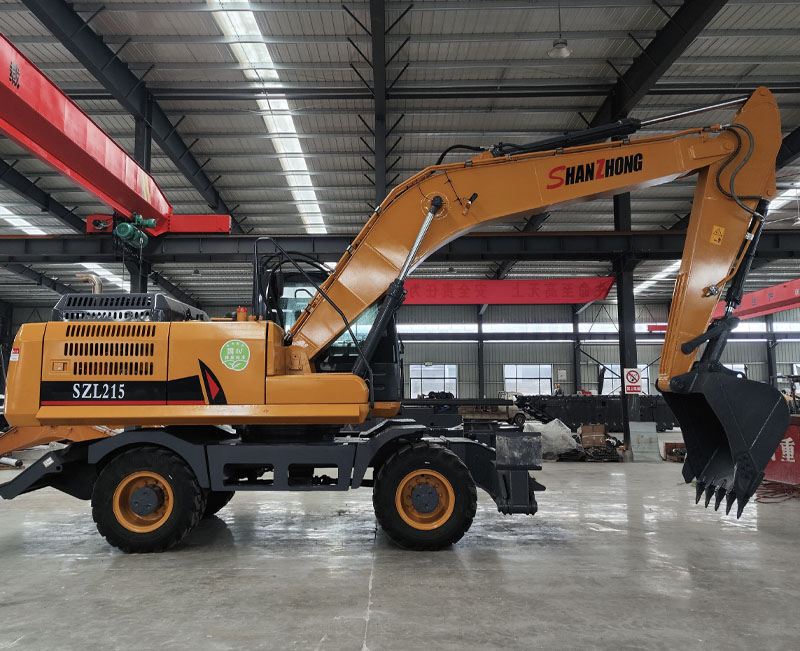

SZL215 Wheel Excavator
Wheeled excavator 21 ton
Country of origin: China
Model – SZL215
Length, mm – 9700
Width, mm – 2730
Height, mm – 3340
Engine model – 6BTAA5.9

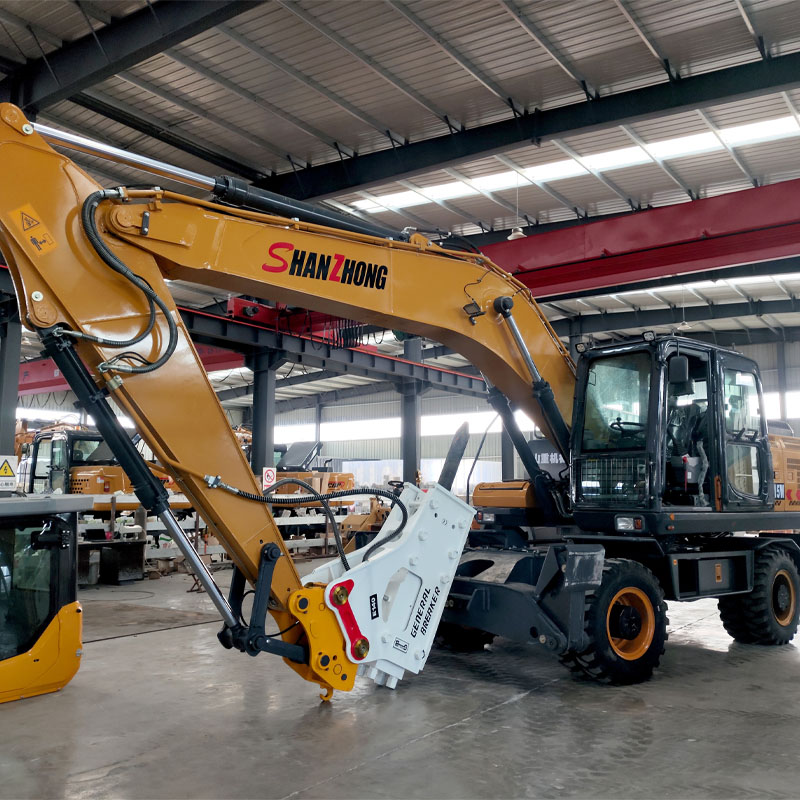

Model SZL215, designed and produced by Shanzhong, is specially designed for the cold climate of Russia, and is a suitable replacement for European earthmoving equipment. It has high indicators of reliability, quality, production parameters, convenience and application. Excavators have a large number of replaceable working equipment (excavator buckets of various powers and shapes, clamshell buckets, hydraulic hammers, rippers, etc.).
Main advantages and features of the SZL215 excavator and standard equipment:
l The hydraulic system is imported from Korea.
l Cummins liquid-cooled, direct-injection, turbocharged engine meets international environmental standards.
l Hydraulic drive system imported from South Korea allows unlimited combinations in the working cycle with high operating precision and minimal power loss. Swing priority traffic distribution ensures optimal performance.
l Standard equipment includes fenders that completely cover the front and rear wheels, protecting the excavator from dust, as well as a windshield. Mud flaps protect machines, other vehicles and people working around the excavator from rocks and debris kicked up by the wheels.
l A new design cabin, a modern interior, more compact and ergonomic control panels, a wide door with an integrated window, a large glass area providing full visibility of the working area, an improved system of air ducts for glass blowing and air ducts for heating/air conditioning the interior. The basic configuration includes a climate control system (heater-air conditioner), audio equipment, and an ergonomic operator's seat with a seat belt.
l Install additional work lights inside the cab hood and work lights on the work equipment to effectively illuminate the work area.

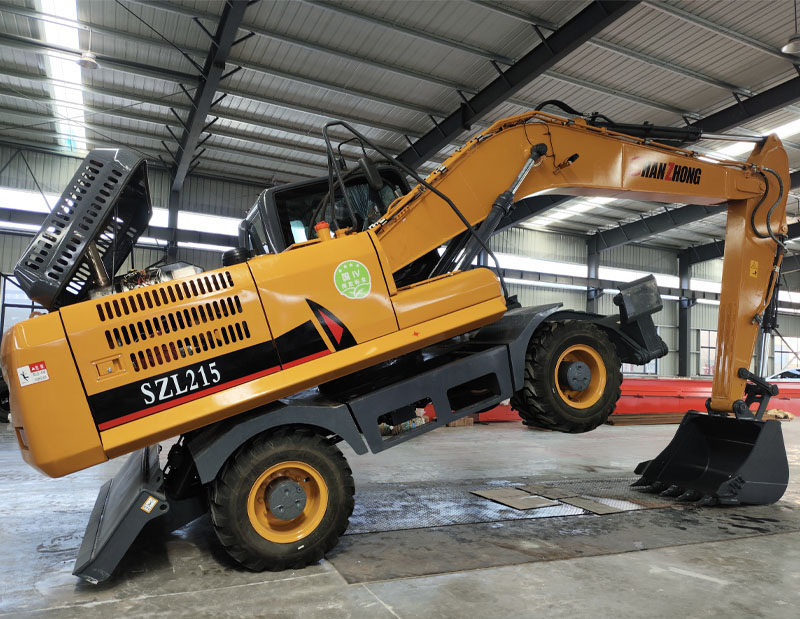

l Hood system providing full access to all components and assemblies, making maintenance convenient and fast. The excavator is characterized by high reliability, extended maintenance intervals, and fuel efficiency.
l Engine preheater.
SZL215 Wheeled Excavator |
|||
Parameters: |
|||
Brand: |
Shanzhong |
Model: |
SZL215 |
Engine: |
Klinders Cummins 6 6BTAA5.9-S178 |
Power: |
133 KW/2200 RPM |
Weight: |
21000kg |
Bucket capacity: |
1.0 m³ |
Size |
|||
Delivery length: |
9700 mm |
Boom length: |
5650 mm |
Delivery height: |
3340 mm |
Arm Length: |
2920 mm |
Overall Width: |
2730 mm |
Bulldozer plate height: |
560 mm |
Turntable width: |
2620 mm |
Bulldozer plate height: |
2600 mm |
Wheelbase: |
2840 mm |
Lifting height of bulldozer plate: |
420 mm |
Tread: |
1980 mm |
Bulldozer support height: |
110 mm |
Radius, center of rotation to rear: |
2750 mm |
Bulldozer support height: |
380 mm |
Counterweight ground clearance: |
1259 mm |
Minimum ground clearance: |
345 mm |
Hydraulic tank capacity: |
215l |
Fuel tank capacity: |
350l |
Working Parameter |
|||
Maximum digging radius: |
9700 mm |
Maximum digging height: |
10600 mm |
Maximum digging depth: |
6350 mm |
Maximum digging height: |
7800 mm |
Hydraulic system pressure: |
34.3 MPa |
Hydraulic flow: |
2*231.7 l/min |
Bucket digging force: |
134/126kn |
Hand digging force: |
99/93kn |
Rotation speed: |
0-12 rpm |
Travel speed: |
28-35km/h |
Climbability: |
≥60% |
