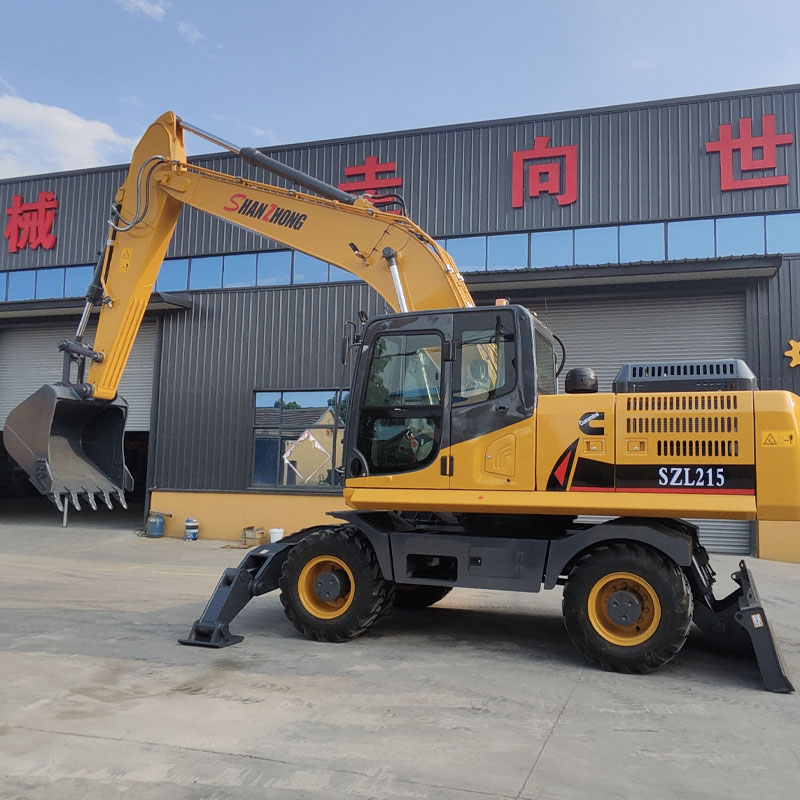

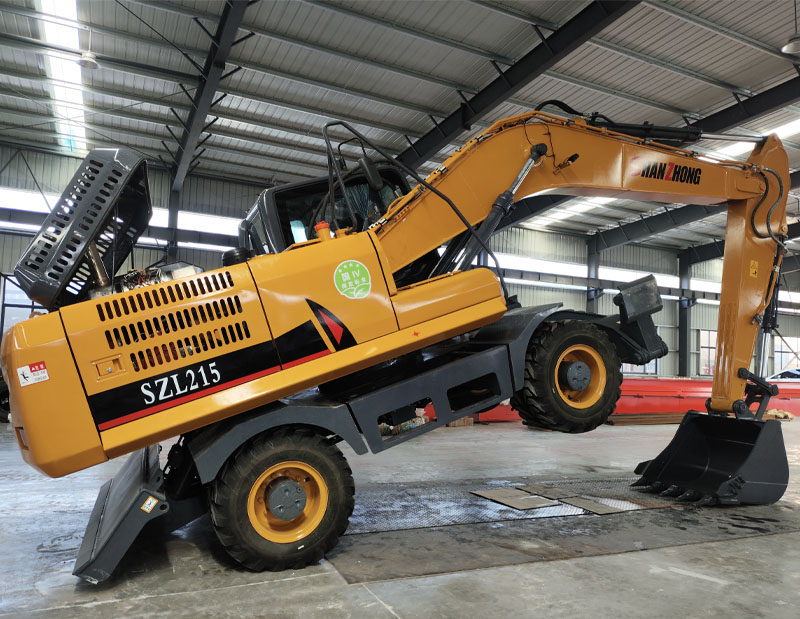

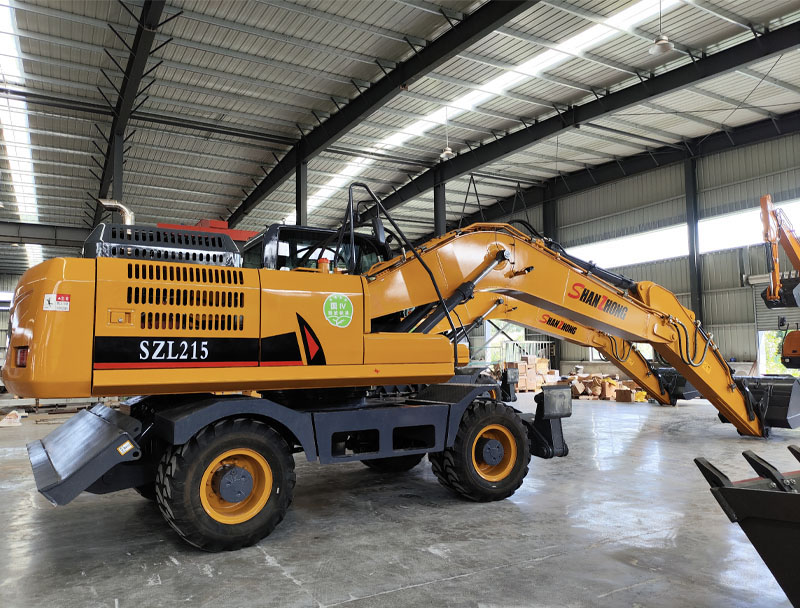

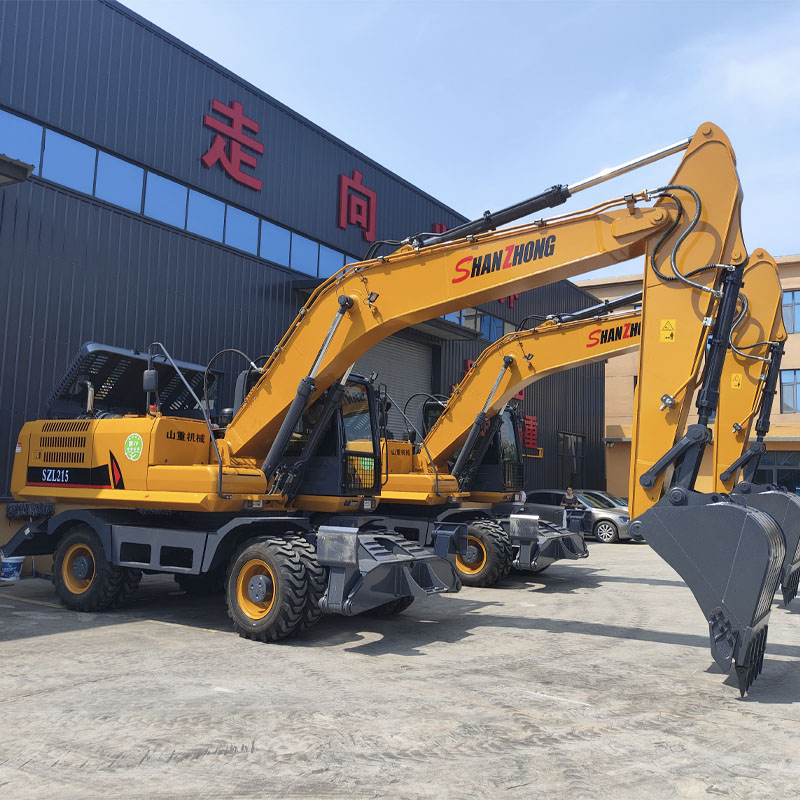

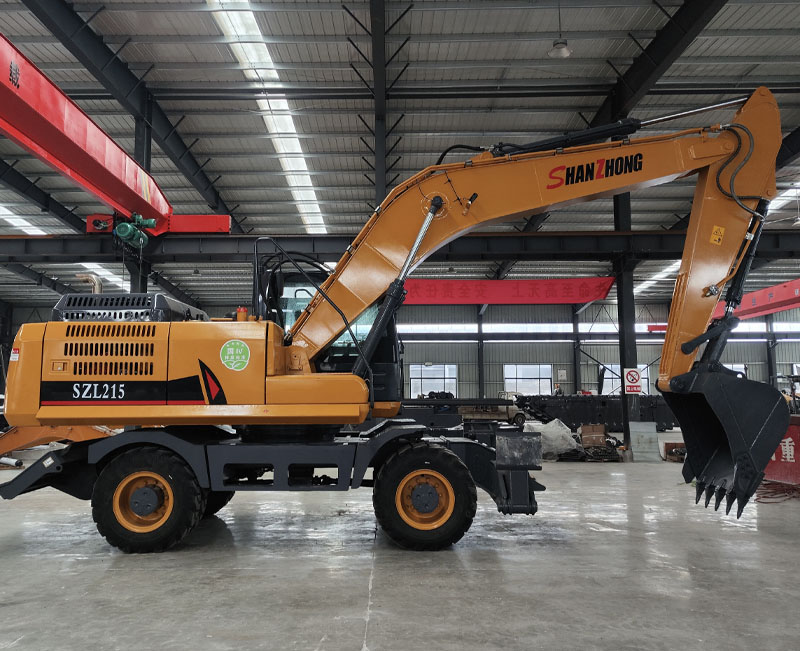

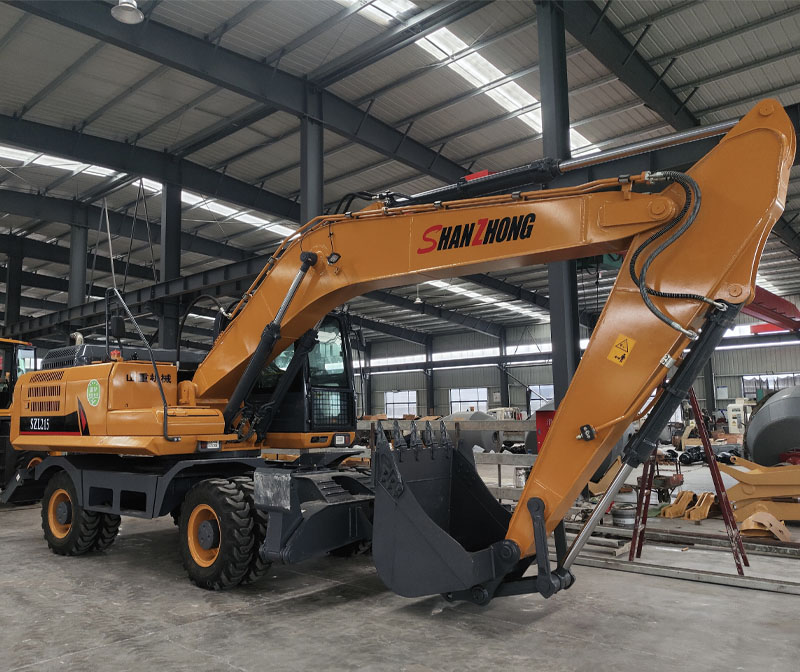

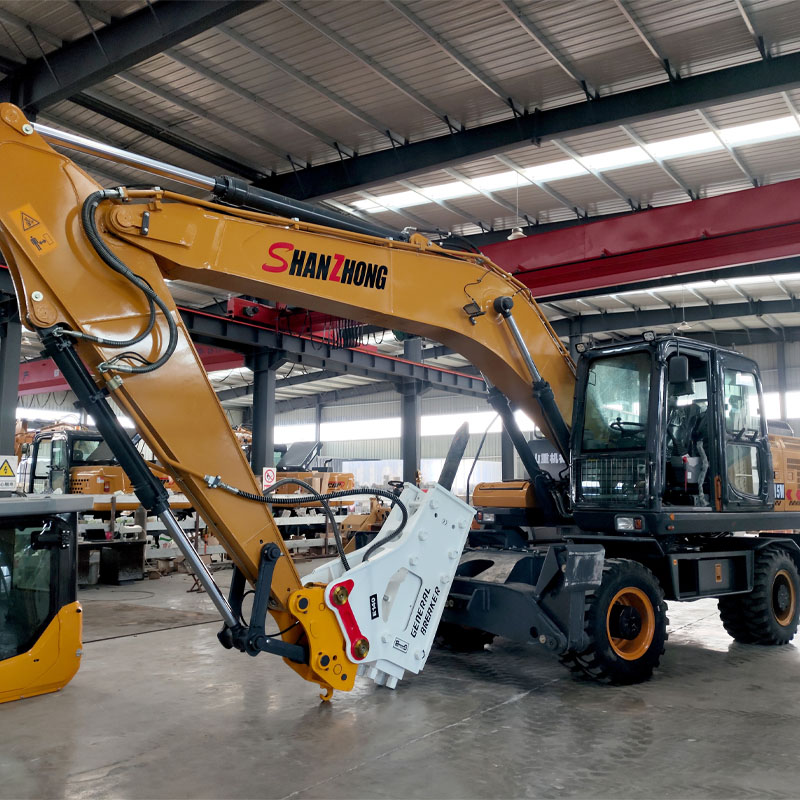

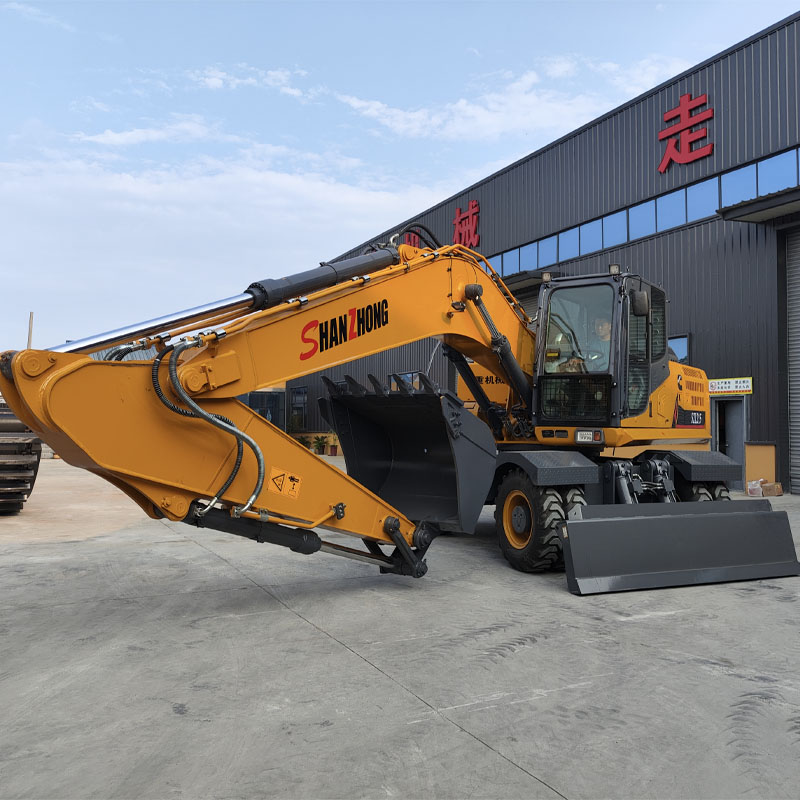

21 ton series wheeled excavator with hydraulic hammer

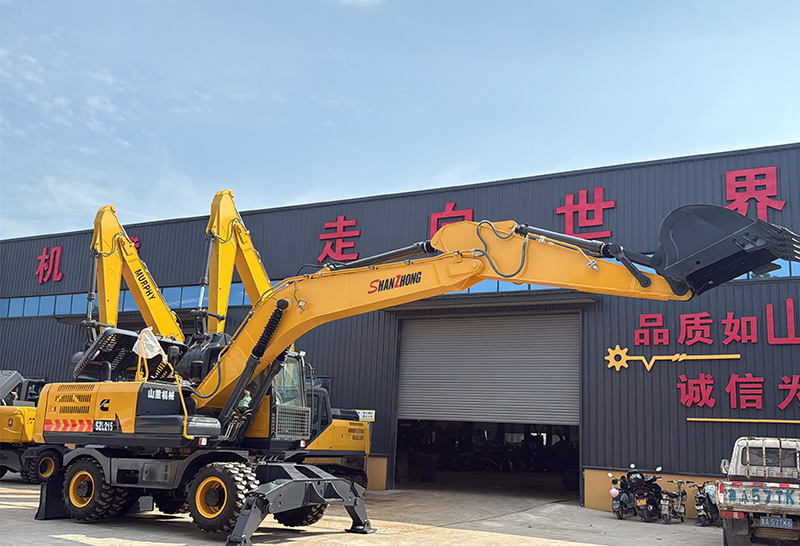

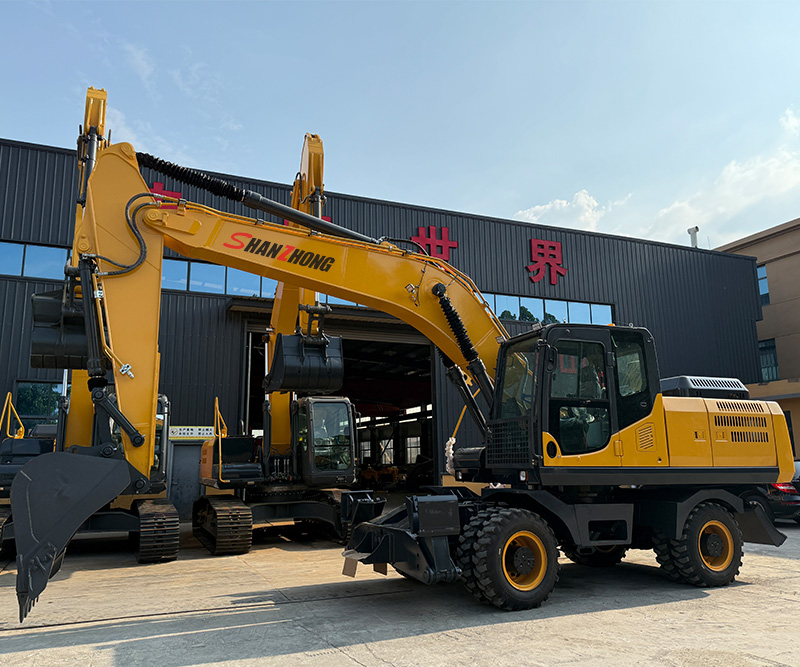

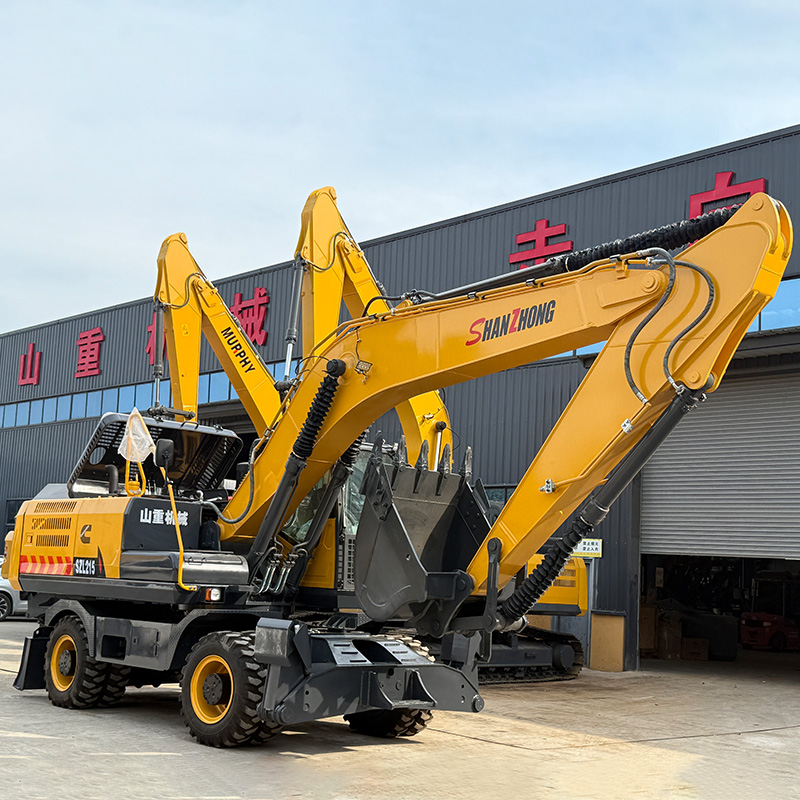

SZL215 Wheel Excavator
Country of origin: China
Model – SZL215
Length, mm – 9700
Width, mm – 2900
Height, mm – 3340
Engine model – 6BTAA5.9
The overall performance of the hydraulic system is reasonably matched with the engine output power, which greatly reduces energy loss.
Intelligent control, all-wheel drive, all-wheel hydraulic oil brakes and stable driving control system.
Cummins engine with electronic injection, turbocharging and fuel cooling system, high fuel efficiency, low fuel consumption and durability.
Features and benefits of the SZL215 Wheel Excavator
The overall performance of the hydraulic system is optimally matched to the engine output, significantly reducing energy losses and increasing the overall efficiency of the equipment.
The vehicle is equipped with an intelligent control system, all-wheel drive, hydraulic oil brakes on all wheels, and a stable motion control system, which ensures high maneuverability, safety, and a smooth ride even on difficult road surfaces.
The excavator is equipped with a Cummins diesel engine with electronic fuel injection, turbocharging, and fuel cooling. This model boasts improved fuel efficiency, low fuel consumption, and a long, trouble-free service life, optimizing operating costs.
The SZL215 wheeled excavator, developed and manufactured by Shanzhong, is designed specifically for use in Russia's harsh, cold climates. It offers a worthy alternative to European earthmoving equipment, combining high reliability, impeccable quality, optimal performance, enhanced operating comfort, and versatility. Furthermore, the model is compatible with a wide range of interchangeable attachments: buckets of varying capacities and shapes, grapples, hydraulic hammers, rippers, and other accessories, expanding its application range for a variety of construction and earthmoving projects.
Key advantages and features of the SZL215 excavator and standard equipment:
l The hydraulic system is imported from Korea.
l Cummins engine, equipped with liquid cooling, direct injection and turbocharging, meets international environmental protection standards.
The hydraulic drive system, imported from South Korea, provides an unlimited number of cycle combinations with high operating precision and minimal power loss. Swing-priority traffic distribution ensures optimal performance.
l Standard equipment includes fenders that completely cover the front and rear wheels, protecting the excavator from dust, as well as a windshield. Mudguards protect machines, other vehicles, and people working around the excavator from rocks and debris kicked up by the wheels.
The newly designed cab features a modern interior, more compact and ergonomic control panels, a wide door with an integrated window, large glass areas providing full visibility of the work area, an improved system of window defrosters and interior heating/air conditioning ducts. The standard configuration includes a climate control system (heater/air conditioner), audio preparation, and an ergonomic operator seat with a seat belt.
l Install additional work lights inside the cab shield and work lights on the work equipment to effectively illuminate the work area.
The hooded system provides full access to all components and assemblies, making maintenance quick and easy. The excavator boasts high reliability, extended service intervals, and fuel efficiency.
l Pre-heater for the engine.
Frequently Asked Questions (FAQ)
1. Is the SZL215 wheeled excavator suitable for long-distance transportation between construction sites?
Yes. As a professional 21 ton series wheeled excavator, the SZL215 is designed for road travel, providing safe and fast
transportation over long distances between construction sites on ordinary roads without the need for special
vehicles, which significantly reduces the time and costs of transshipment.
2.Can this 21 ton wheel excavator equipment be used with different attachments to perform
various operations?
Absolutely. The SZL215 wheeled excavator is equipped with professional hydraulic and mechanical interfaces compatible with the full
a wide range of basic excavator attachments. Users can quickly change attachments to suit their needs.
project, implementing a variety of operations and expanding application scenarios.
3. What is the stability of the SZL215 wheel excavator when handling heavy loads?
The SZL215 wheeled excavator features an optimized chassis and counterweight design, as well as reinforced supporting structures, ensuring
Excellent stability during excavation and loading/unloading operations with heavy loads. It is capable of stable operation in difficult conditions,
demonstrating stability comparable to high-end crawler excavators.
4.What is the maintenance difficulty of this 21 ton series wheel excavator?
The SZL215 wheeled excavator has a user-friendly layout, with key service points centralised and easy to access.
to components. Daily maintenance and care are simple and effective, reducing time and labor costs, even for users with limited
limited experience in technical maintenance.
SZL215 Wheeled Excavator |
|||
Parameters: |
|||
Brand: |
Shanzhong |
Model: |
SZL215 |
Engine: |
Cummins 6 Clinders 6BTAA5.9-C178 |
Power: |
153 kW/2200 rpm |
Weight: |
21000kg |
Bucket capacity: |
1.0 m³ |
Size |
|||
Delivery length: |
9700 mm |
Boom length: |
5650 mm |
Delivery height: |
3340 mm |
Arm Length: |
2920 mm |
Overall Width: |
2900 mm |
Height of bulldozer plate: |
770 mm |
Rotary table width: |
2800 mm |
Height of bulldozer plate: |
2450 mm |
Wheelbase: |
2880 mm |
Lifting height of bulldozer plate: |
580 mm |
Tread: |
1920 mm |
Height of bulldozer support: |
110 mm |
Radius, turning center to rear: |
2800 mm |
Height of bulldozer support: |
380 mm |
Counterweight ground clearance: |
1220 mm |
Minimum ground clearance: |
325 mm |
Hydraulic tank capacity: |
215l |
Fuel tank capacity: |
350l |
Working Parameter |
|||
Maximum digging radius: |
9700 mm |
Maximum digging height: |
10,000 mm |
Maximum digging depth: |
6350 mm |
Maximum digging height: |
7200 mm |
Hydraulic system pressure: |
34.3 MPa |
Hydraulic system flow: |
2*231.7 l/min |
Bucket digging force: |
134/126kN |
Hand digging force: |
99/93kn |
Rotation speed: |
0-12 rpm |
Travel speed: |
28-35 km/h |
Gradeability: |
≥60% |
