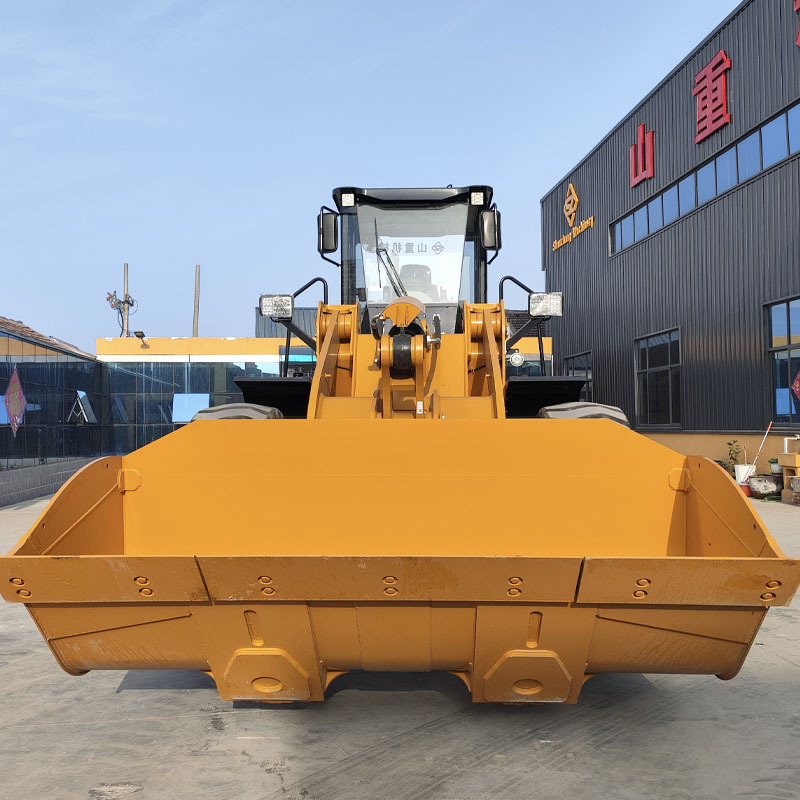

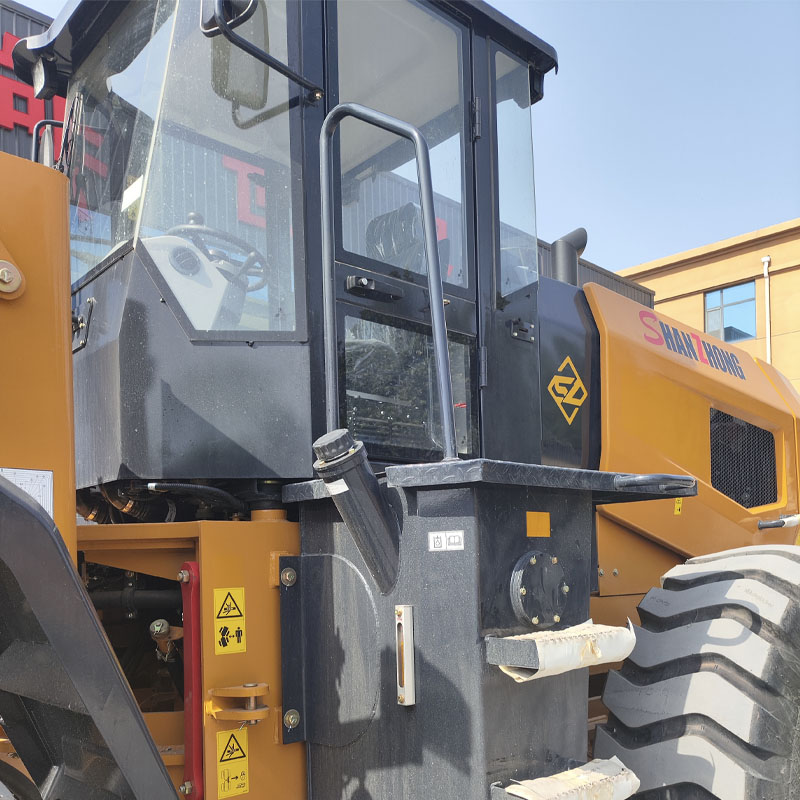

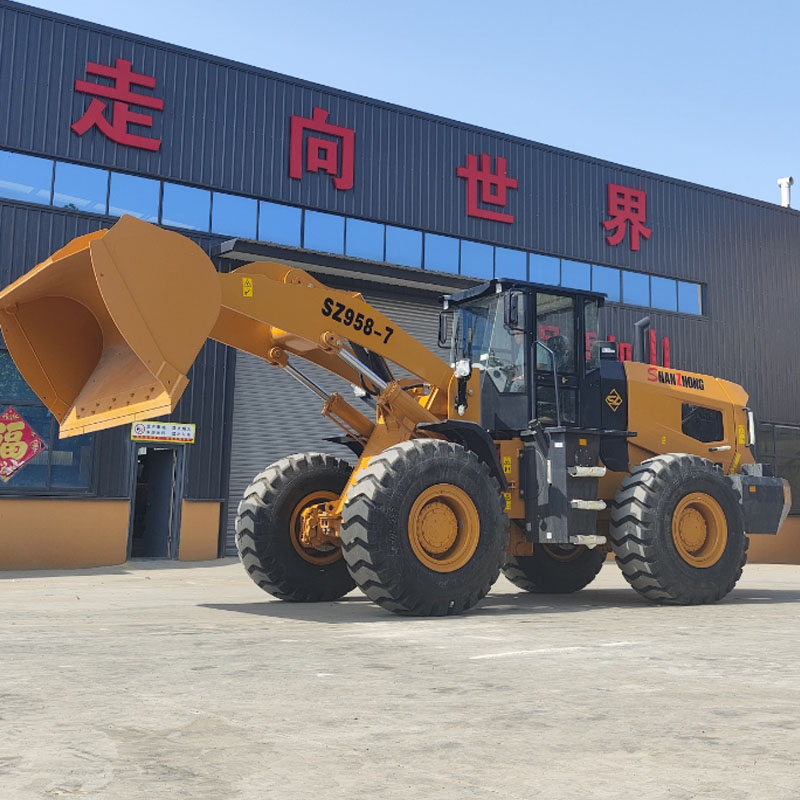

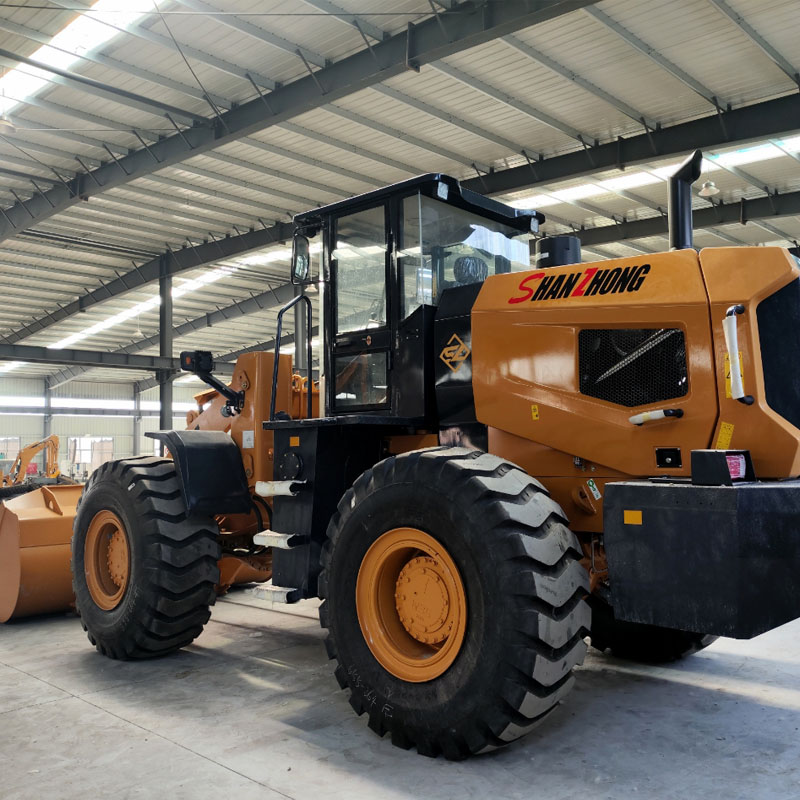

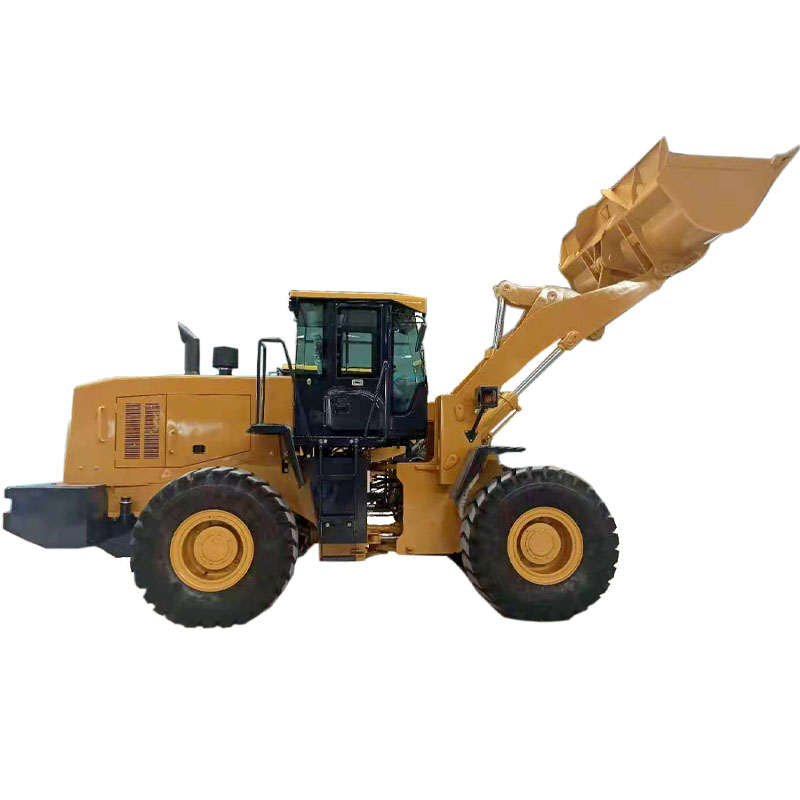

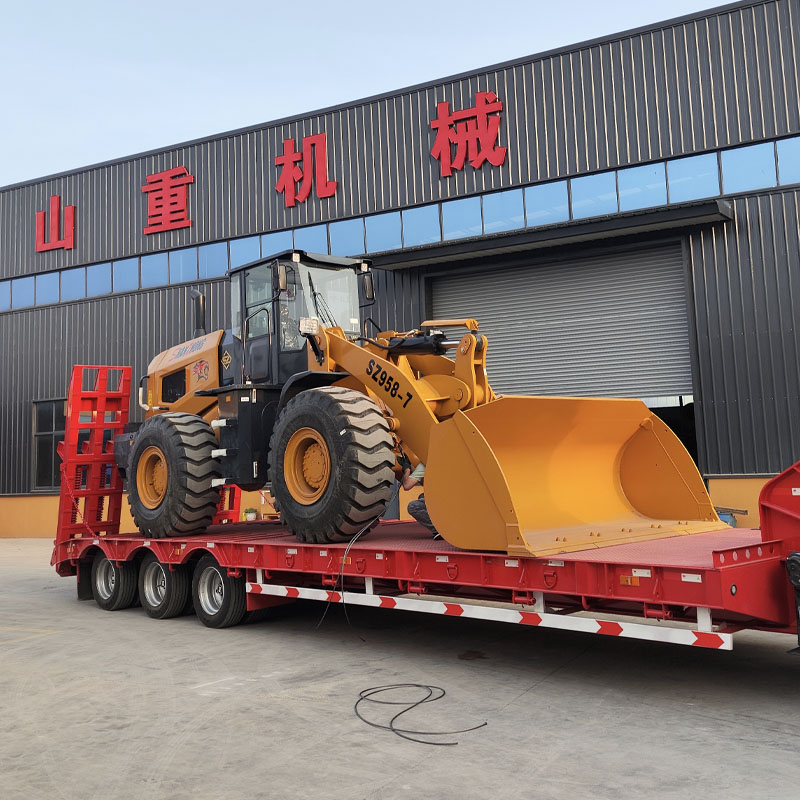

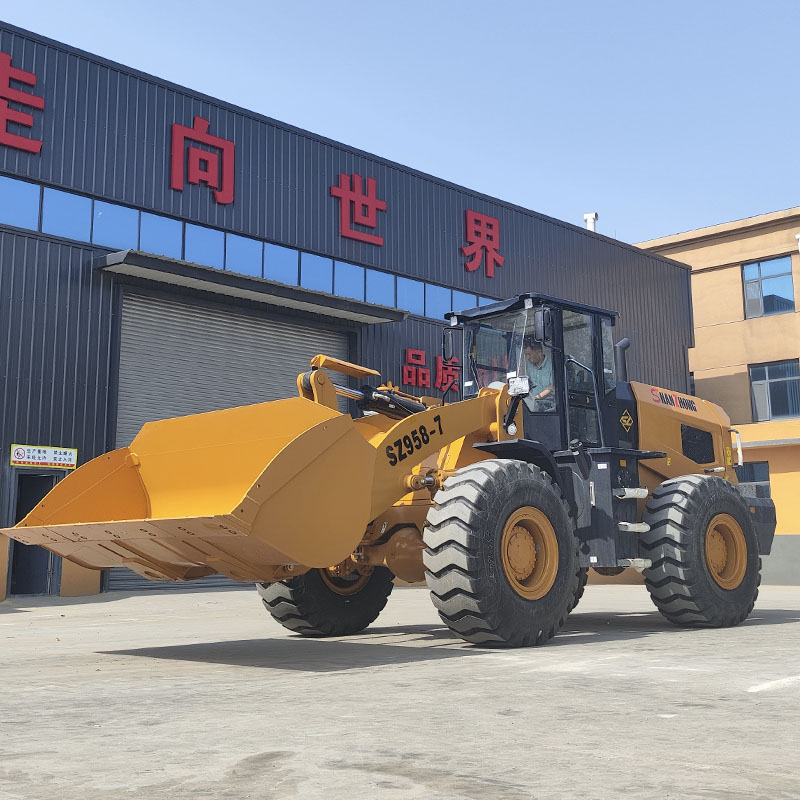

SZ950 wheel loader
5-ton series wheel loader
total weight: 16,700 kg
Rated load: 5000kg
Rated power: 162 kW
Bucket capacity: 3.0m3
Travel speed (forward/backward) 38 km/h
1) The central articulated frame has a small turning radius and good lateral stability, making it easy to work in narrow areas.
2) Humanized design, wide view and comfortable driving.
3) For driving safety, a four-wheel braking system with an oil caliper and gas cap is used; for parking, caliper disc brakes are used.
4) It uses a Weichai Steyr diesel engine, which features high power, large torque reserve, low fuel consumption, low noise, and reliable operation; A two-stage air filter is standard, which is suitable for dusty workplaces.
SZ950 wheel loader
1) The central articulated frame has a small turning radius and good lateral stability, making it easy to work in narrow areas.
2) Humanized design, wide view and comfortable driving.
3) For driving safety, a four-wheel braking system with an oil caliper and gas cap is used; for parking, caliper disc brakes are used.
4) It uses a Weichai Steyr diesel engine, which features high power, large torque reserve, low fuel consumption, low noise and reliable operation; A two-stage air filter is standard, which is suitable for dusty workplaces.
5) It features fully hydraulic steering, gear shifting, and hydraulic control of the work equipment. The entire machine operates smoothly and reliably, with smooth, reliable operation.
6) The dual pump fusion system and coaxial flow amplification system improve the efficiency and cost-effectiveness of operation.
7) Pilot control makes work more flexible and comfortable.

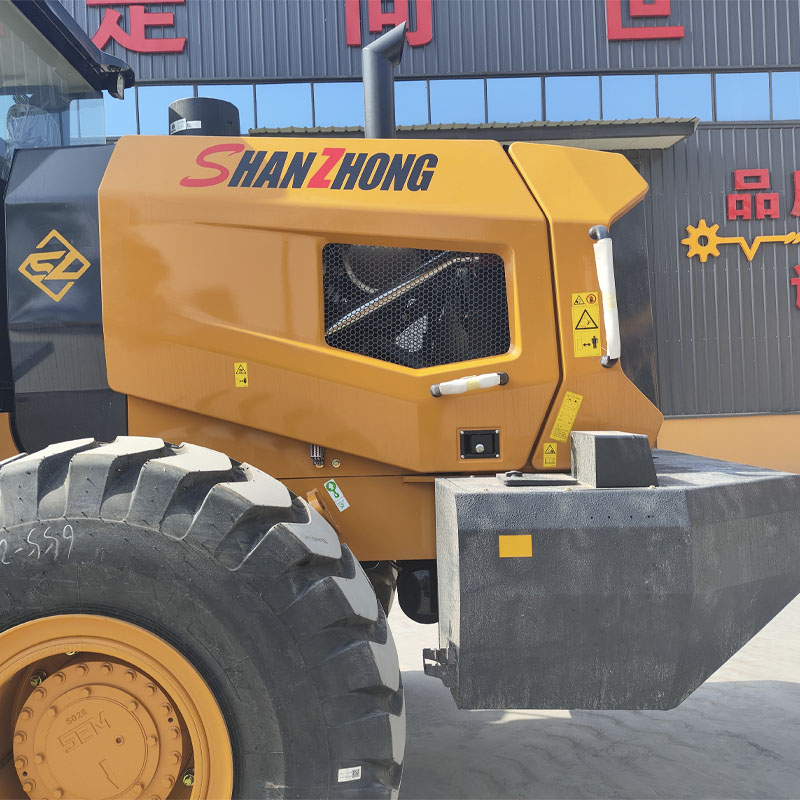

8) Folding engine hood with steel structure large side door, beautiful and elegant, easy to maintain.
9) Custom manufacturing can be provided to meet special construction and tender needs.
Performance |
1 |
rated load |
5000 kg |
2 |
total weight |
16700kg |
|
3 |
Mechanical operating weight |
21500kg |
|
4 |
bucket capacity |
3.0m3 |
|
5 |
maximum traction force |
150kN |
|
6 |
maximum breakout force |
≥160 kN |
|
7 |
maximum ability score |
30° |
|
8 |
maximum unloading height |
3200 mm |
|
9 |
maximum unloading reach |
1200 mm |
|
10 |
overall dimensions (L×W×H) |
7763×3020×3450 mm |
|
11 |
minimum turning radius |
6201 mm |
|
Engine |
12 |
model |
Weichai WP10G220E22 |
13 |
type |
Euro II, in-line 6-cylinder, 4-stroke engine with direct injection. |
|
14 |
NO. cylinder diameter*stroke |
6－126×130 mm |
|
15 |
rated power |
162kw--2200rpm |
|
16 |
maximum torque |
920 Nm |
|
17 |
min. fuel consumption coefficient |
≦215 kWh |
|
Transmission system |
18 |
hydrotransformer |
Wow! |
19 |
gearbox mode |
Shifting under load, normally engaged direct drive |
|
20 |
gears |
2 forward 1 back |
|
21 |
maximum speed |
38 km/h |
|
Drive axles |
22 |
main reducing helix |
Class 1 bevel gear, gearbox |
23 |
deceleration mode |
1st degree planetary gearbox |
|
24 |
Wheelbase (mm) |
2920 mm |
|
25 |
wheel tread |
1400 mm |
|
26 |
Ground clearance |
480 mm |
|
Hydraulic system |
27 |
system operating pressure |
18MPa |
28 |
boom raising time |
5.95±0.2 s |
|
29 |
total time |
10.95±0.5 s |
|
30 |
fuel tank capacity |
265l |
|
31 |
automatic alignment function |
yes |
|
Brake system |
32 |
service brake |
4-wheel air-assisted disc brakes |
33 |
Parking brake |
Hand disc brake |
|
Tire |
34 |
type specification |
23.5-25 |
35 |
front tire pressure |
0.4 MPa |
|
36 |
rear tire pressure |
0.35 MPa |
